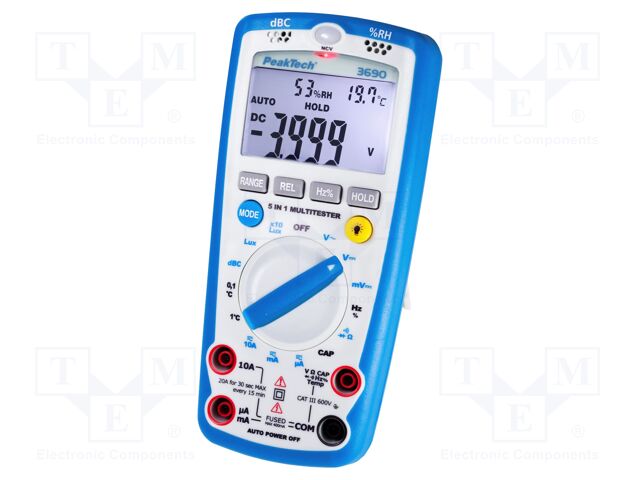

PEAKTECH P 3690 | Digital multimeter; LCD; (4000); VDC: 400mV,4V,40V,400V,600V

PEAKTECH P 3690 | Digital multimeter; LCD; (4000); VDC: 400mV,4V,40V,400V,600

PEAKTECH . P 3690

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPEAKTECH
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Digital Multimeters
CategoryL4Portable digital multimeters
Extra Product NamePEAKTECH P 3690 | Digital multimeter; LCD; (4000); VDC: 400mV,4V,40V,400V,600V
atoms, moq, multiple1
jsonUrlData74d94f25ccf62e1c4151bd63477995e0.
jsonUrlData28196f8c9463aeb63c52d
keywordsPEAKTECH, P 3690, PKT-P3690, Workplace Equipment, Measuring Instruments, Digital Multimeters, Portable digital multimeters
MPNP 3690
qtyInStock4
SKUPKT-P3690
snippetPEAKTECH P 3690 | Digital multimeter; LCD; (4000); VDC: 400mV,4V,40V,400V,600
Type of meterdigital multimeter
MeasurementAC current,
Kind of display usedLCD
Display parameters(4000)
DC voltage measuring range, AC voltage measuring range400mV/
DC voltage measuring accuracy, AC voltage measuring accuracy?(1% + 4 digits)
DC current measuring range, AC current measuring range400?A/
DC current measuring accuracy?(1% + 2 digits)
AC current measuring accuracy, Resistance measuring accuracy?(1,2% + 2 digits)
Resistance measuring range400?/
Capacitance measuring range40nF/
Capacitance measuring accuracy?(3% + 5 digits)
Frequency measuring range5Hz/
Frequency measuring accuracy?(1,2% + 3 digits)
Temperature measuring range-20...1300?C
Temperature measurement accuracy?(3% + 3?C)
Humidity measuring range33...99% RH
Humidity measuring accuracy?3%
Sound level measuring range35...100dB
Sound level measuring accuracy?5dB
Test1.4mA @2.8V
Continuity testacoustic indication,
Conform to the normCAT III 600V
Related items5790D,
Dimensions (W x H x D)78x170x48mm
Measuring range4000lx...40000klx
