Hamilton

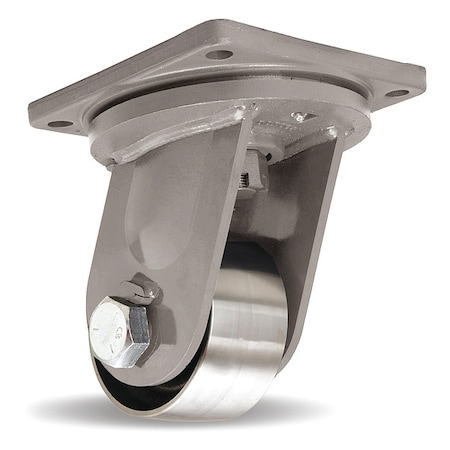

Hamilton . S-MD-63FST-4SL-HCB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA31
UPCNone
UnitOfMeasureEA
Weight71
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width10
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-MD-63FST-4SL-HCB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9074561
tierPrice1857.46
urlhttps://www.zoro.com/hamilton-plate-caster-12000-lb-load-rating-s-md-63fst-4sl-hcb/i/G9074561/
Caster Sub-TypeSwivel
Load Rating12,000 lb
Wheel Dia6 in
Wheel Width, Overall Wheel Width3 in
Wheel TypeFlat-Free
Includes Thread Guards, Includes Mounting Fasteners, Leveling Caster, With Toe Plate, Non-Marking, NSF ListedNo
Wheel Core TypeSolid
SeriesMaxi-Duty
Tread ShapeStandard
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Mounting Holes4
Swivel Radius5 1/2 in
Wheel Bearing Material, Wheel/Tread Material, Caster Frame MaterialSteel
Wheel/Tread Hardness179 BHN
Mounting Height10 in
For Surface TypeConcrete
Frame FinishPowder Coated
Load Rating Range6000 lb and Greater
Mounting Plate Size8 1/2 in x 8 1/2 in
Wheel Core MaterialForged Steel
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Frame Color, Wheel/Tread Color, Core ColorSilver
Caster Brake TypeFace Contact Brake
Includes Spanner Bushing, ESD ConductiveYes
Brake LocationFace
Wheel/Tread Hardness RatingExtra Hard
Outside Bolt Hole Spacing, Inside Bolt Hole Spacing7 in x 7 in
For Axle Dia1 1/4 in
Swivel Lock Type4-Position Directional Lock
Tire StyleTubeless
Frame ConstructionForged
StandardsICWM
Mounting Plate Bolt Hole PatternD
TreadFlat
Swivel Lead2 1/2 in
Swivel ConstructionKingpin
Wheel Bearing TypeTapered Roller
Caster Mounting TypePlate
Mounting Bolt Dia, Mounting Plate Thickness5/8 in
Swivel Bearing Seal TypeOpen
ItemStandard Plate Caster
Swivel Raceway TypeRoller
Operating Temperature Range-40 Degrees to 320 Degrees F
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9074561111 @ $857.46
Grainger55HA3111
