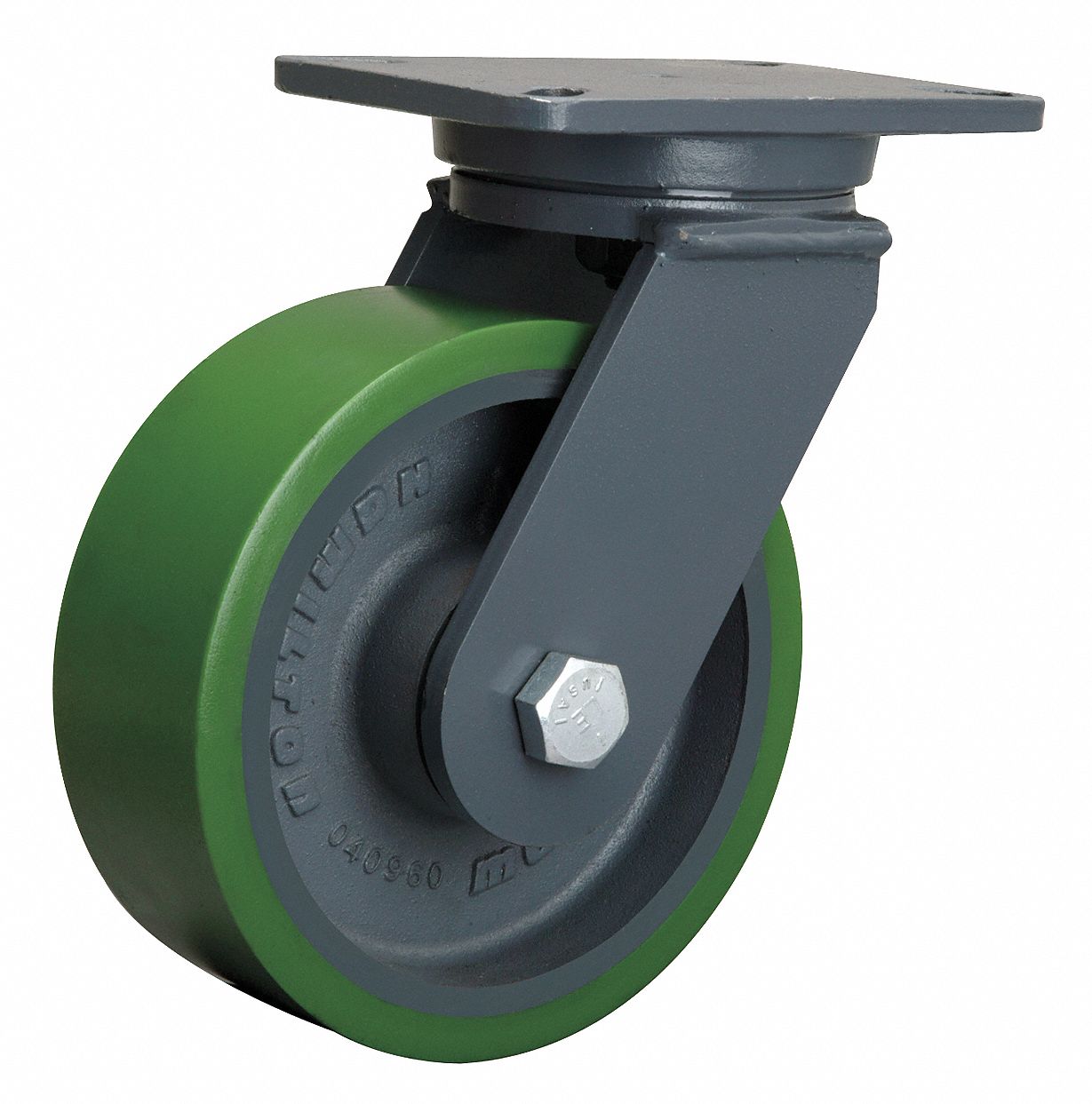

PLTE CASTER,SWVL,POLY,10 IN.,2200 LBS.

GRAINGER APPROVED . S-FM-10DH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRAINGER APPROVED
DimensionUnitinch
Extra Product NamePLTE CASTER,SWVL,POLY,10 IN.,2200 LBS.
UNSPSC31162701
Weight36.35
WeightUnitlbs
diameter, length10.0
height11.5
height_AttribMounting Height
length_AttribWheel Dia.
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-FM-10DH
originalCurrency{'currency': 'CAD', 'tierPrice1': '343.17'}
qtyInStock0
SKUWWG5VH19
tierPrice1249.07484502
width3.0
width_AttribWheel Width
ItemStandard Plate Caster
Swivel ConstructionKingpin
Wheel Dia10 in
Mounting Height11 1/2 in
Wheel/Tread Hardness RatingFirm
Wheel/Tread ColourGreen
Swivel Raceway TypeSingle Ball
Mounting Plate Size4 1/2 in x 6 1/2 in
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Number of Mounting Holes4
Caster Brake TypeNo Brake Included
Caster Frame MaterialSteel
Includes Thread GuardsNo
Core ColourGray
ApplicationAerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
StandardsICWM
Caster Sub-TypeSwivel
Load Rating2200 lb
Wheel Width3 in
Wheel/Tread MaterialPolyurethane
Wheel/Tread Hardness95 Shore A
Wheel Bearing TypeRoller
Mounting Plate Bolt Hole PatternA
Inside Bolt Hole Spacing2-7/16 in x 4-15/16 in
Mounting Bolt Dia1/2 in
Swivel Lock TypeNo Lock Included
Frame FinishEnamel
Tread ShapeStandard
Wheel Core MaterialCast Iron
Non-MarkingYes
Replacement WheelMfr. No. W-1025-D-1
FeaturesFloor Protective
IncludesSpanner Bushing

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWWG5VH19111 @ $249.07
