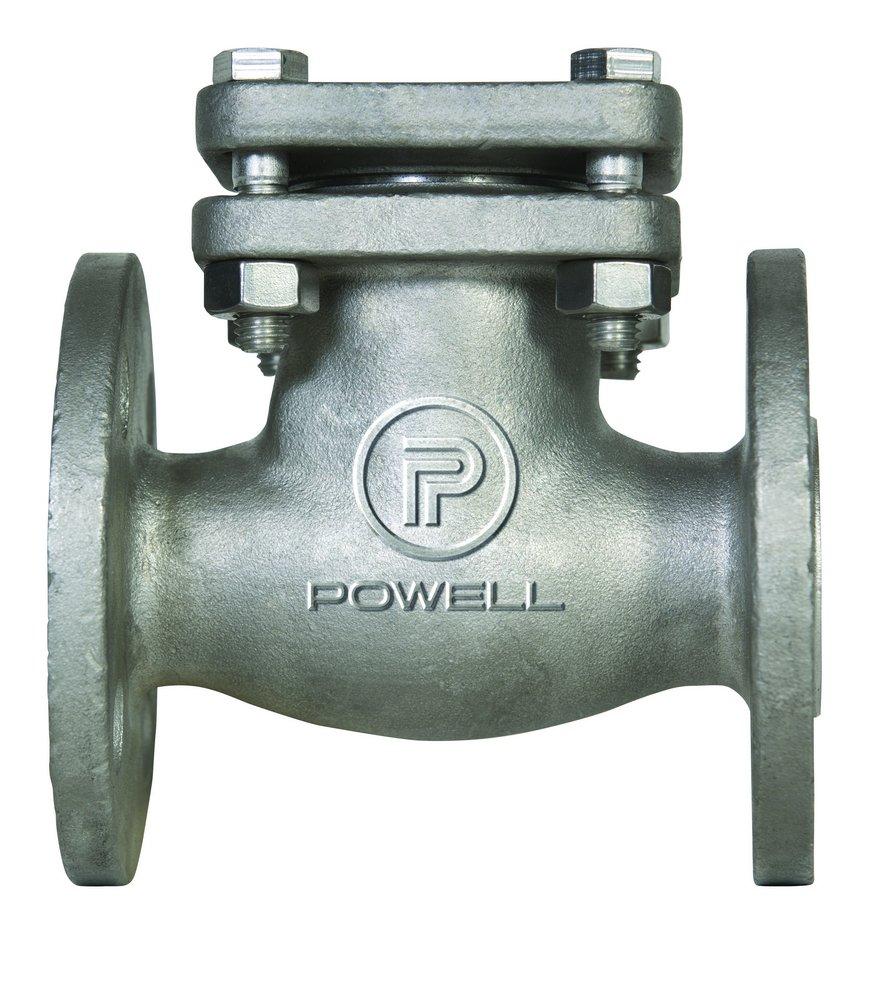

1/2 in. 150# RF FLG CF8M T10 Swing Check Valve PTFE Cover Gasket, API 603, Stainless Steel 316 Body, Trim 10, Bolted Cover
Shop for 1/2 in. 150# RF FLG CF8M T10 Swing Check Valve PTFE Cover Gasket, API 603, Stainless Steel 316 Body, Trim 10, Bolted Cover from William Powell Co At Ferguson. Ferguson is the #1 US plumbing supply company and a top distributor of HVAC parts, waterworks supplies, and MRO products.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | William Powell Co |
|---|---|
| CategoryL1 | Valves |
| CategoryL2 | Check Valves |
| DimensionUnit | inch |
| Extra Product Name | 1/2 in. 150# RF FLG CF8M T10 Swing Check Valve PTFE Cover Gasket, API 603, Stainless Steel 316 Body, Trim 10, Bolted Cover |
| Weight | 3.6 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| length | 4.25 |
| length_Attrib | Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN | 0.5 2342FM0TXXX |
| qtyInStock | -2 |
| qtySource | FieldMap |
| SKU | 379035 |
| tierPrice1 | 359.20 |
| API | API 598, API 603 |
| ASME | ASME B16.10, ASME B16.34, ASME B16.5 |
| ASTM | ASTM A-193 Grade B8, ASTM A-194 Grade 8, ASTM A-276 316, ASTM A-351 Grade CF8M |
| Clean Bagged, NSF Certified, UL Listed | No |
| Collection | Figure 2342 |
| End Connection 1, End Connection 2, End Connections | Flanged |
| Flange Type | Raised Face |
| Length | 4-1/4 in |
| MSS | MSS SP-25, MSS SP-55 |
| Material | Stainless Steel |
| Material Type | 316, A351, CF8M |
| Pressure Class | 150# |
| Recommended Valve Application | Cryogenic, Oxygen |
| Valve Body Material, Valve Disc Material, Valve Seat Material | 316 Stainless Steel |
| Valve Body Style | Swing |
| Valve Bonnet Type | Bolted |
| Valve Port Opening | Standard Port |
| Valve Size | 1/2 in |
| Valve Type | Swing Check Valve |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 379035 | 1 | -2 | 1 | 1 @ $359.20 |
