Tritan

.

Tritan . J1816 OH

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTritan
DimensionUnitinch
GraingerSku35TX32
UPC888569026385
UnitOfMeasureEA
Weight0.14
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height1.5
jsonUrlData924526ffbdad25e5923b
length, width3.3
moq, multiple, tierMinQty11
MPNJ1816 OH
qtyInStock42
qtyInStockOverride-2
SKUG2704777
tierPrice16.69
urlhttps://www.zoro.com/tritan-needle-brg-drawn-cup-bore-1125-in-j1816-oh/i/G2704777/

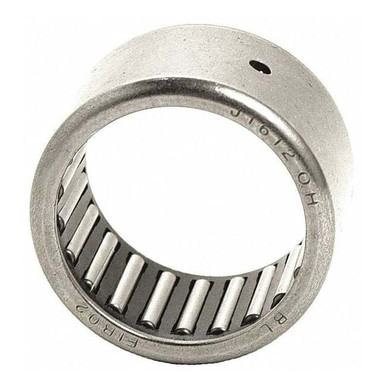

ItemNeedle Roller Bearing
TypeDrawn Cup
Bore Dia (In )1.125 in
Bore Dia (mm)28.575 mm
Outside Dia (In )1.375 in
Outside Dia (mm)34.925 mm
Width (In )1.0 in
Width (mm)25.4 mm
Cage MaterialSteel
Static Load Capacity (Lb )10,420 lb
Dynamic Load Capacity (Lb )5,670 lb
Max RPM10,600 RPM
Static Load Capacity (N)46,360 N
Dynamic Load Capacity (N)25,240 N
Temp Range (F)-5 Degrees to 250 Degrees F
Number of RowsOne
Bearing Industry Number1816
Seal Type, Seal MaterialNot Applicable
Maximum Speed11,000 RPM Oil, 7,400 RPM Grease
Maximum Temperature250 Degrees F
Roller Material Grade, Cage Material Grade, Ring Material GradeANSI 52100
Ring Material, Roller MaterialAlloy Steel
Minimum Temperature-5 Degrees F
ClosureOpen
Lubrication OpeningsOil Hole
Bearing DesignJ
System of MeasurementInch
Lubricant MaterialGrease, Oil
Needle Bearing TypeDrawn Cup Needle Roller Bearing
Compatible Ring Manufacturer Part NumberIR-1416
Overall Width1 in
Static Radial Load Capacity10,800 lbf
Outside Diameter1 3/8 in
Full ComplementNo
Bore Diameter1 1/8 in
Dynamic Radial Load Capacity5,880 lbf
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG270477714211 @ $6.69
simsupply.comZO-G270477715711 @ $14.68
Grainger35TX3211
