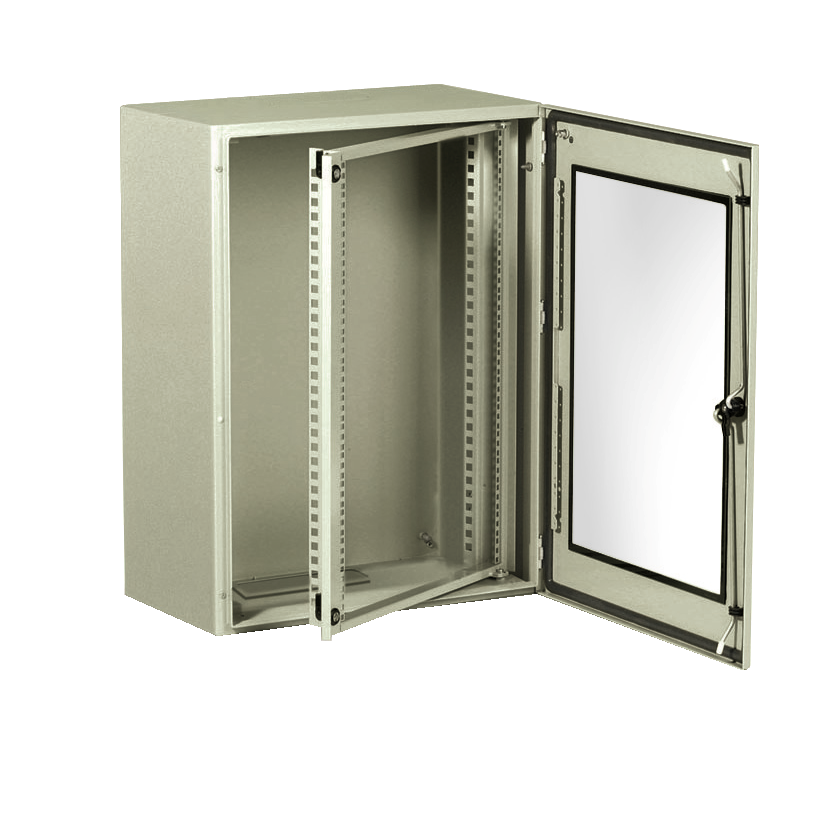

Wall rack VDM 4U swi chass D400 | Mayer Electric

SQUARE D . SQDNSYVDM4U4P

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameWall rack VDM 4U swi chass D400 | Mayer Electric
UPC3606480174506
Weight16.11
WeightUnitkg
Weight_AttribNet Weight
color, Colorenclosure and 19" rack Gray RAL 7035)
depth, length400.0
height300.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Wall-rack-VDM-4U-swi-chass-D400-3606480174506
jsonUrlData266c6693a-36ab-465f-8e43-aeea0056ff4f
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDNSYVDM4U4P
qtyInStock0
tierPrice1588.89
width600.0
width_AttribWidth
Rack Typeswing
Product Destinationelectronics and networks
Body Type1-body
Installation Accessory Typewall-mounting
Product Or Component Typecompact enclosure
Product NameSpacial VDM
Device Composition1 cable gland plate bottom || 2 lock 19" swing rack || 1 body || 1 door with lock || 1 19" swing rack
Enclosure Nominal Height, Height300 mm
Enclosure Nominal Depth, Depth400 mm
Device Applicationelectronic application
Enclosure Nominal Width, Width600 mm
RangeSpacial
Warranty18 months
Accessibility For Operationfront
Removable Partsdoor by hinges || rack by fixing element
Type Of Gland Platestandard
StandardsIEC 62208
Materialenclosure and 19" rack steel
Surface Finishenclosure and 19" rack epoxy-polyester powder
Number Of Units 19"4
Lock Type3 mm double-bar lock
Door TypeGlass
Net Weight16.11 kg
Door Opening Sidereversible 120 ?)
Number Of Doorsfront face 1
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP100104EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
Ik Degree Of ProtectionIK08 IEC 62262
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDNSYVDM4U4P111 @ $588.89
