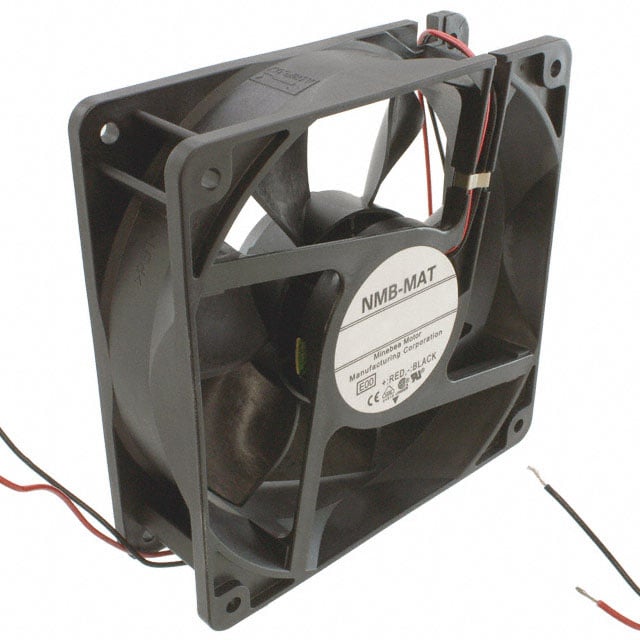

4715KL-05W-B40-E00 NMB Technologies Corporation | Fans, Thermal Management | DigiKey
The page you requested was not found, and we have a fine guess why.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | NMB Technologies Corporation |
|---|---|
| Extra Product Name | 4715KL-05W-B40-E00 NMB Technologies Corporation | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | 4715KL-05W-B40-E00 |
| qtyInStock | 90 |
| SKU | P15278-ND |
| Part Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 119mm L x 119mm H |
| Width | 38.40mm |
| Air Flow | 118.0 CFM (3.30m?/min) |
| Static Pressure | 0.330 in H2O (82.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection | - |
| Noise | 46.5dB |
| RPM | 3200 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158?F (-10 ~ 70?C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.573 lb (259.91 g) |
| Current Rating (Amps) | 0.350A |
| Voltage Range | 10 ~ 27.6VDC |
| Material - Frame, Material - Blade | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 25?C |
| Power (Watts) | 8.4 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| P15278-ND | 1 | 90 | 1 | ||
| Galco | 4715KL-05W-B40-E00 | 1 | 1 | ||
 AmazonTP | B07KCZYKRX | 1 | 1 | 1 @ $24.09 | |
| AmazonUNK | B07KCZYKRX | 1 | -2 | 1 | 1 @ $24.09 |
 Newark | 75T9280 | 1 | 633 | 1 | 1 @ $26.07, 5 @ $24.98, 10 @ $23.89, 25 @ $23.46, 50 @ $23.03, 100 @ $21.57 |
| Digi-Key | 2816049 | 1 | 1 | 1 @ $23.68, 10 @ $21.62, 25 @ $20.80, 50 @ $19.43, 100 @ $17.93, 250 @ $17.65, 500 @ $17.51 |
