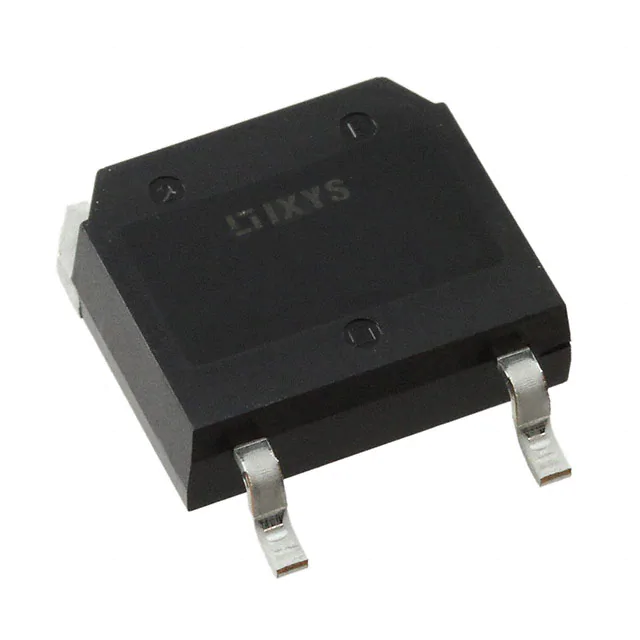

IXYS Corporation . IXFT60N65X2HV
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | IXYS Corporation |
|---|---|
| moq, multiple | 1 |
| MPN, SKU, Manufacturer Part Number | IXFT60N65X2HV |
| qtyInStock | 0 |
| Current - Continuous Drain (Id) @ 25?C | 60A (Tc) |
| Drain to Source Voltage (Vdss) | 650V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 108nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 6300pF @ 25V |
| Manufacturer Standard Lead Time | 19 Weeks |
| Mounting Type | Surface Mount |
| Operating Temperature | -55 |
| Package / Case | TO-268-3, D |
| Packaging | Tube |
| Power Dissipation (Max) | 780W (Tc) |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 30A, 10V |
| RoHS Status | ROHS3 Compliant |
| Series | HiPerFET |
| Standard Package | 30 |
| Supplier Device Package | TO-268HV |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 5V @ 4mA |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| iodParts | IXFT60N65X2HV | 1 | 1 |
