Siglent SDM3055 TRMS 5.5 Benchtop Digital Multimeter | Transcat

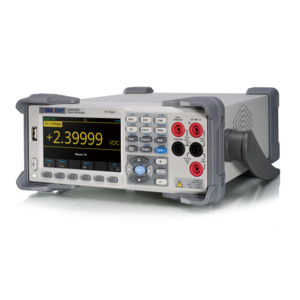

SIGLENT SDM3055 is a 5 ½ digit digital multimeter that features many math and statistical functions. It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT LCD screen, and is designed for users who need high performance, multiple functions, and automatic measurements. Features Up to 150 rdgs/s measurement speed True RMS AC Voltage and AC Current measuring 1 GB NAND flash size, Mass storage configuration files and data files With easy, convenient, and flexible PC software: EasyDDM 4.3 inch (480 * 272) true color TFT-LCD large screen display, Technical Specifications DC voltage 200 mV, 2 V, 20 V, 200 V, 1000 V DC current 200 μA, 2 mA, 20 mA, 200 mA, 2 A, 10 A AC voltage True RMS, 200 mV, 2 V, 20 V, 200 V, 750 V AC current True RMS, 20 mA , 200 mA, 2 A, 10 A 2,4-wire resistance 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 10 MΩ, 100 MΩ Capacitance 2 nF, 20 nF, 200 nF, 2 μF, 20 μF, 200 μF, 10000 μF Connectivity Test Range fixed 2 kΩ Diode test range fixed 2 V Frequency measurement 20 Hz ~ 1 MHz Period measurement 1 μs ~ 0.05 s Temperature measurement thermocouple, RTD temperature sensor Maximum input voltage 1000 V Interface USB Device, USB Host Package Contents 1. SIGLENT SDM3055 digital multimeter — 1 pc. 2. EU power cord — 1 pc. 3. Crocodile clip — 1 pc. 4. USB Type B cable — 1 pc. Package content and appearance may differ from those presented on the website. Please ask the sales specialist before purchasing.
