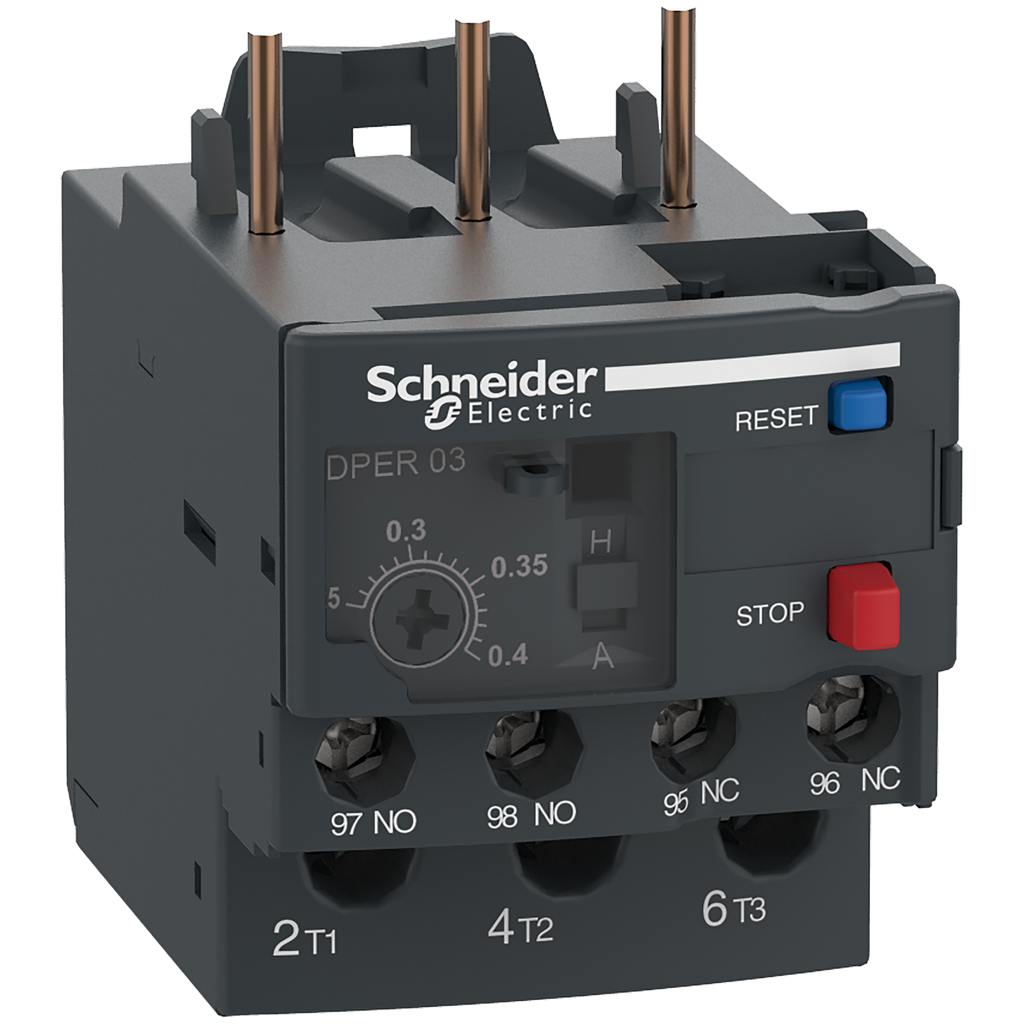

As an Amazon Associate, we earn from qualifying purchases. Home » SQUARE D » SQDDPER03 Easy TeSys DPER thermal overload relay, 0.25?0.40 A, class 10 | Mayer Electric SQUARE D . SQDDPER03 Gallery Attributes Brand name, Manufacturer name, ManufacturerSQUARE D DimensionUnitmm Extra Product NameEasy TeSys DPER thermal overload relay, 0.25?0.40 A, class 10 | Mayer Electric UPC3606485332543 Weight0.124 WeightUnitkg Weight_AttribNet Weight depth, length70.0 height66.0 height_AttribHeight jsonUrlData/Product/SQUARE-D-Easy-TeSys-DPER-thermal-overload-relay-0-250-40-A-class-10-3606485332543 jsonUrlData23817e642-7ea0-40c6-8b0e-ade40063ecdd length_AttribDepth moq, multiple, tierMinQty11 MPN, SKUSQDDPER03 qtyInStock0 tierPrice121.07 width45.0 width_AttribWidth Thermal Protection Adjustment Range0.25-0.40 A Relay Applicationoverload protection Product Or Component Typethermal overload relay Product NameEasy TeSys DPER Thermal Overload Classclass 10 IEC 60947-4-1 RangeEasy TeSys [Ui] Rated Insulation Voltagepower circuit 600 V cUL || power circuit 690 V IEC 60947-4-1 Product Compatibilitycontactor DPE09-38 Device Short NameDPER Network Frequency0...400 Hz Height66 mm [Ith] Conventional Free Air Thermal Current5 A signalling circuit Auxiliary Contact Composition1 NO + 1 NC Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0 [Ue] Rated Operational Voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1 Network TypeDC || AC Dielectric Strength1.89 kV 50 Hz IEC 60947-1 Net Weight0.124 kg Permissible Current3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1 Control TypeRed push-button stop || Blue push-button reset Mounting Supportseparate, with specific accessories || under contactor [Uimp] Rated Impulse Withstand Voltage6 kV Width45 mm Depth70 mm Rohs Exemption Information, Mercury FreeYes Environmental DisclosureENVPEP080206EN Sustainable Offer StatusGreen Premium product Reach RegulationReference contains Substances of Very High Concern above the threshold California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information. Circularity ProfileENVEOLI0802006 Eu Rohs DirectiveCompliant Product CertificationscUL StandardsEN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || cUL Ambient Air Temperature For Operation-20-60 ?C without derating IEC 60947-4-1 Ip Degree Of ProtectionIP20 conforming to IEC 60529 Ambient Air Temperature For Storage-60-70 ?C Protective TreatmentTH IEC 60068 Temperature Compensation-20-60 ?C Distributor offers SellerSKUMOQIn stockMultiplePrices mayerelectric.comSQDDPER03111 @ $21.07
