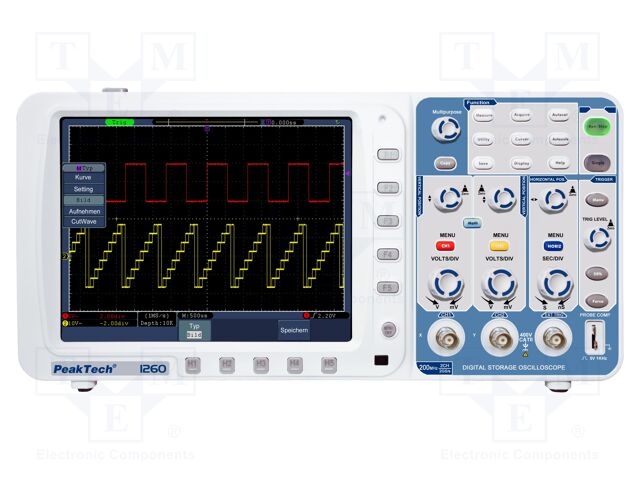

PEAKTECH P 1260 | Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 10Mpts; LCD TFT 8"

PEAKTECH P 1260 | Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 10Mpts; LCD TFT 8

PEAKTECH . P 1260

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPEAKTECH
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Oscilloscopes and Scopemeters
CategoryL4Digital Oscilloscopes
DimensionUnitm
Extra Product NamePEAKTECH P 1260 | Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 10Mpts; LCD TFT 8"
atoms, moq, multiple1
jsonUrlData69d403c3da69a772e31109f2fdf3e25e.
jsonUrlData2a69692aa4eaffb81a9c0
keywordsPEAKTECH, P 1260, PKT-P1260, Workplace Equipment, Measuring Instruments, Oscilloscopes and Scopemeters, Digital Oscilloscopes
length10.0
length_AttribMemory record length
MPNP 1260
qtyInStock0
SKUPKT-P1260
snippetPEAKTECH P 1260 | Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 10Mpts; LCD TFT 8
Type of oscilloscopedigital
Number of channels2
Band200MHz
Sampling1Gsps
Memory record length10Mpts
Kind of display usedLCD TFT 8"
Trigger modesautomatic,
Triggerfalling-edge,
Trigger sourceCH1,
Time base1n...100s/div
Max input voltage400V
Vertical resolution8bit
Input couplingAC, DC, GND
Trigger couplingAC,
Horizontal accuracy?3%
Rise time?1.7ns
Input impedance1M?/10pF
Input sensitivity2mV/div...10V/div
Plug variantEU
Power consumption18W
Operating temperature0...40?C
Body dimensions348x170x78mm
Related itemsPKT-AKKU3
Softwareincluded
Display resolution800x600
