IXFK64N50Q3 IXYS | Discrete Semiconductor Products | DigiKey

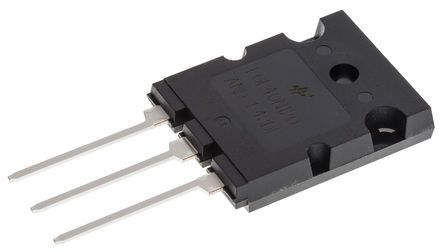

IXYS IXFK64N50Q3 | Transistor: N-MOSFET; unipolar; 500V; 64A; 1000W; TO26
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXFK64N50Q3 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple, tierMinQty1 | 1 |
| MPN | IXFK64N50Q3 |
| qtyInStock | 0 |
| SKU | IXFK64N50Q3-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierMinQty6 | 1000 |
| tierMinQty7 | 2500 |
| tierMinQty8 | 5000 |
| tierPrice1 | 20.16000 |
| tierPrice2 | 18.52800 |
| tierPrice3 | 17.76000 |
| tierPrice4 | 15.36000 |
| tierPrice5 | 13.92000 |
| tierPrice6 | 12.76800 |
| tierPrice7 | 12.00000 |
| tierPrice8 | 11.52000 |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 64A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 32A, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 4mA |
| Vgs (Max) | ?30V |
| FET Feature | - |
| Power Dissipation (Max) | 1000W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264AA (IXFK) |
| Package / Case | TO-264-3, TO-264AA |
| Drain to Source Voltage (Vdss) | 500 V |
| Gate Charge (Qg) (Max) @ Vgs | 145 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6950 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXFK64N50Q3-ND | 1 | 1 | 1 @ $20.16, 10 @ $18.53, 25 @ $17.76, 100 @ $15.36, 500 @ $13.92, 1000 @ $12.77, 2500 @ $12.00, 5000 @ $11.52 | |
| 168-4706 | 25 | 25 | 25 @ $16.98 | ||
| Future Electronics | 8066449 | 25 | 25 | 25 @ $14.08, 50 @ $13.64 | |
 swatee.com | IXFK64N50Q3 | 1 | 11 | 1 | 1 @ $43.25 |
| IXFK64N50Q3 | 1 | 25 | 1 | 1 @ $27.55, 3 @ $24.38, 10 @ $21.85, 25 @ $20.37 | |
| Digi-Key | 2773868 | 500 | 500 | 1 @ $25.78, 10 @ $23.78, 100 @ $20.30, 500 @ $18.43 | |
| RS Delivers | 801-1424 | 1 | 1 | ||
| RS Delivers | 801-1424P | 1 | 1 |
