Maxtron . MXTR-TG-5130

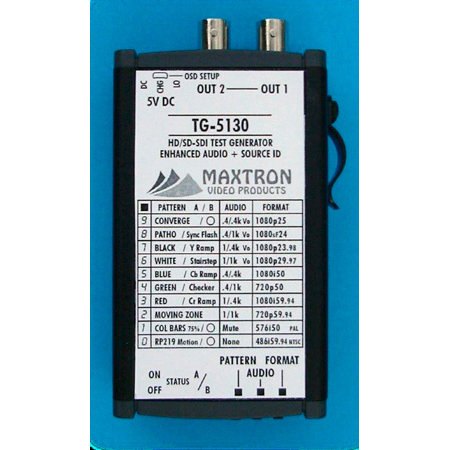

The tg513 is a full featured multipattern multiformat smpte 259m292m sdhdsdi test signal generator with embedded 16channel voice ids audio tones and osd The tg513 expands upon the maxtron tg512 with more control over the embedded audio and the addition of oneline of up to 2 characters of text onscreen Embedded voice tags repeat the channel id every 15 seconds leaving no doubts or confusion about which audio channel is being monitored A third thumbwheel is added to select various audio modes and tone pairs including both silent and mute Both the us 2dbfs and european 18dbfs reference levels are supported via internal jumper The pattern lineup for the tg513 includes patterns specifically designed for the emerging 3d video applications and cr and cb ramps Others patterns include the moving zoneplate which is used to expose video compression and scaling artifacts and the pathological pattern which is used to stress the SDI receiver plls in the signal path There is a traveling wizard that moves in a pingpong fashion about the screen to help reveal dropped or repeated fieldsframes and frozen video in frame stores and mpeg encoders Also included is a proprietary av sync video flash pattern with coincident gated audio designed to permit measuring the exact system audiovideo delay Rugged and durable the tg513 includes internal lithiumion battery and universal ac adapter The battery can charged from the ac adapter or a microb USB cable The housing is a mechanically rigid extruded aluminum box with laser cut openings for the io Pattern format and audio mode selects use pushwheels which are not prone to being accidently changed and always show the exact status of the generator Features. 2 Smpte 259m292m compliment outputs. 1 Patterns including 4pixel square checkerboard for 3d applications. Circle overlay onoff. 2 Sd formats and 8 HD formats. Full 12bit pattern generation. 16channel embedded audio with voicing various tone pairs silent and mute. Designed for portable or bench a
