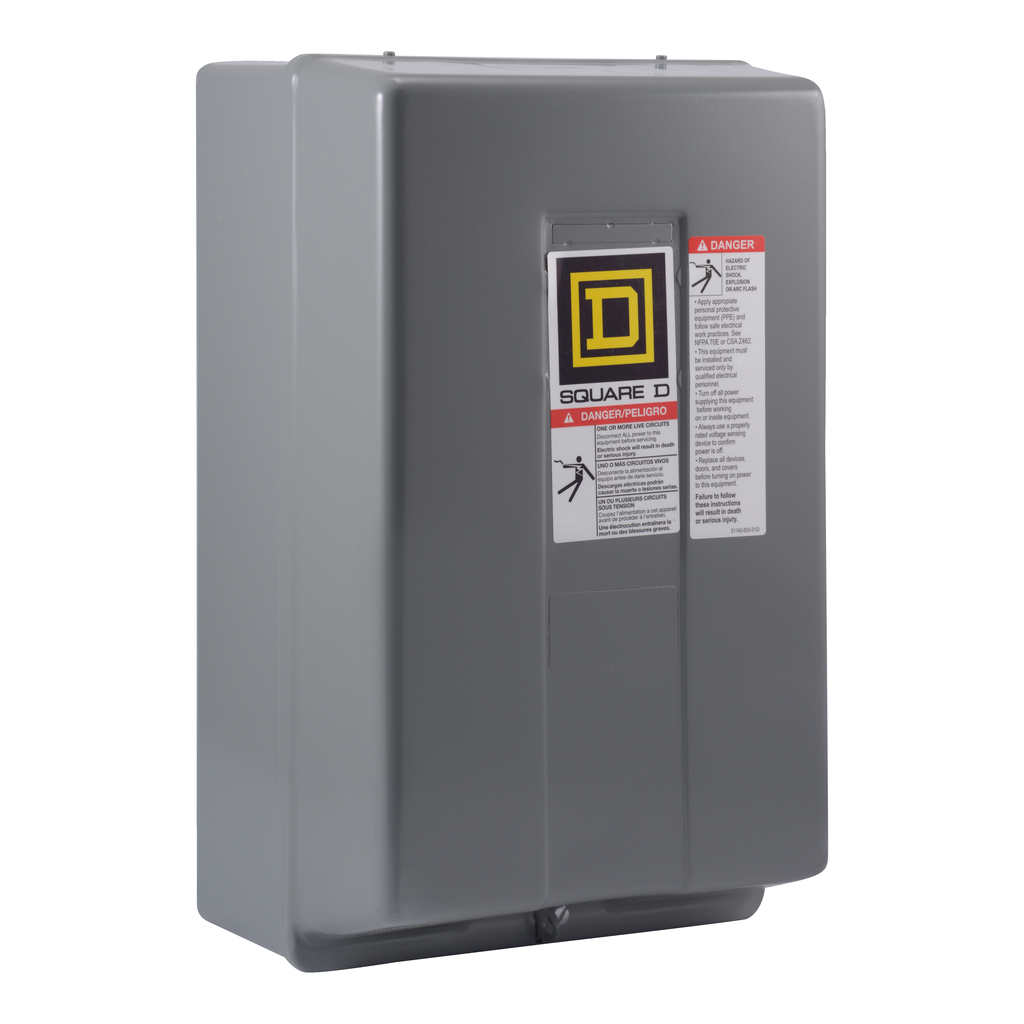

Contactor, Type L, multipole lighting, mechanically held, 30A, 8 pole, 600 V, 110/120 VAC 50/60 Hz coil, NEMA 1 | Mayer Electric

Shop SQUARE D at Mayer. 8903LX mechanically held lighting contactor, 8 P, 8 NO, 30 A, 600 V, 110/120 V 50/60 Hz coil, NEMA 1

Mayer Electric Supply . 8903LXG80V02

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameContactor, Type L, multipole lighting, mechanically held, 30A, 8 pole, 600 V, 110/120 VAC 50/60 Hz coil, NEMA 1 | Mayer Electric
UPC785901057420
depth, length153.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-8903LX-mechanically-held-lighting-contactor-8-P-8-NO-30-A-600-V-110-120-V-50-60-Hz-coil-NEMA-1-785901057420
jsonUrlData21217bc75-5d17-419a-b357-abb200c9c23e
keywordsSQUARE D, Mayer SQUARE D, 785901057420, 8903LXG80V02
length_AttribDepth
moq, multiple, tierMinQty11
MPN8903LXG80V02
qtyInStock0
SKUSQD8903LXG80V02
snippetShop SQUARE D at Mayer. 8903LX mechanically held lighting contactor, 8 P, 8 NO, 30 A, 600 V, 110/120 V 50/60 Hz coil, NEMA 1
tierPrice11252.35
width198.0
width_AttribWidth
Product CertificationsUL Listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Warranty18 months
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1407018EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileN/A
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free plastic parts product
Height322 mm
Control Typeno control units
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Inrush Power In Va180-180 VA 60 Hz || 170-170 VA 50 Hz || 25-25 VA 50/60 Hz
Additional Included Devicenone
Local Signallingno indicator
Electrical Connectionscrew-clamp terminals
Width198 mm
Depth153 mm
Line Rated Current20-20 A tungsten || 30-30 A fluorescent
Poles Description8P 8 NO
Range Of Product8903LX
Product Or Component TypeMechanically Held Lighting Contactor
Control Circuitseparate control circuit

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD8903LXG80V02111 @ $1252.35
