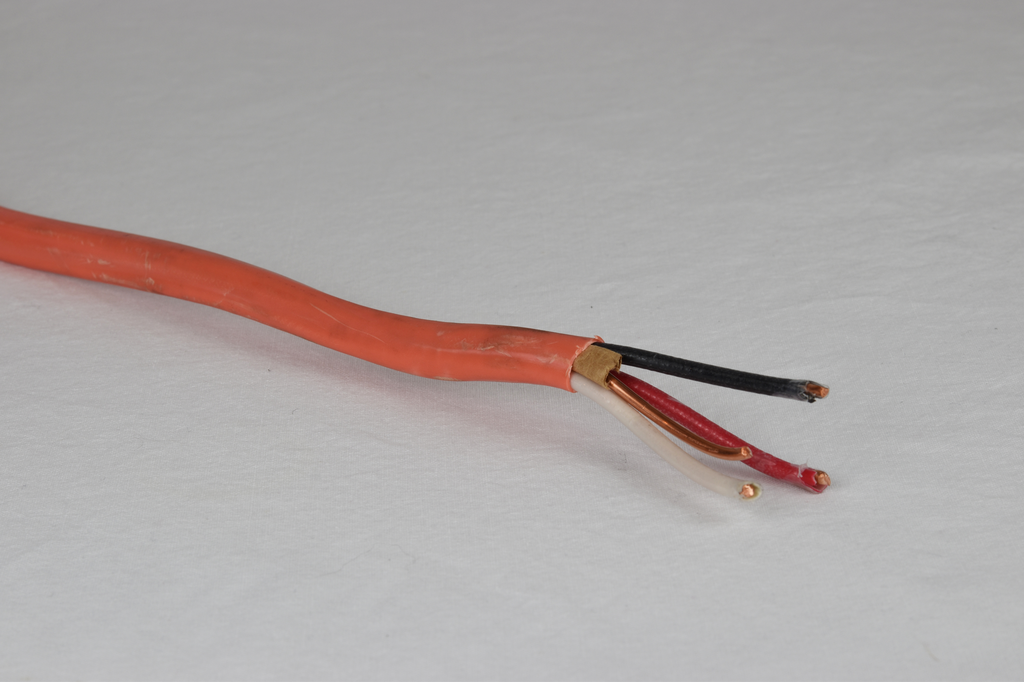

NM-B - 10 AWG - 3 Conductor - Copper With Ground - 250' Coil | Mayer Electric

MAYER NON METALLIC WIRE . B08121

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMAYER NON METALLIC WIRE
DimensionUnitfoot
Extra Product NameNM-B - 10 AWG - 3 Conductor - Copper With Ground - 250' Coil | Mayer Electric
UPC980100163600
Weight, Total Weight (kg/km)246
WeightUnitkg
Weight_AttribTotal Weight (kg/km)
jsonUrlData/Product/MAYER-NON-METALLIC-WIRE-RX-10-3-CU-W-GG-TYP-NM-B-250CL-980100163600
jsonUrlData2f58a997f-2182-4e26-ab98-abb200c7ece9
length250.0
length_AttribLength
moq, multiple, tierMinQty11
MPNB08121
qtyInStock1500
SKUNMW103WG
tierPrice11.3789
Color-coded2 conductor - Black, White; 3 conductor - Black, White, Red
Number of Wires, StrandingSolid
Insulation Thickness (in)0.02
Insulation Thickness (mm)0.51
Insulation ColorOrange
Jacket Thickness (in)0.004
Jacket Thickness (mm)0.1
Nominal Cable O D (in)0.43
Nominal Cable O D (mm)10.92
Copper Weight (lbs/1000 FT)127
Copper Weight (kg/km)189
Total Weight (lbs/1000 FT)165
Ampacity30
MaterialCopper With Ground
Size10 AWG - 3 Conductor
Length250'
Conductor MaterialCopper
Insulation MaterialPVC
Wet Location Use, Direct BurialNo
GroundedYes
Voltage Rating600 V

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comNMW103WG1150011 @ $1.38
