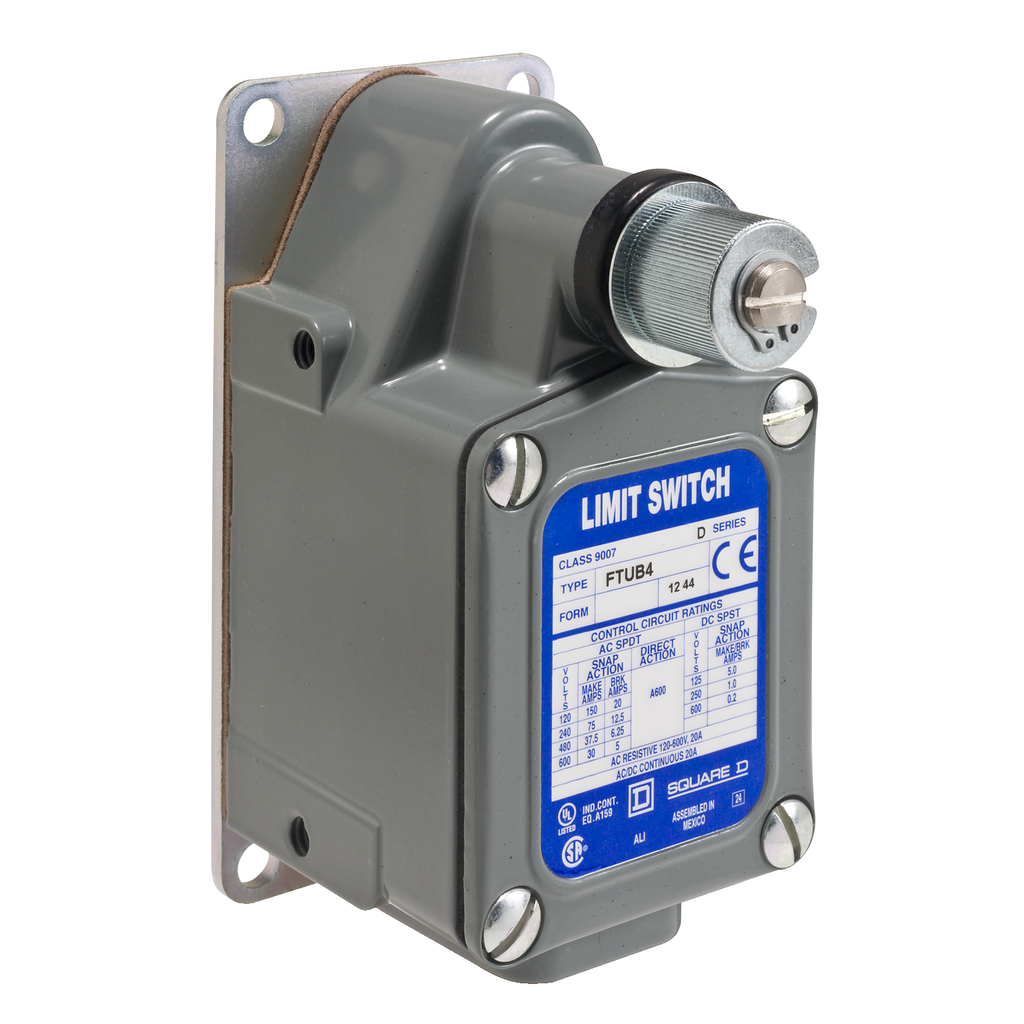

Limit switch, 9007, 9007FT foundry universal, maintained, CW+CCW, 1/2" NPT | Mayer Electric

Mayer Electric Supply . 9007FTUB3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameLimit switch, 9007, 9007FT foundry universal, maintained, CW+CCW, 1/2" NPT | Mayer Electric
UPC785901702450
Weight2.5
WeightUnitlbs
Weight_AttribNet Weight
depth, length3.41
height9.32
height_AttribHeight
jsonUrlData/Product/SQUARE-D-9007FT-foundry-limit-switch-universal-maintained-CWCCW-1-2-NPT-785901702450
jsonUrlData2b4b9f5c8-24bb-4a5c-8a83-abd2006180fe
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity, Number Of Poles1
MPN9007FTUB3
qtyInStock0
SKUSQD9007FTUB3
tierPrice1667.07
width2.25
width_AttribWidth
Series Namesevere duty foundry
Body Typefixed
Range Of Product9007
Product Or Component Typelimit switch
Device Applicationuniversal foundry switch
Device Short Name9007T/FT
Head Typerotary head
Warranty18 months
Switch ActuationCW and CCW || from left or right
Maximum Displacement Angle81 ?
Contacts Usagemaintained
Height4.66-4.66 in
Movement Of Operating Headrotary
Base Plate Stylestyle B
Terminals Description Iso N?1B (right side contact) || A (left side contact)
Type Of Approachlateral approach
Short-Circuit Protection20 A Bussmann class CC KTK-R-21 fuse non-time delay
[Ui] Rated Insulation Voltage600 V 3)IEC 609470-1 || 600 V 3)UL 508 || 600 V 3)CSA C22.2 No 14
Positive Openingwithout
Tripping Angle7 ?
Contact Operationsnap action
Fixing Modeby the body
Contacts Materialsilver flashed copper
Maximum Actuation Speed130 ft/min with 30? cam angle, levers only || 90 ft/min with 45? cam angle, levers only
Type Of Operatorspring return without operating lever
Body Materialcast zinc
[Ithe] Conventional Enclosed Thermal Current20 A
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Contact FormForm Z
Switch FunctionSPDT-DB
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC for 1 minute CE || 2.2 kV AC for 1 minute UL || 2.64 kV AC for 1 minute CSA
Width2.25 in
Depth3.41 in
Minimum Torque For Tripping12 lbf.in
Net Weight2.5 lb(US)
Repeat Accuracy+/- 0.004 in linear travel of cam on 1.5 in lever arm
Contact Sequence Number3
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-10-185 ?F
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Electrical Shock Protection Classclass 0 IEC 61140
Shock Resistance30 gn 9 ms IEC 60068-2-27
Vibration Resistance10 gn 10-55 Hz)IEC 60068-2-6
Protective Treatmentcorrosion resistant gray paint
Ip Degree Of ProtectionIP67 conforming to IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007FTUB3111 @ $667.07
