| Brand name, Manufacturer name, Manufacturer | Mayer Electric Supply |
|---|
| DimensionUnit | mm |
|---|

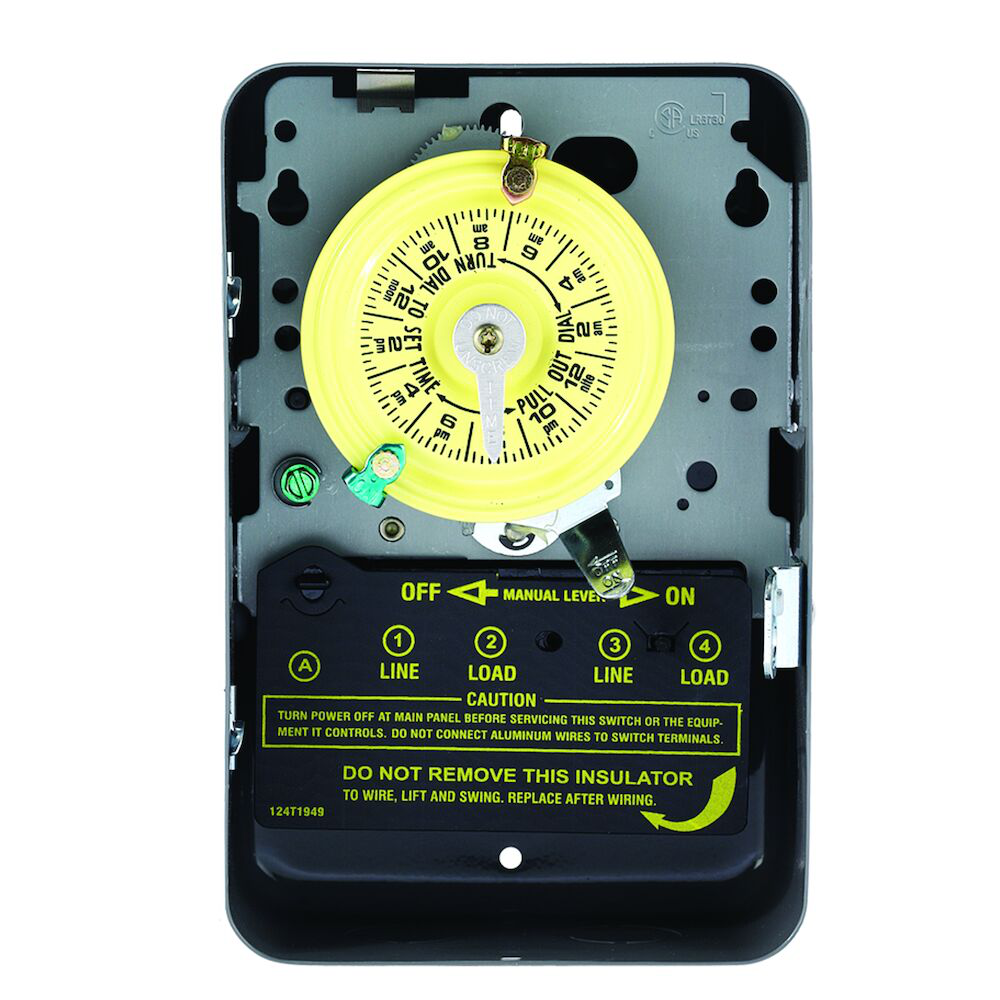

| Extra Product Name | 24-Hour Mechanical Time Switch, 208-277 VAC, 60Hz, DPST, Indoor Metal Enclosure, 1 Hour Interval | Mayer Electric |
|---|
| UPC | 078275000025 |
|---|
| countryOfOrigin, Country of Origin | Mexico |
|---|
| height | 7.875 |
|---|
| height_Attrib | Product Height |
|---|
| jsonUrlData | /Product/INTERMATIC-INT-MAT-T104-DPST-40a-208-277v-Time-Switch-Type-1-Steel-078275000025 |
|---|
| jsonUrlData2 | e0e341a4-2dd8-408e-a6cd-abb200c8efa2 |
|---|
| length | 3.4375 |
|---|
| length_Attrib | Product Depth |
|---|
| moq, multiple, tierMinQty1, Number Of Circuits | 1 |
|---|
| MPN | T104 |
|---|
| qtyInStock | 0 |
|---|
| SKU | INTT104 |
|---|
| tierPrice1 | 101.21 |
|---|
| width | 5.125 |
|---|
| width_Attrib | Product Width |
|---|
| Product Height | 7 7/8 in; 200 mm |
|---|
| Product Width | 5 1/8 in; 130.2 mm |
|---|
| Product Depth | 3 7/16 in; 87.3 mm |
|---|
| Warranty Period | 1-Year limited |
|---|
| Solutions | Machinery & Pumps; Panel Integrators |
|---|
| Packaging Applications | Indoor/Outdoor Lighting; Signs; Filters; Electric Fences; Fans; Conveyors; Pool Heaters; Blowers; Pumps |
|---|
| Minimum On Off Time | 1 hour |
|---|
| Maximum On Off Operations | 12 |
|---|
| Skipper Wheel Operation Mode | Not Included |
|---|
| Timing Interval | 1 hr |
|---|
| UL Certification | cULus |
|---|
| CSA Certification | cCSAus |
|---|
| Other Certifications | LED |
|---|
| Operation Mode | 24 hour |
|---|
| UL Cerfication File Number | UL917 |
|---|
| Applications | Timing/Scheduling ON/OFF; Indoor Lighting Control |
|---|
| Application Compatibilities | LED; HID |
|---|
| Wire Size Min | #14 AWG |
|---|
| Wiring Option | Terminals |
|---|
| Input Voltage Ranges | 208-277 VAC, 60 Hz |
|---|
| Wire Size Max | #8 AWG |
|---|
| Enclosure Type | Indoor type 1 metal |
|---|
| Operating Temperature Min | -40?C |
|---|
| Operating Temperature Max | 130?C |
|---|
| Switch Type | DPST |
|---|
| Lifecycle | Production |
|---|
| Power Consumption Max W | 3 W |
|---|
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-277 VAC, 60 Hz |
|---|
| Unit Carton Description | EA-Each |
|---|
| Number Of Trippers Included | 1 ON/1 OFF |
|---|
| Has Manual Override CVL | Yes |
|---|
| Market | Commercial; Industrial |
|---|
| Units Per Pallet | 288 |
|---|
| Pilot Duty Load Ratings | 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz |
|---|
| Electronic Ballast Load Ratings | 16 A, 120 VAC; 16 A, 208 VAC; 16 A, 240 VAC; 16 A, 277 VAC |
|---|
| Electronic Ballast Load Ratings Ranges | 16 A, 120-277 VAC |
|---|
| Tungsten Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz |
|---|
| Tungsten Load Ratings Ranges, Inductive Load Ratings Ranges | 40 A, 120-277 VAC, 60 Hz |
|---|
| Resistive Load Ratings | 40 A, 480 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz; 40 A, 347 VAC, 60 Hz |
|---|
| Resistive Load Ratings Ranges | 40 A, 120-480 VAC, 60 Hz |
|---|
| Inductive Load Ratings | 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
|---|
| Motor Load Ratings | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
|---|
| Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
|---|
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
|---|
