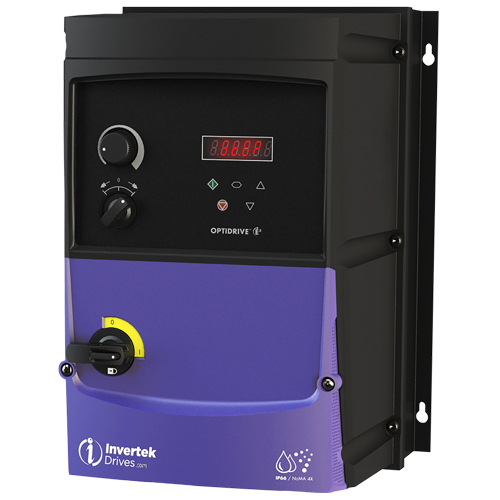

Invertek ODE-3-220070-3F4B 1.5kW 2Hp 7A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

Shop Invertek ODE-3-220070-3F4B and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.

Invertek . ODE-3-220070-3F4B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODE-3-220070-3F4B 1.5kW 2Hp 7A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD
Voltage, Input voltage200 / 240V
Weight4.2
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length, Width (in)7.4
height10.1
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODE-3-220070-3F4B
qtyInStock0
SKU6092733
snippetShop Invertek ODE-3-220070-3F4B and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
tierPrice1614.40
width9.251968503937007
width_AttribPackaged dimensions width
Frame, Drive dimensions size2
Height10.1 in
Depth7.4 in
Rated power1.5 kW/2 HP
Phase, Input phases3
Supply fuse or MCB (type B)16 A
Packaged dimensions depth375 mm (14.76 in)
Supply current continuous8.9 A
Drive dimensions weight3.5 kg (7.72 lbs)
Max motor cable size, Max supply cable size8 mm? (0.01 in?)
Brake transistorInternal brake transistor
Supply voltage200-240 V
Output current7 A
Drive dimensions fixings4 x M4
Drive dimensions depth182 mm (7.17 in)
Packaged dimensions weight4.2 kg (9.26 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height257 mm (10.12 in)
EMC filterInternal EMC filter
DisplayLED
Packaged dimensions height215 mm (8.46 in)
Motor output rating1.5 kW (2 HP)
Drive dimensions width188 mm (7.4 in)
EnclosureIP66 outdoor switched
Packaged dimensions width235 mm (9.25 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092733111 @ $614.40
driveswarehouse.comODE-3-220070-3F4B1-211 @ $614.40
