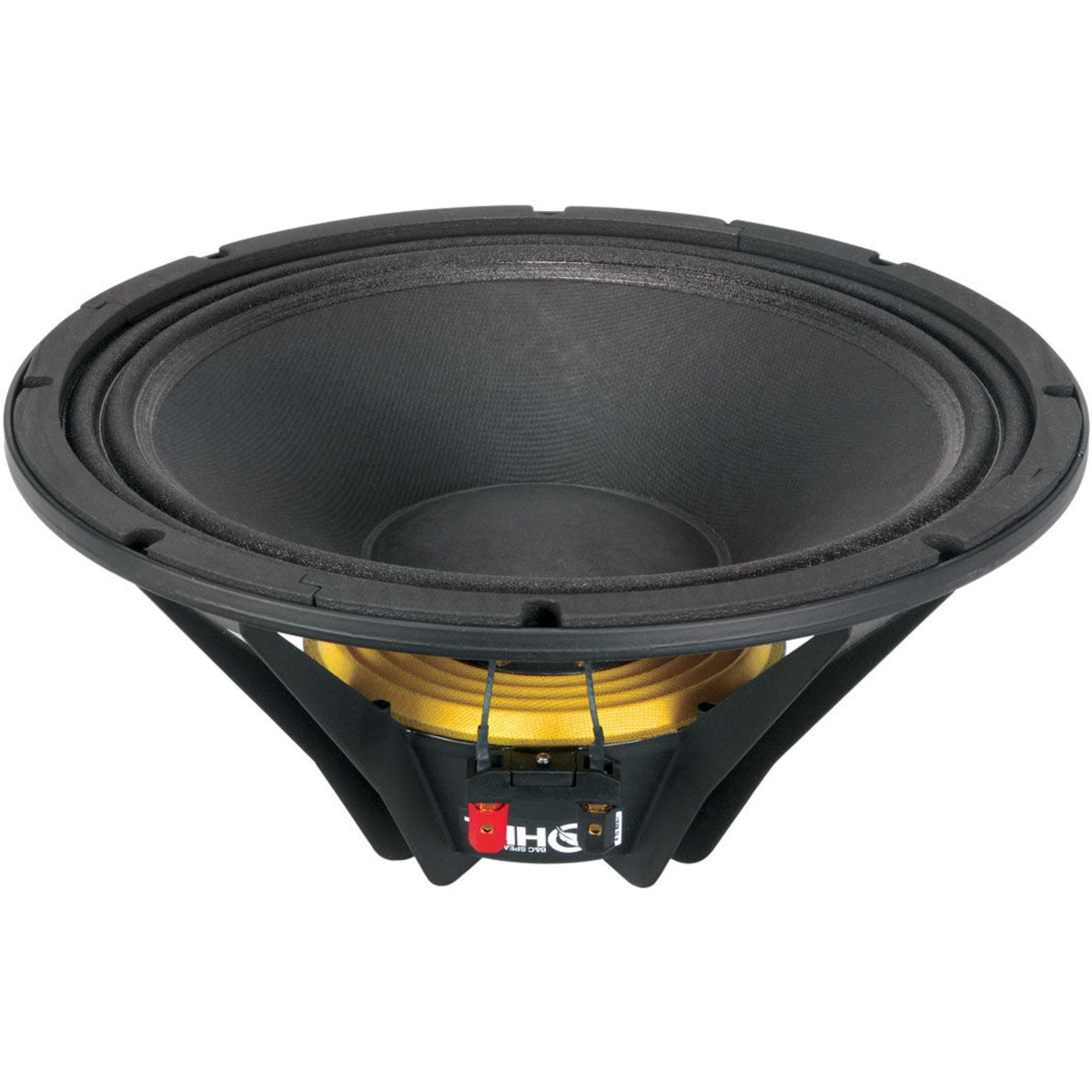

B&C 12HPL76 12" Neodymium Woofer

B&C 12HPL76 12" Neodymium Woofer. Part Number: 294-680 by B&C Speakers.

B&C Speakers . 12HPL76

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12HPL76 12" Neodymium Woofer
UPC844632002267
Weight10.4
WeightUnitlbs
depth, length5.7
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12HPL76
qtyInStockBack-Ordered
SKU, Part Number294-680
snippetB&C 12HPL76 12" Neodymium Woofer. Part Number: 294-680 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8?
Frequency Response50 to 3,500Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)49Hz
DC Resistance (Re)5.7?
Voice Coil Inductance (Le)1.5mH
Mechanical Q (Qms)2.5
Electromagnetic Q (Qes)0.26
Total Q (Qts)0.25
Compliance Equivalent Volume (Vas)3.2ft?
BL Product (BL)17.3T?m
Diaphragm Mass Inc Airload (Mms)43g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)522cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.7"
# Mounting Holes8
Sealed Volume0.5ft?
Sealed F3156.1Hz
Vented Volume1.63ft?
Vented F357.9Hz
