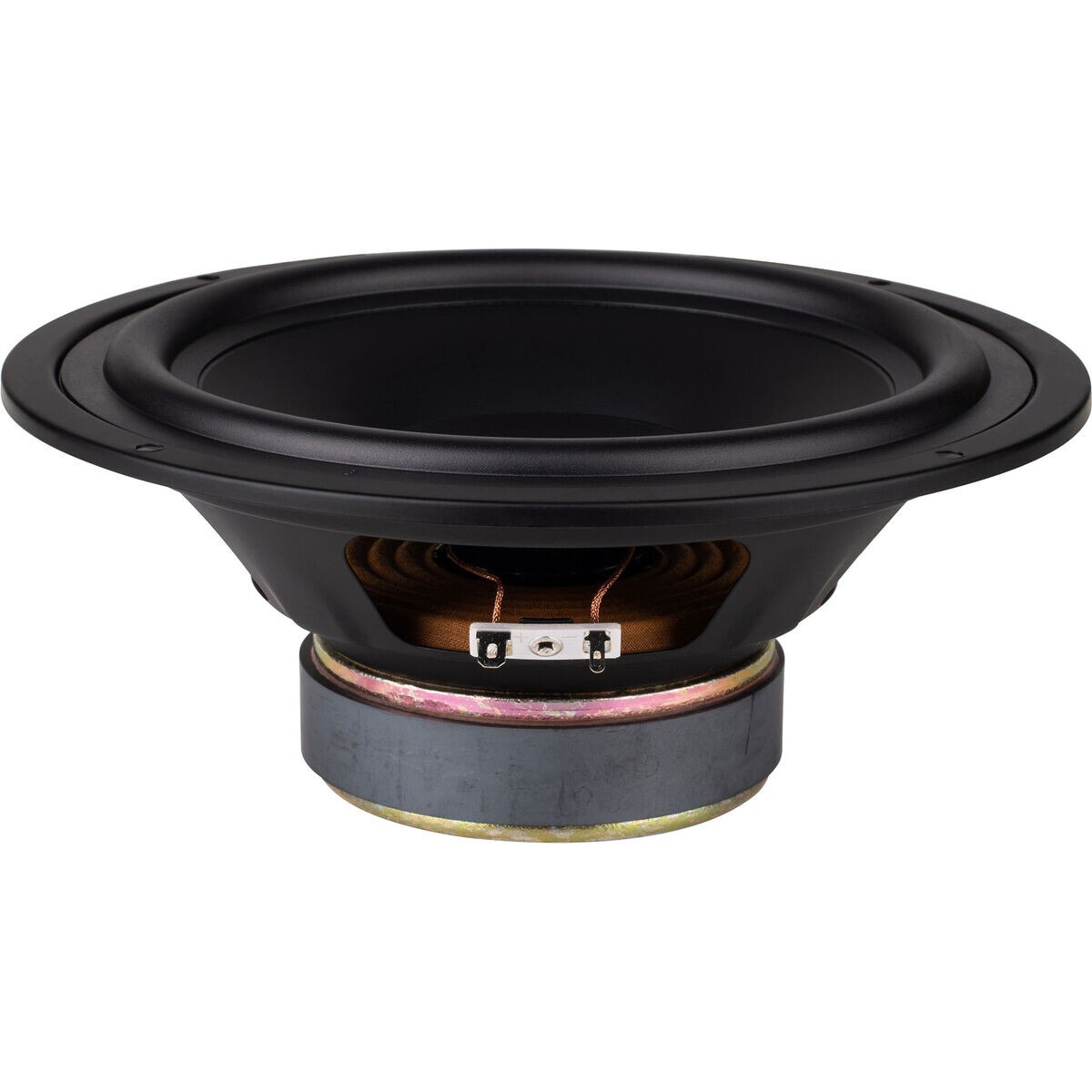

DynaLab V22-DR-0003 8" Paper Cone Woofer 4 Ohm

DynaLab V22-DR-0003 8" Paper Cone Woofer 4 Ohm. Part Number: 299-4004 by Factory Buyouts.

Factory Buyouts . V-22DR-0003

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameDynaLab V22-DR-0003 8" Paper Cone Woofer 4 Ohm
UPC844632014871
Weight3.45
WeightUnitlbs
depth, length3.25
diameter, height, width8.75
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelV-22DR-0003
qtyInStock0
SKU, Part Number299-4004
snippetDynaLab V22-DR-0003 8" Paper Cone Woofer 4 Ohm. Part Number: 299-4004 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter8"
Power Handling (RMS)80 Watts
Impedance4?
Frequency Response40 to 4,500Hz
Sensitivity86.98dB 2.83V/1m
Voice Coil Diameter1.5"
Resonant Frequency (Fs)53.16Hz
DC Resistance (Re)3.16?
Voice Coil Inductance (Le)0.292mH
Mechanical Q (Qms)4.548
Electromagnetic Q (Qes)0.9746
Total Q (Qts)0.8026
Compliance Equivalent Volume (Vas)0.7393ft?
Mechanical Compliance of Suspension (Cms)0.325mm/N
BL Product (BL)5.46T?m
Diaphragm Mass Inc Airload (Mms)27.559g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)248.16cm?
Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter8.75"
Baffle Cutout Diameter7.25"
Depth3.25"
# Mounting Holes4
Sealed Volume0.682ft?
Sealed F364.72Hz
Vented Volume2.98ft?
Vented F325.51Hz
