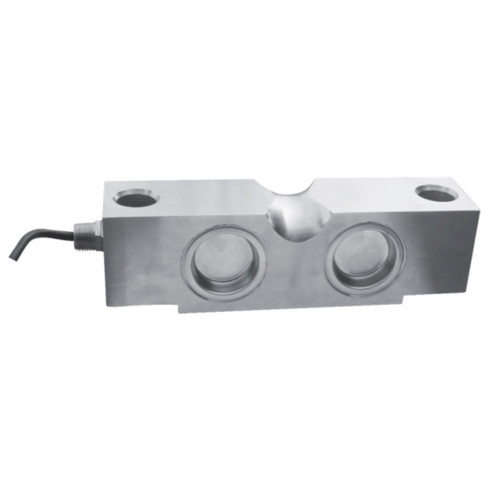

Keli KL-58 QSB-A-40Klb 40,000 lb Double Ended Beam Load Cell, NTEP - Scales Plus

Buy the Keli QSB-A-40Klb from the trained experts at Scales Plus!

Keli . QSB-A-40KLB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerKeli
DimensionUnitfoot
Extra Product NameKeli KL-58 QSB-A-40Klb 40,000 lb Double Ended Beam Load Cell, NTEP - Scales Plus
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length40.0
length_AttribCable Length
moq, multiple, tierMinQty11
MPN, SKUQSB-A-40KLB
qtyInStock0
snippetBuy the Keli QSB-A-40Klb from the trained experts at Scales Plus!
tierPrice1360
ModelQSB-A-40Klb
Capacity40,000 lb
Safe Overload150% capacity
Ultimate Overload200% capacity
ConstructionAlloy steel
FinishNickle plating
Cable Color CodeRed = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation10-12 VDC (maximum of 15 V)
Full Scale Output3 mV/V
Output Resistance702 (+/- 3) ohms
Input Resistance750 (+/-10) ohms
Operating Temperature Range-10 to +40?????
IP RatingIP68
Insulation Resistance5000 megohms
Cable LengthApproximately 40 ft
Dimensions LxWxH (mm)260.4 x 49.3 x 62

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.comQSB-A-40KLB111 @ $360.00
