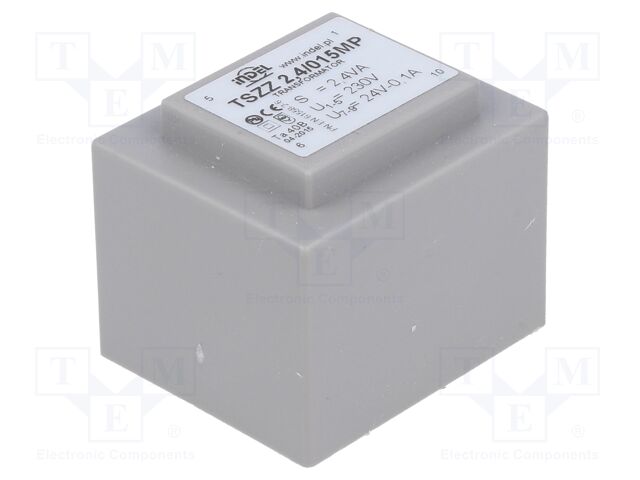

INDEL TSZZ2.4/015MP | Transformer: encapsulated; 2.4VA; 230VAC; 24V; 100mA; PCB; IP00
INDEL TSZZ2.4/015MP | Transformer: encapsulated; 2.4VA; 230VAC; 24V; 100mA; PCB; IP0
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INDEL |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | INDEL TSZZ2.4/015MP | Transformer: encapsulated; 2.4VA; 230VAC; 24V; 100mA; PCB; IP00 |
| atoms, moq, multiple | 1 |
| jsonUrlData | 13ed24bbb18cf827780d9bed50982d4d. |
| jsonUrlData2 | 4d68869a8b5e733b58ac |
| keywords | INDEL, TSZZ2.4/015MP, TSZZ2.4/24V |
| MPN | TSZZ2.4/015MP |
| qtyInStock | 0 |
| SKU | TSZZ2.4/24V |
| snippet | INDEL TSZZ2.4/015MP | Transformer: encapsulated; 2.4VA; 230VAC; 24V; 100mA; PCB; IP0 |
| Type of transformer | encapsulated |
| Power | 2.4VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 24V |
| Secondary winding current 1 | 0.1A |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558 |
| Thermal class | Ta40B |
| Secondary winding terminals | 7-9 |
| Primary winding terminals | 1-5 |
| Insulation class | II |
| A dimension | 32.1mm |
| A1 dimension | 23.6mm |
| B dimension | 27.1mm |
| B1 dimension | 20.2mm |
| C dimension | 26.8mm |
| C1 dimension | 23.2mm |
| M dimension | 20mm |
| P dimension | 5.05mm |
| Electrical insulation strength | 4kV/60s |
