LED Counter/Timer,Digital6,AC Power

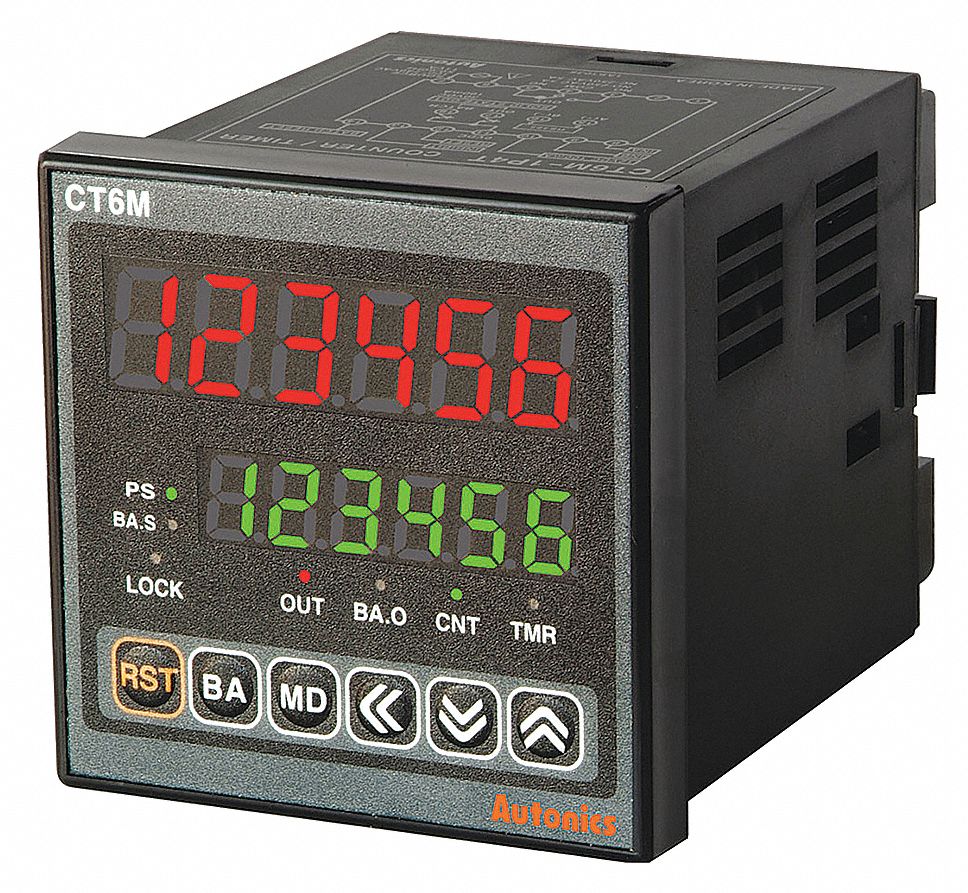

The AUTONICS CT6M-1P4 is a digital counter/timer with a 6-digit LED display. It features a batch counting function and has a relay and NPN output. The device measures 72mm in width and 2.83" in length, and has a power rating of 100-240VAC. It includes a mechanical relay and SSR output, and has a maximum count per second of 10,000. The counter/timer also has a preset function and a scaler feature.
Digital Counter/Timer, Number of Digits 6, LED Display, 99999 Counts, Counts per Second 10,000, Input Signal Selectable Voltage/No Voltage, Input Voltage H - 5-30VDC, L0-2VDC, Output Rating (1) Relay: 5A@250VAC, (1) SSR: 100mA@30VDC, Panel Mounting, Length 72mm, Depth 95mm, Width 72mm, Relay Mechanical Relay, SSR, CT Series, Yes Scaler, 1 Preset, Min. On/Off Pulse 0.1ms, Power Rating 100 to 240VAC, Prescaling Range 0.00001 to 99999.9, Front Key, Rear Terminal Reset Type
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G5681295 | 1 | 5 | 1 | 1 @ $127.99 |
| Grainger | 32J115 | 1 | 1 | ||
 Radwell | CT6M-1P4 | 1 | 1 | 1 | |
 TME | CT6M-1P4 | 1 | 7 | 1 | 1 @ $2054.77, 5 @ $1761.17, 10 @ $1565.43 |
| AC6ALR | 1 | 1 | 1 @ $251.49 | ||
 grainger.ca | GGE32J115 | 1 | 1 | 1 @ $173.96 | |
| Digi-Key | 12336680 | 1 | 67 | 1 | 1 @ $150.95 |
| 2247 | 1 | -2 | 1 | ||
| sustainablesupply.com | C1189516 | 1 | -2 | 1 | 1 @ $193.05 |
| autonicsonline.com | CT6M-1P4 | 1 | 1 | ||
 simsupply.com | ZO-G5681295 | 1 | 1 | 1 | 1 @ $171.93 |
| globaltestsupply.com | CT6M-1P4 | 1 | 1 | 1 | 1 @ $169.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
LED Counter/Timer, Digital6, AC Power
Brand: AUTONICS
'Digital Counter/Timer, Number of Digits 6, LED Display, 99999 Counts, Counts per Second 10,000, Input Signal Selectable Voltage/No Voltage, Input Voltage H - 5-30VDC, L0-2VDC, Output Rating (1) Relay: 5A@250VAC, (1) SSR: 100mA@30VDC, Panel Mounting, Length 72mm, Depth 95mm, Width 72mm, Relay Mechanical Relay, SSR, CT Series, Yes Scaler, 1 Preset, Min. On/Off Pulse 0.1ms, Power Rating 100 to 240VAC, Prescaling Range 0.00001 to 99999.9, Front Key, Rear Terminal Reset Type'
Details
- Price For: Each Output Rating : (1) Relay: 5A@250VAC, (1) SSR: 100mA@30VDC Special Features : Batch Counting Function Width : 72mm Standards : cULus, CE Number of Digits : 6 Series : CT Length : 2.83" Reset Type : Front Key, Rear Terminal Item : Digital Counter/Timer Relay : Mechanical Relay, SSR Depth : 3.74" Max. Counts per Second : 10, 000 Power Rating : 100 to 240VAC
- Fits Panel Cut Out : 72 x 72mm Min. On/Off Pulse : 0.1ms Mounting : Panel Counts : 99999 Input Voltage : 100 to 240VAC Scaler : Yes Input Signal : Selectable Voltage/No Voltage Preset : 1 Display : LED Prescaling Range : 0.00001 to 99999.9 Country of Origin (subject to change) : South Korea
Listing
| Product group | BISS |
|---|---|
| Product type | HOME_LIGHTING_ACCESSORY |
| Model | CT6M-1P4 |
| Part number | CT6M-1P4 |
| Items per pack | 1 |
| Label | Autonics |
| Manufacturer | Autonics |
Catalog
| Feature | RS485 Communication (Modbus RTU) function: Parameter Setting and monitoring VIA PC: PC loader program; DAQMaster provided free of charge |
|---|---|
| Category | Industrial & Scientific |
| MPN | CT6M-1P4 |
| Product group | BISS |
| Product type | HOME_LIGHTING_ACCESSORY |
| Manufacturer | Autonics |
