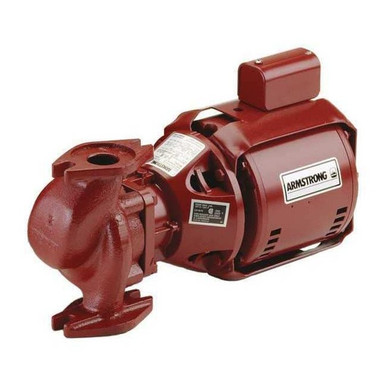

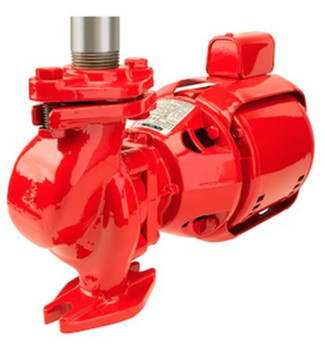

Armstrong Pumps . 174031MF-013
Circulator Pump, 115V, 1/12 HP, 2.40A
Attributes
| Brand name, Manufacturer name | Armstrong Pumps |
|---|---|
| Manufacturer | Armstrong Pumps ARMSTRONG INTERNATIONAL, INC. ARMSTRONG PUMPS INC. Armstrong Armstrong Fluid Systems |
| atoms, moq, multiple, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| extendedQty, qtyInStock | 0 |
| MPN, Part Number, Model, ModelNumber, Model_number, Mpns, PartNumber, Part_number | 174031MF-013 |
| Product Group | BISS |
| ASIN | B01M1F82NO B0752751CQ B0761M57Z7 |
| AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, TradeInEligible | False |
| Asin | B00V8KQA8W B01M1F82NO B0752751CQ B0761M57Z7 |
| Binding | Misc. |
| Brand | ARMSTRONG ARMSTRONG INTERNATIONAL, INC. Armstrong Armstrong International Armstrong Pumps |
| Bullet_point | 1 Year Manufacture Warranty 1/12 hp 115 Volts Armstrong Circulator Pump Model S-25 Item : Circulator Pump Max. Temp. : 225 Degrees F Number of Speeds : 1 Pump Mount : In Line Min. GPM @ Head : 2 gpm @ 10 ft. Housing Material : Cast iron RPM : 1800 Country of Origin (subject to change) : United States Max. Operating Pressure : 125 psi Width : 11-1/2" Loop Configuration : Closed Voltage : 115 Manufacturers Warranty Length : 2 yr. Best Efficiency GPM @ Head : 20 gpm @ 8 ft. Shaft Material : Stainless Steel HP : 1/12 Impeller Material : 30% Glass-Filled Noryl(R) Series : S Height : 6-1/2" Compliance : NSF-372 Features : Compact, High Performance, Permanently Lubricated Ball Bearings Phase : 1 Price For: Each Drive Type : Direct Mechanical Seal : Maintenance Free Amps : 2.40 Thermal Protection : yes Includes : Flange Gaskets Connection Style : NPT/Flange Length : 13-3/4" Shut-Off : 45 ft. Pump Type : 3-Piece Maintenance Free Inlet/Outlet Size : 3/4" to 1-1/2" Flange/Union Included : No Face to Face Dimension : 6-1/2" Max. GPM @ Head : 25 gpm @ 3 ft. Replaces Bell & Gossett Series 100 Model 100 NFI Standard Three-Piece Design; Cast Iron; Flange Not Included |
| Cat | Tools & Home Improvement |
| CatId | 228013 |
| CatTree | 13749581 228013 468240 601479011 |
| ClassificationId | 10304191 554568 |
| Color | Stainless Steel |
| DisplayName | Categories Power Water Pumps |
| Feature | Price For: Each Drive Type : Direct Mechanical Seal : Maintenance Free Amps : 2.40 Thermal Protection : yes Includes : Flange Gaskets Connection Style : NPT/Flange Length : 13-3/4" Shut-Off : 45 ft. Pump Type : 3-Piece Maintenance Free Inlet/Outlet Size : 3/4" to 1-1/2" Flange/Union Included : No Face to Face Dimension : 6-1/2" Max. GPM @ Head : 25 gpm @ 3 ft. |
| Height | 163 2448 450 48.2092 500 52 600 7.7599999920848 75 8.7 |
| Identifier | 0663001455516 0672807424626 0756655589123 663001455516 672807424626 7439453285499 756655589123 |
| IdentifierType | EAN UPC |
| IsBrandQuery | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | 1/12 hp 115V Armstrong Circulator Pump Model S-25# 174031MF-013 Armstrong 174031-013 1/12 Horsepower S-25 BF In Line Circulator Pump by Armstrong Armstrong S-25 BF 174031MF-013 Maintenance Free Version Circulator Pump, 115V, 1/12 HP, 2.40A |
| Item_package_weight | 8.319 |
| Item_type_keyword | portable-power-water-pumps |
| Item_weight | 0.01 1.26 21.0 |
| Keyword | 174031MF-013 S-25 S25 |
| Label, Publisher, Studio | ARMSTRONG INTERNATIONAL, INC. ARMSTRONG PUMPS INC. Armstrong |
| Length | 13.8 18.9799999806404 19.7104 |
| Link | https://m.media-amazon.com/images/I/21Vn-pt08bL._SL75_.jpg https://m.media-amazon.com/images/I/21Vn-pt08bL.jpg https://m.media-amazon.com/images/I/41XNrZnH6aL._SL75_.jpg https://m.media-amazon.com/images/I/41XNrZnH6aL.jpg https://m.media-amazon.com/images/I/51FIQxb+oVL._SL75_.jpg https://m.media-amazon.com/images/I/51FIQxb+oVL.jpg https://m.media-amazon.com/images/I/51pGDHgaKxL._SL75_.jpg https://m.media-amazon.com/images/I/51pGDHgaKxL.jpg https://m.media-amazon.com/images/I/91IJCVpxzUL.jpg https://www.amazon.com/gp/bestsellers/hi https://www.amazon.com/gp/bestsellers/hi/554568 |
| Man | ARMSTRONG PUMPS INC. |
| Material, MaterialType | Cast Iron Stainless Steel |
| Maximum_flow_rate | 25.0 |
| Power_source_type | Ac/dc Battery Powered |
| ProductCategoryId | 554568 home_improvement_display_on_website |
| ProductGroup | BISS BISS Basic Home Improvement |
| ProductType | WATER_PUMP |
| ProductTypeName | ELECTRONIC_COMPONENT TOOLS WATER_PUMP |
| Product_description | 'Circulator Pump, Pump Type 3-Piece Maintenance Free, Series S, HP 1/12, Voltage 115, 1 Phase, Inlet/Outlet Size 3/4 In. to 1-1/2 In., Connection Style NPT/Flange, Face to Face Dimension 6-1/2 In., Max. GPM @ Head 25 gpm @ 3 ft., Best Efficiency GPM @ Head 20 gpm @ 8 ft., Min. GPM @ Head 2 gpm @ 10 ft., Shut-Off 45 ft., Housing Material Cast Iron, Drive Type Direct, Height 6-1/2 In., Length 13-3/4 In., Width 11-1/2 In., Loop Configuration Closed, Flange/Union Included No, Includes Flange Gaskets' Armstrong 174031-013 1/12 Horsepower S-25 BF In Line Circulator Pump by Armstrong Both S and H Series circulators feature the unique Armstrong shaft and bearing module for ease of serviceability and maximum interchangeability. Oversized shafts of alloy steel machined to exact tolerances. Impellers are constructed from non-ferrous material and are designed for optimal water delivery. Typical Applications: Hot Water Boiler & Booster Pumps. This is the new and improved maintenance free version from Armstrong. This maintenance free version means you do not have to oil the bearing assembly like you did with the original 174031-013 version pump. The 174031MF-013 now replaces the 174031-013. |
| Product_site_launch_date | 2016-05-07T01:40:12.467Z 2017-03-21T07:00:00.000Z 2017-08-23T06:11:32.014Z 2017-09-29T04:50:53.200Z |
| Rank | 1010542 1033 1070428 1076 1078 1079 1095 1096 1098 1100 1101 1111837 1112420 1112893 1113721 1113763 1114 1114064 1114104 1114302 1114796 1114932 1115568 1119974 1134879 1136 1145 1159 2182972 2263 2522902 2542 616 618935 655 700708 705 736 751764 754600 808654 813 842424 843358 844 847 867 872517 893 906174 926434 929 940 948855 949563 |
| Sku | 174031MF-013 ARMSTRONG FLUID TECHNOLOGY 805316-010 ARMSTRONG PUMPS 105189-011 ARMSTRONG PUMPS 116904-001 ARMSTRONG PUMPS 174031MF-013 ARMSTRONG PUMPS 406622-000 ARMSTRONG PUMPS 426401-005 ARMSTRONG PUMPS 804300-111K ARMSTRONG PUMPS 805209-000 ARMSTRONG PUMPS 806073-111K ARMSTRONG PUMPS 810120-001 ARMSTRONG PUMPS 810120-206 ARMSTRONG PUMPS 810120-212 ARMSTRONG PUMPS 810120-244 ARMSTRONG PUMPS 816009-841 ARMSTRONG PUMPS 818602-200K ARMSTRONG PUMPS 831012-083A ARMSTRONG PUMPS INC 110124-052 ARMSTRONG PUMPS INC 110124-204 ARMSTRONG PUMPS INC 426401-006 ARMSTRONG PUMPS INC 571110LF-370 ARMSTRONG PUMPS INC 810134-145K ARMSTRONG PUMPS INC 825458-001 ARMSTRONG PUMPS INC. 110223-323 ARMSTRONG PUMPS INC. 174031MF-013 ARMSTRONG PUMPS INC. 975000-928 |
| StrippedMpns | 174031MF013 |
| Style | Circulator Circulator Pump |
| Supplier_declared_dg_hz_regulation | not_applicable unknown |
| Title | Armstrong 174031-013 1/12 Horsepower S-25 BF In Line Circulator Pump by Armstrong Circulator Pump, 115V, 1/12 HP, 2.40A Power Water Pumps Tools & Home Improvement |
| Type | Count ean upc |
| URL | http://ecx.images-amazon.com/images/I/41XNrZnH6aL._SL75_.jpg http://ecx.images-amazon.com/images/I/41q%2BrRii3sL._SL75_.jpg https://m.media-amazon.com/images/I/21Vn-pt08bL._SL75_.jpg https://m.media-amazon.com/images/I/41q+rRii3sL._SL75_.jpg https://m.media-amazon.com/images/I/51FIQxb+oVL._SL75_.jpg https://m.media-amazon.com/images/I/51l4mZIBRbL._SL75_.jpg https://m.media-amazon.com/images/I/51vDlnxJEhS._SL75_.jpg |
| Unit | centimeters gallons_per_minute inches kilograms pounds volts |
| Unit_count | 1.0 |
| Units | pixels pounds |
| Variant | MAIN |
| Voltage | 115.0 |
| WebsiteDisplayGroup | biss_basic_display_on_website home_improvement_display_on_website |
| WebsiteDisplayGroupName | BISS Basic Home Improvement |
| Weight | 0.000625 0.01 1.26 18.34025557578 21.0 21.00 |
| Width | 13.2299999865054 235 2448 33.6042 450 500 6.1 600 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| SupplyHouse | 174031MF-013 | 1 | 1 | ||
 AmazonTP | B0761M57Z7 | 1 | 1 | 1 @ $509.98 | |
| AmazonSC | B0761M57Z7 | 1 | -2 | 1 | 1 @ $567.05 |
| 174031MF-013 | 1 | -2 | 1 | 1 @ $525.54 | |
 midwestapplianceparts.com | 174031MF-013-AP-P | 1 | -2 | 1 | 1 @ $530.33 |
| midwestapplianceparts.com | 174031MF-013 -AP-P | 1 | 1 | ||
 cshincorporated.com | 174031MF-013 | 1 | -2 | 1 | 1 @ $479.60 |
 Zoro | G5414370 | 1 | 53 | 1 | 1 @ $474.60 |
| 174031MF-013 | 1 | 9 | 1 | 1 @ $585.67 | |
 simsupply.com | ZO-G5414370 | 1 | 22 | 1 | 1 @ $491.19 |
| Grainger | 52CE14 | 1 | 1 | ||
 Voomi Supply | 174031MF-013 | 1 | -2 | 1 | 1 @ $508.13 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Armstrong S-25 BF 174031MF-013 Maintenance Free Version
Brand: ARMSTRONG
This is the new and improved maintenance free version from Armstrong. This maintenance free version means you do not have to oil the bearing assembly like you did with the original 174031-013 version pump. The 174031MF-013 now replaces the 174031-013.
Armstrong 174031-013 1/12 Horsepower S-25 BF In Line Circulator Pump by Armstrong
Brand: Armstrong
Armstrong 174031-013 1/12 Horsepower S-25 BF In Line Circulator Pump by Armstrong
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | TOOLS |
| Part number | 174031MF-013 |
| Label | Armstrong |
| Manufacturer | Armstrong |
1/12 hp 115V Armstrong Circulator Pump Model S-25# 174031MF-013
Brand: ARMSTRONG INTERNATIONAL, INC.
Both S and H Series circulators feature the unique Armstrong shaft and bearing module for ease of serviceability and maximum interchangeability. Oversized shafts of alloy steel machined to exact tolerances. Impellers are constructed from non-ferrous material and are designed for optimal water delivery. Typical Applications: Hot Water Boiler & Booster Pumps.
Details
- 1/12 hp 115 Volts Armstrong Circulator Pump Model S-25
- Replaces Bell & Gossett Series 100 Model 100 NFI
- Standard Three-Piece Design; Cast Iron; Flange Not Included
- 1 Year Manufacture Warranty
Listing
| Product group | Home Improvement |
|---|---|
| Product type | WATER_PUMP |
| Part number | 174031MF-013 |
| Label | ARMSTRONG INTERNATIONAL, INC. |
| Manufacturer | ARMSTRONG INTERNATIONAL, INC. |
Circulator Pump, 115V, 1/12 HP, 2.40A
Brand: Armstrong Pumps
'Circulator Pump, Pump Type 3-Piece Maintenance Free, Series S, HP 1/12, Voltage 115, 1 Phase, Inlet/Outlet Size 3/4 In. to 1-1/2 In., Connection Style NPT/Flange, Face to Face Dimension 6-1/2 In., Max. GPM @ Head 25 gpm @ 3 ft., Best Efficiency GPM @ Head 20 gpm @ 8 ft., Min. GPM @ Head 2 gpm @ 10 ft., Shut-Off 45 ft., Housing Material Cast Iron, Drive Type Direct, Height 6-1/2 In., Length 13-3/4 In., Width 11-1/2 In., Loop Configuration Closed, Flange/Union Included No, Includes Flange Gaskets'
Details
- Price For: Each Drive Type : Direct Mechanical Seal : Maintenance Free Amps : 2.40 Thermal Protection : yes Includes : Flange Gaskets Connection Style : NPT/Flange Length : 13-3/4" Shut-Off : 45 ft. Pump Type : 3-Piece Maintenance Free Inlet/Outlet Size : 3/4" to 1-1/2" Flange/Union Included : No Face to Face Dimension : 6-1/2" Max. GPM @ Head : 25 gpm @ 3 ft.
- Max. Operating Pressure : 125 psi Width : 11-1/2" Loop Configuration : Closed Voltage : 115 Manufacturers Warranty Length : 2 yr. Best Efficiency GPM @ Head : 20 gpm @ 8 ft. Shaft Material : Stainless Steel HP : 1/12 Impeller Material : 30% Glass-Filled Noryl(R) Series : S Height : 6-1/2" Compliance : NSF-372 Features : Compact, High Performance, Permanently Lubricated Ball Bearings Phase : 1
- Item : Circulator Pump Max. Temp. : 225 Degrees F Number of Speeds : 1 Pump Mount : In Line Min. GPM @ Head : 2 gpm @ 10 ft. Housing Material : Cast iron RPM : 1800 Country of Origin (subject to change) : United States
Listing
| Product group | BISS |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | 174031MF-013 |
| Items per pack | 1 |
| Label | ARMSTRONG PUMPS INC. |
| Manufacturer | ARMSTRONG PUMPS INC. |
Catalog
| Feature | Price For: Each Drive Type : Direct Mechanical Seal : Maintenance Free Amps : 2.40 Thermal Protection : yes Includes : Flange Gaskets Connection Style : NPT/Flange Length : 13-3/4" Shut-Off : 45 ft. Pump Type : 3-Piece Maintenance Free Inlet/Outlet Size : 3/4" to 1-1/2" Flange/Union Included : No Face to Face Dimension : 6-1/2" Max. GPM @ Head : 25 gpm @ 3 ft. |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 174031MF-013 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | ARMSTRONG PUMPS INC. |
