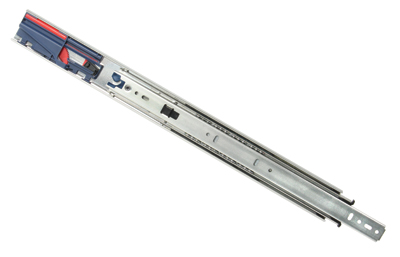

Knape & Vogt Kv8450Fm B16 Ano 16 In. Soft-Close Full Extension Drawer Slides - Anochrome

Soft close from KV with new low opening pull force. Spring loaded self-closing with soft close. Full extension. Load Rating: 100#. Side Clearance: 1/2" + 1/32" - 0. Mounting: Side for frame and frameless. Side Height: 1-13/16". Full 32 hole pattern. Lever disconnect for easy drawer removal. Steel ball bearing. (Three bearings per inch of race.). Ball retainer latch and ramps for easy drawer insertion. Non-handed. Drawer member setback minimum 1/8" from back of drawer front. 12" Slide extends 10-1/2". Specification. Type: Ball Bearing Slide. Closing Action: Soft close. Related Products: KV8400,KV8417,KV8455,KVTT100. Accessories: KV8400 Mounting Brackets, KTNZ03, KTNZ03 B. Screws Included: Yes. Color: Anochrome. Size: 16".

Knape and Vogt, KV8450FM B16, Drawer Slides, 8450FM, Cabinet Hardware, Drawer Slide, 16 Inch Soft-Close Full Extension Slides from the 8450FM Series The 8450FM Series full extension 100 pound rated drawer slides utilize a new hydraulic dampener that has the most optimally calibrated dampening features in the industry. When paired with a matched spring design, it slows the drawer closure speed to avoid loud bouncing and slamming. Its spring tension also makes certain there is a complete and secure closure keeping your drawers flush with the cabinetry and looking pristine. Features: Utilizes Force Management Technology for Optimal Soft Close Performance Rack and Gear System Enables Effortless Drawer Opening and Closure Works on Both Framed and Frameless Cabinetry 100-Pound Class Rated Flexible Installation Allowed by Non-Handed Design Traditional and 32mm Hole Patterns for Versatile Applications Three Ball Bearings Per Inch Aids with Smooth Quiet Operation Easy Drawer Removal with Push-in Lever Disconnect Polymer Stop Cushions Help Reduce Slamming For Residential or Commercial Use Limited Lifetime Warranty This slide utilizes Force Management technology, which has a rack and gear system that is touted as the next generation of soft-close drawer slide technology and has established a new superior standard in soft-close functionality. The performance delivered by Knape and Vogt's Force Management Technology not only optimally dampens the closing of the drawer, but enables effortless drawer opening and smooth operation. Specifications: Sold as a Set (Set is for One Complete Drawer) Screws Included Maximum Drawer Width: 24 Length: 16 Height: 1-13/16 Requires Minimum Clearance of 1/2? Per Side Drawer Width Must be Between 1? and 1-1/16? Less Than the Cabinet OpeningSimilar and Related Products: KV8450FM B18 Full Extension Slides KV8455FM B18 Overtravel Slides KV8505 P16 Heavy Duty Full Extension Slides KV8900 B16 Extra Heavy Duty Full Extension Slides
