RXEF160K-2 Littelfuse Inc. | Circuit Protection | DigiKey

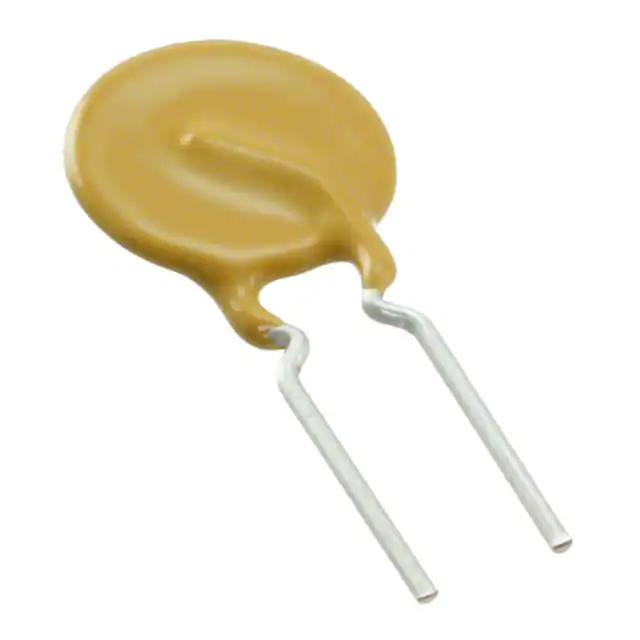

Polymeric PTC Resettable Fuse 72V 1.6 A Ih Through Hole Radial, Disc
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| CategoryL1, Category | Circuit Protection |
| CategoryL2 | PTC Resettable Fuses |
| DimensionUnit | inch |
| Extra Product Name | RXEF160K-2 Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.819 |
| height_Attrib | Height - Seated (Max) |
| MPN, Manufacturer Product Number | RXEF160K-2 |
| packaging | Cut Tape (CT) |
| qtyInStock | 1400 |
| SKU | 5015971 |
| snippet, Detailed Description | Polymeric PTC Resettable Fuse 72V 1.6 A Ih Through Hole Radial, Disc |
| tariff | 1.2 |
| tierMinQty10 | 7,500 |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 250 |
| tierMinQty7 | 500 |
| tierMinQty8 | 1,500 |
| tierMinQty9 | 3,000 |
| tierPrice1 | 0.756 |
| tierPrice10 | 0.25443 |
| tierPrice2 | 0.7343999999999999 |
| tierPrice3 | 0.7128 |
| tierPrice4 | 0.59928 |
| tierPrice5 | 0.49752 |
| tierPrice6 | 0.45230399999999993 |
| tierPrice7 | 0.38448 |
| tierPrice8 | 0.327924 |
| tierPrice9 | 0.25914 |
| Digi-Key Part Number | RXEF160K-2HFTR-ND - Tape & Reel (TR) |
| Description | PTC RESET FUSE 72V 1.6A RADIAL |
| Manufacturer Standard Lead Time | 15 Weeks |
| Series | PolySwitch?, RXEF |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 72V |
| Current - Hold (Ih) (Max) | 1.6 A |
| Current - Trip (It) | 3.2 A |
| Current - Max | 40 A |
| Time to Trip | 11.4 s |
| Resistance - Initial (Ri) (Min) | 90 mOhms |
| Resistance - Post Trip (R1) (Max) | 220 mOhms |
| Operating Temperature | -40?C ~ 85?C |
| Ratings, Thickness (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) |
| Height - Seated (Max) | 0.819" (20.80mm) |
| Lead Spacing | 0.199" (5.05mm) |
| Approval Agency | CQC, CSA, TUV, UL |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 5015971 | 1 | 1400 | 1 | 1 @ $0.76, 5 @ $0.73, 10 @ $0.71, 50 @ $0.60, 100 @ $0.50, 250 @ $0.45, 500 @ $0.38, 1500 @ $0.33, 3000 @ $0.26, 7500 @ $0.25 |
| Newark | 34AC5341 | 1500 | 1500 | 1 @ $0.33, 5000 @ $0.32, 10000 @ $0.30, 20000 @ $0.28, 30000 @ $0.26, 50000 @ $0.25 | |
 iodParts | RXEF160K-2 | 1500 | 1500 | 1500 | 1500 @ $0.23 |
| Digi-Key | 5268633 | 1 | 1500 | 1 | 1 @ $0.76, 5 @ $0.73, 10 @ $0.71, 50 @ $0.60, 100 @ $0.50, 250 @ $0.45, 500 @ $0.38, 1500 @ $0.33, 3000 @ $0.26, 7500 @ $0.25 |
| Digi-Key | 7690330 | 1500 | 1414 | 1500 | 1 @ $0.72, 5 @ $0.70, 10 @ $0.68, 50 @ $0.57, 100 @ $0.47, 250 @ $0.43, 500 @ $0.36 |
