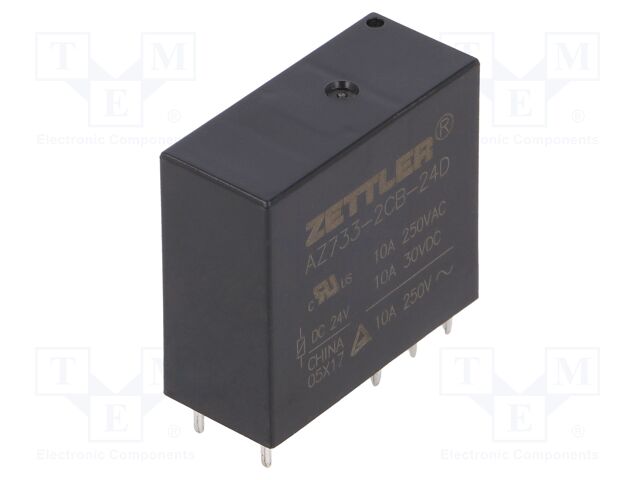

ZETTLER AZ733-2CB-24D | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A; 10A/250VAC; PCB
ZETTLER AZ733-2CB-24D | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A; 10A/250VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ733-2CB-24D | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A; 10A/250VAC; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | f57e7a697467255a595a92ac5f35dd09. |
| jsonUrlData2 | 81e12fe5f426a740f768 |
| keywords | ZETTLER, AZ733-2CB-24D, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ733-2CB-24D |
| qtyInStock | 1121 |
| snippet | ZETTLER AZ733-2CB-24D | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A; 10A/250VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.26 |
| tierPrice2 | 2.93 |
| tierPrice3 | 2.69 |
| tierPrice4 | 2.36 |
| tierPrice5 | 2.17 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 12A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 250V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 1.1k? |
| Operate time | 8ms |
| Body dimensions | 29x13x25.9mm |
| Release time | 5ms |
| Operating temperature | -40...85?C |
| Relay series | AZ733 |
| Contact material | AgNi |
| Terminal pitch | 5mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ733-2CB-24D | 1 | 1121 | 1 | 1 @ $3.26, 5 @ $2.93, 25 @ $2.69, 100 @ $2.36, 500 @ $2.17 |
