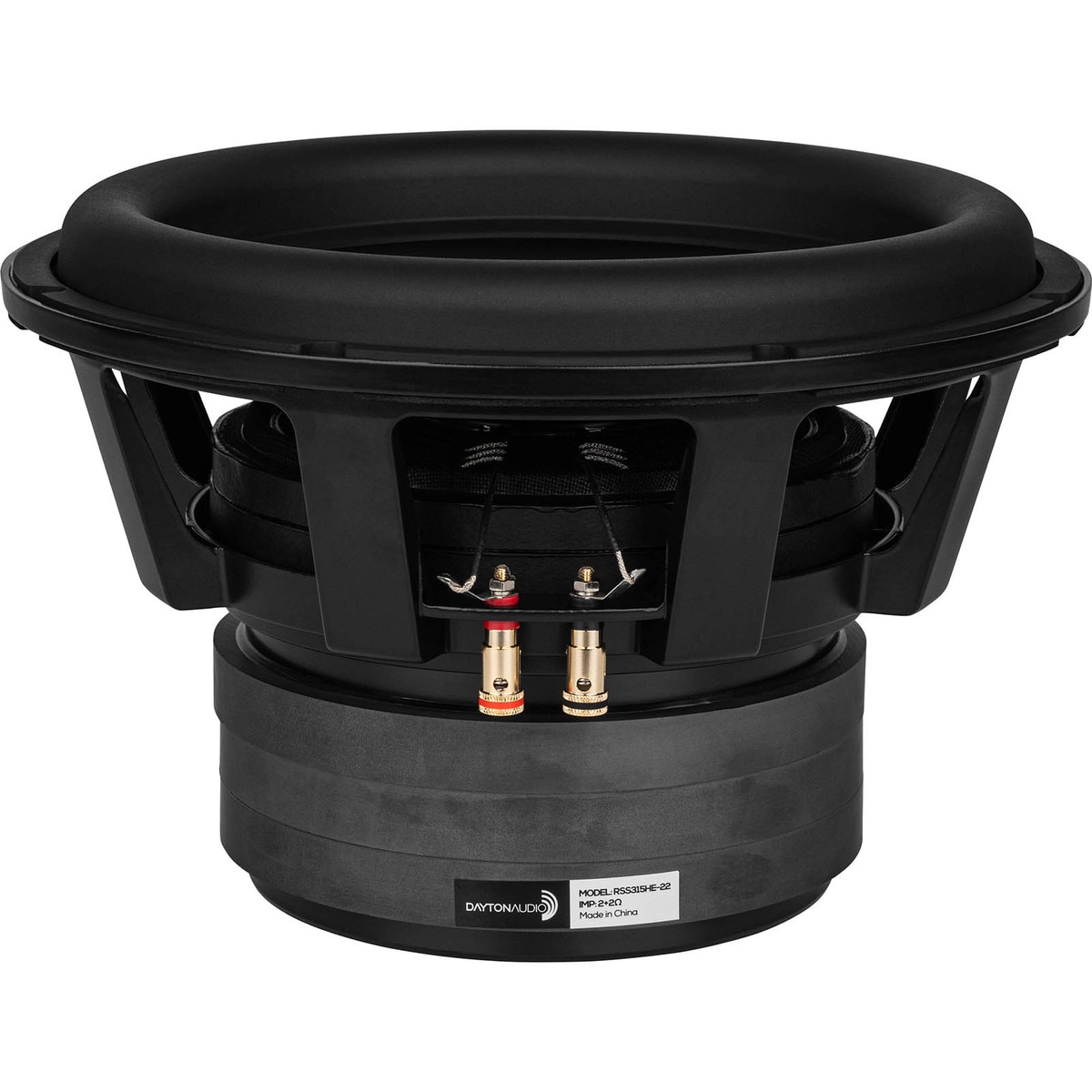

Dayton Audio RSS315HE-22 12" Reference Series High Excursion Subwoofer 2+2 ohm

Dayton Audio RSS315HE-22 12" Reference Series High Excursion Subwoofer 2+2 ohm. Part Number: 295-291 by Dayton Audio.

Dayton Audio . RSS315HE-22

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio RSS315HE-22 12" Reference Series High Excursion Subwoofer 2+2 ohm
UPC848864058351
Weight32.95
WeightUnitlbs
depth, length7.2
diameter, height, width12.32
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelRSS315HE-22
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-291
snippetDayton Audio RSS315HE-22 12" Reference Series High Excursion Subwoofer 2+2 ohm. Part Number: 295-291 by Dayton Audio.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance4?
Frequency Response25 to 750Hz
Sensitivity88.1dB 2.83V/1m
Voice Coil Diameter3.01"
Resonant Frequency (Fs)32Hz
DC Resistance (Re)4.1?
Voice Coil Inductance (Le)2.2mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)1.14ft?
Mechanical Compliance of Suspension (Cms)0.09mm/N
BL Product (BL)20.9T?m
Diaphragm Mass Inc Airload (Mms)263g
Maximum Linear Excursion (Xmax)25mm
Surface Area of Cone (Sd)499cm?
Cone Material, Voice Coil FormerAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.32"
Baffle Cutout Diameter11.18"
Depth7.2"
# Mounting Holes8
Sealed Volume1ft?
Sealed F364Hz
Vented Volume2.37ft?
Vented F326Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-2911-21
