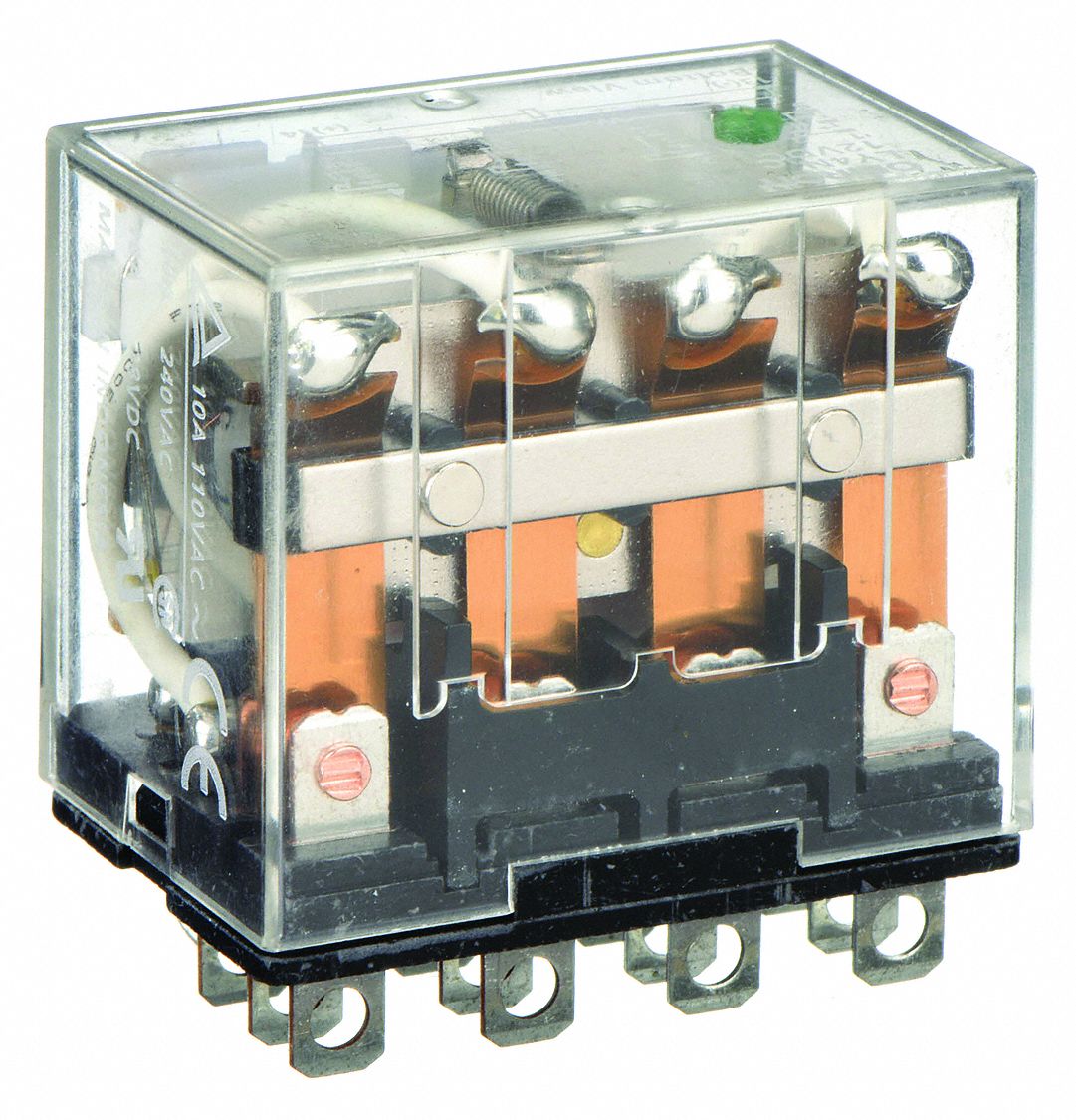

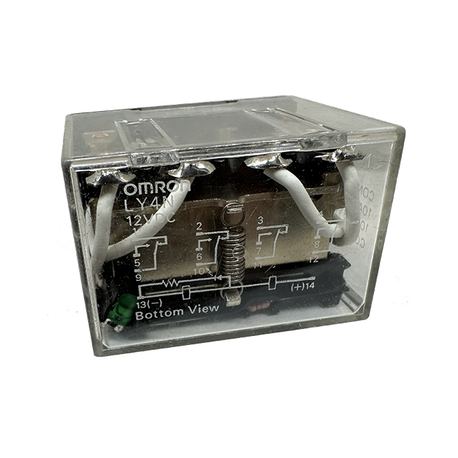

LY4N-DC12 Omron Automation and Safety | Relays | DigiKey
General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.197 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.42 in, Body Height 1.1 in
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Omron Automation and Safety |
|---|---|
| Extra Product Name | LY4N-DC12 Omron Automation and Safety | Relays | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | LY4N-DC12 |
| qtyInStock | 10 |
| SKU | Z6262-ND |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | 4PDT (4 Form C) |
| Switching Voltage | 250VAC, 125VDC - Max |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating, Coil Insulation | - |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -25?C ~ 40?C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
| Contact Rating (Current) | 10 A |
| Coil Current | 120 mA |
| Operate Time, Release Time | 25 ms |
| Coil Resistance | 100 Ohms |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Z6262-ND | 1 | 10 | 1 | ||
| Grainger | 1YCT8 | 1 | 1 | ||
 Zoro | G1182675 | 1 | 20 | 1 | 1 @ $13.49 |
 Radwell | LY4N-DC12 | 1 | 1 | ||
| Allied Electronics | 71063158 | 1 | 1 | ||
| LY4N-DC12 | 1 | 5 | 1 | 1 @ $12.25 | |
 Raptor Supplies | AB4HWK | 1 | 1 | 1 @ $38.00 | |
 AmazonTP | B0073UD8Y0 | 1 | 1 | 1 @ $28.00 | |
| AmazonUNK | B0073UD8Y0 | 1 | -2 | 1 | 1 @ $28.00 |
 Newark | 89C7113 | 1 | 1 | 1 @ $33.90, 5 @ $31.32, 10 @ $29.04, 25 @ $26.76, 50 @ $25.08, 100 @ $23.72, 250 @ $21.59 | |
 Amazon | B0073UD8Y0 | 1 | 1 | ||
| 369576 | 1 | 35 | 1 | 1 @ $29.19, 10 @ $27.73, 25 @ $26.27, 50 @ $24.81, 100 @ $23.35, 250 @ $21.89 | |
| sustainablesupply.com | C1168674 | 1 | -2 | 1 | 1 @ $30.60 |
 Onlinecomponents.com | LY4NDC12 | 1 | 22 | 1 | 1 @ $28.31, 10 @ $23.90, 100 @ $19.41, 1000 @ $17.07, 10000 @ $17.07 |
| Mouser | 653-LY4N-DC12 | 1 | 4 | 1 | 1 @ $22.95, 10 @ $21.81, 100 @ $18.36, 1000 @ $15.49, 10000 @ $17.21 |
| Verical | LY4N-DC12 | 2 | 21 | 1 | 2 @ $33.12, 100 @ $33.12, 1000 @ $33.12, 10000 @ $33.12 |
| WWG1YCT8 | 1 | 1 | |||
| us.rs-online.com | 71063158 | 1 | 2 | 1 | 1 @ $31.44, 5 @ $29.08, 10 @ $27.01, 25 @ $24.80 |
| Airline Hydraulics | OMRON LY4N-DC12 | 1 | 3 | 1 | 1 @ $37.08 |
| Master Electronics | LY4NDC12 | 1 | 16 | 1 | 1 @ $22.18, 3 @ $20.73 |
