Dixon G125-C-SS Global Cam & Groove Type C Coupler x Hose Shank | MROSupply.com

WARNING : Under no circumstances should cam and groove couplings be used for compressed air or steam service. Dixon Sanitary Cam and Groove Global Type C Adapters are Female Cam Coupler x Hose Shank fittings for transitioning your hose directly to a camlock connection. These Type C camlock fittings are available from 1/2" up to 4" in A380 Permanent Mold Aluminum or 316 Investment Cast Stainless Steel. Dixon cam fittings incorporate an extra long shank design that allows for proper banding, eliminating a major cause of hose damage. Dixon camlock fittings are all precision machined to rigid tolerances and designed to be interchangeable with all products produced to Commercial Item Description A-A-59326B. However, no standard exists for the 1/2" and 8" fittings and generally these will not interchange with other manufacturers. All couplers, regardless of casting material, utilize durable stainless steel cam arm pins that will not rust or bind. The couplers also feature a recess to hold the gasket firmly in place, ensuring proper placement and eliminating any chance for leakage. Cam and Groove fittings are designed for use as a hose coupling that allows quick connect capabilities to increase operator productivity. To secure a connection, simply slide the adapter into the coupler, and with normal hand pressure press the cam levers down. Uncoupling is just as simple, just lift the cam arms and remove the adapter. Dixon Sanitary also offers Dust Plugs and Dust Caps to keep hoses and process tubes clean while fittings are disconnected. Dixon Cam and Groove Fittings Features: - Precision Machined - Rigid Tolerances - Recessed Gasket Slots - Buna N Seal Standard (alternates available) - Stainless Steel Cam Arm Pins - Interchangeable with most manufacturers

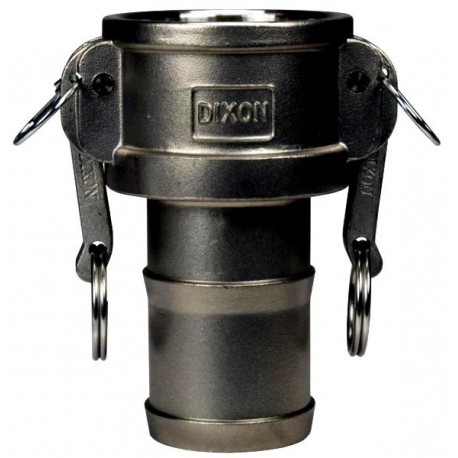

Dixon, G125-C-SS, Investment Cast SS Global Cam & Groove Type C Coupler X Hose Shank Applications Designed for use with liquids Specifications Designed to interchange with all products produced to A-A-59326D Features Made to Dixon specifications and branded Dixon Construction Buna seals How it works To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. Safety notes Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed.
