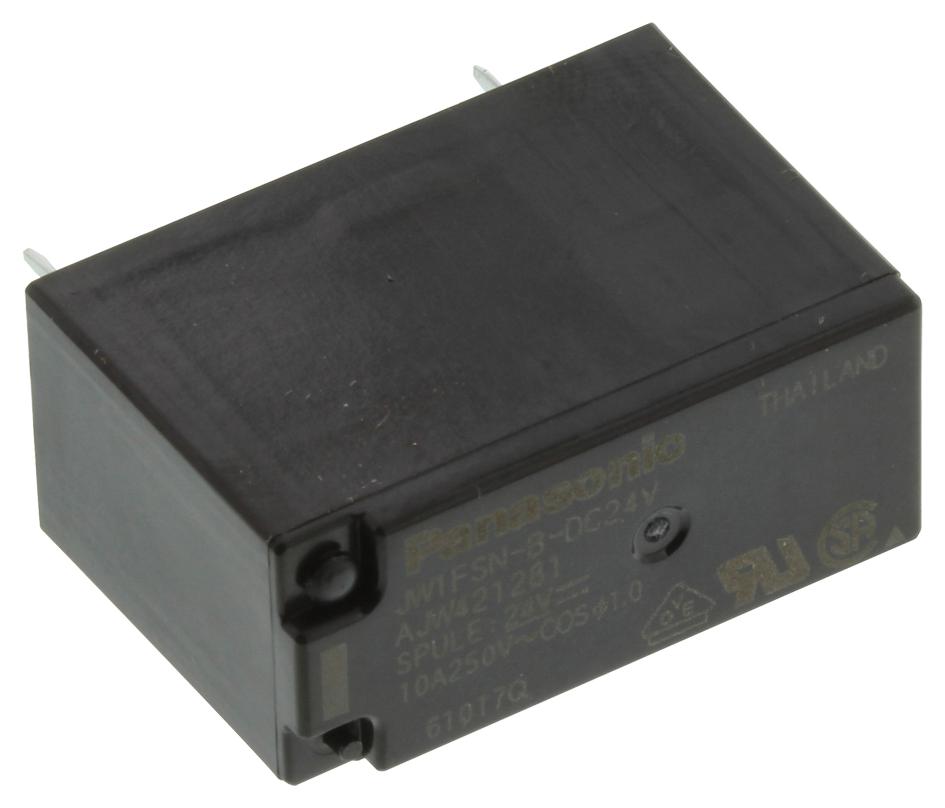

JW1FSN-B-DC24V Panasonic Electric Works | Relays | DigiKey
RELAY GEN PURPOSE SPDT 10A 24V
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Panasonic Electric Works |
|---|---|
| Extra Product Name | JW1FSN-B-DC24V Panasonic Electric Works | Relays | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | JW1FSN-B-DC24V |
| qtyInStock | 3408 |
| SKU | 255-1727-ND |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class B |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40?C ~ 85?C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
| Contact Rating (Current) | 10 A |
| Coil Current | 22 mA |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Coil Resistance | 1.1 kOhms |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 255-1727-ND | 1 | 3408 | 1 | |
| Allied Electronics | 70618224 | 1 | 1 | ||
| Jameco | 761299 | 1 | 1 | ||
| JW1FSN-B-DC24V | 1 | 1576 | 1 | 1 @ $2.31, 25 @ $2.26, 100 @ $1.72, 500 @ $1.58 | |
 Newark | 99F8714 | 100 | 100 | 100 @ $2.65, 500 @ $2.19 | |
| 1Source | JW1FSN-B-DC24V | 1 | 1 | ||
| Newark | 69AH0406 | 1 | 47 | 1 | 1 @ $2.44, 10 @ $2.28, 25 @ $2.16, 50 @ $2.09, 100 @ $1.93, 500 @ $1.85 |
| Digi-Key | 570864 | 1 | 1 | 1 @ $2.98, 10 @ $2.80, 25 @ $2.49, 50 @ $2.36, 100 @ $2.24, 300 @ $1.99, 500 @ $1.86, 1000 @ $1.74, 5000 @ $1.68 | |
 Verical | JW1FSN-B-DC24V | 21 | 32 | 1 | 21 @ $2.93, 1000 @ $2.93, 10000 @ $2.93 |
| Mouser | 769-JW1FSN-B-DC24V | 1 | 571 | 1 | 1 @ $3.26, 10 @ $2.67, 100 @ $2.00, 1000 @ $1.83, 10000 @ $1.83 |
| us.rs-online.com | 70618224 | 100 | 100 | 100 @ $2.56 | |
| JT33-JW1FSN-B-DC24V | 1 | 11275 | 1 |
