Hamilton

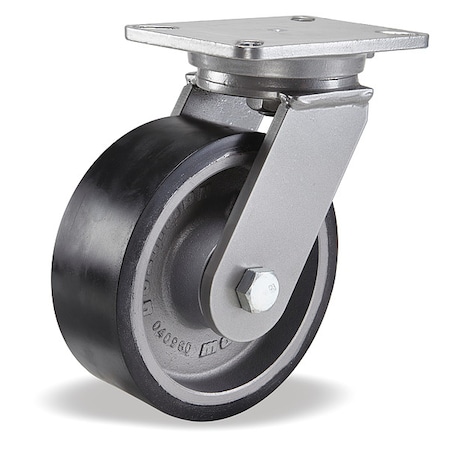

Hamilton . S-CH-83DB70-4SL-FB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA21
UnitOfMeasureEA
Weight37
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width12
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-CH-83DB70-4SL-FB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9074920
tierPrice1386.00
urlhttps://www.zoro.com/hamilton-plate-caster-3250-lb-load-rating-s-ch-83db70-4sl-fb/i/G9074920/
Caster Sub-TypeSwivel
Load Rating3250 lb
Wheel Dia8 in
Wheel Width, Overall Wheel Width3 in
Swivel Bearing Seal TypeOpen
Mounting Plate Bolt Hole PatternA
Wheel/Tread MaterialPolyurethane
Number of Mounting Holes4
Wheel/Tread ColorBlack
Mounting Height10 1/2 in
Swivel Lead2 1/2 in
TreadFlat
Includes Thread Guards, With Toe Plate, Includes Mounting Fasteners, Leveling Caster, Non-Marking, NSF ListedNo
For Axle Dia3/4 in
Swivel Raceway TypeSingle Ball
Frame FinishPowder Coated
Wheel Core MaterialCast Iron
Wheel/Tread Hardness70 Shore D
Mounting Bolt Dia, Mounting Plate Thickness1/2 in
ItemStandard Plate Caster
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Wheel/Tread Hardness RatingHard
Caster Brake TypeSide Pedal Brake
Swivel Radius6 1/2 in
SeriesChampion
Inside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Tire StyleTubeless
Brake LocationRight Side
Tread ShapeStandard
Caster Mounting TypePlate
Frame ConstructionForged
Caster Frame Material, Wheel Bearing MaterialSteel
Swivel ConstructionKingpin
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Mounting Plate Size5 1/4 in x 7 1/4 in
Wheel Core TypeSolid
Frame Color, Core ColorSilver
For Surface TypeConcrete
StandardsICWM
Wheel TypeFlat-Free
Outside Bolt Hole Spacing4-1/8 in x 6-1/8 in
Load Rating Range3000 to 5999 lb
ESD Conductive, Includes Spanner BushingYes
Operating Temperature Range-50 Degrees to 200 Degrees F
Wheel Bearing TypePrecision Ball
Swivel Lock Type4-Position Directional Lock
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9074920111 @ $386.00
Grainger55HA2111
