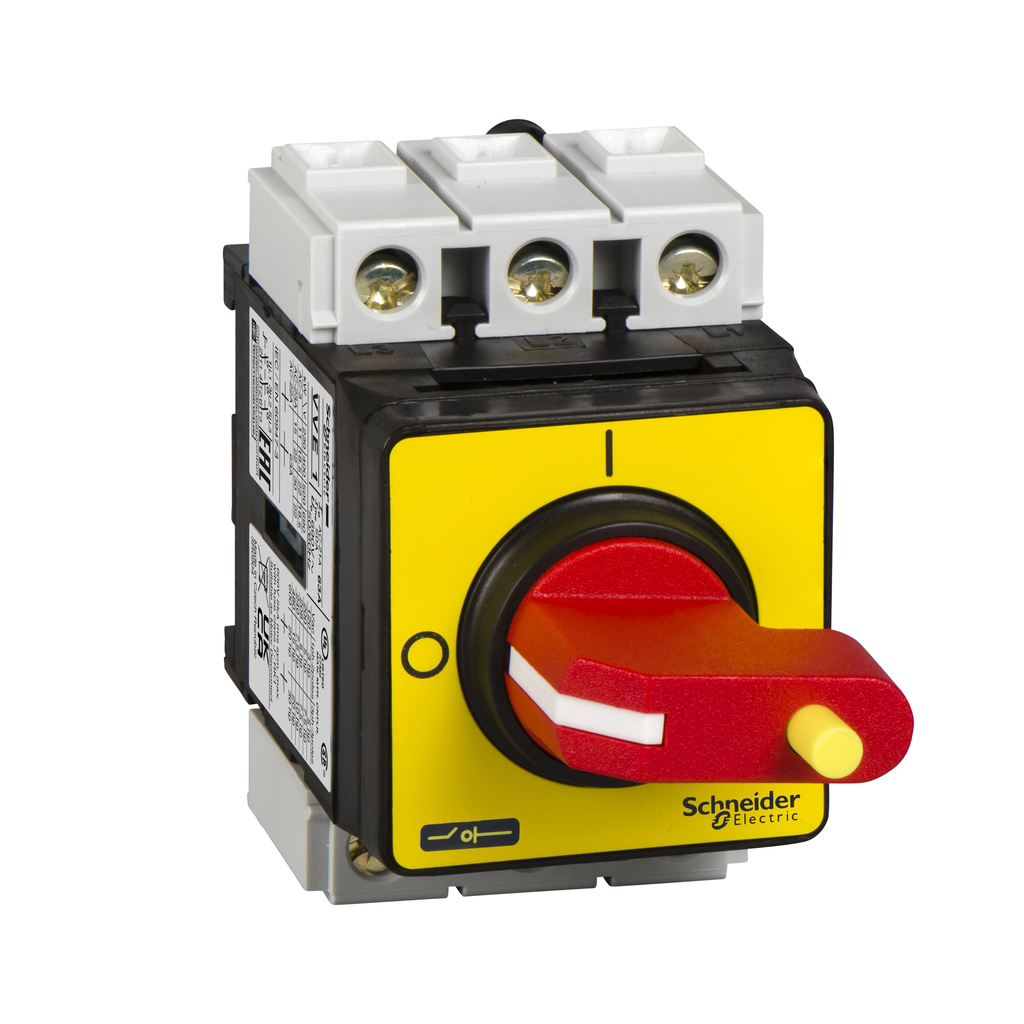

TeSys Vario - emergency stop switch disconnector - 32 A - back of enclosure | Mayer Electric

Mayer Electric Supply . VVE1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameTeSys Vario - emergency stop switch disconnector - 32 A - back of enclosure | Mayer Electric
UPC785901914211
Weight0.25
WeightUnitkg
Weight_AttribNet Weight
depth, length106.0
height74.0
height_AttribHeight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-Vario-emergency-stop-switch-disconnector-32-A-back-of-enclosure-785901914211
jsonUrlData2aa1016be-f415-48de-a9e5-abd2006354fe
length_AttribDepth
moq, multiple, tierMinQty11
MPNVVE1
qtyInStock0
SKUSQDVVE1
tierPrice1158.46
width55.0
width_AttribWidth
Product Or Component Typeemergency stop switch disconnector
Product NameTeSys VARIO
RangeTeSys
Device Short NameVVE
Warranty18 months
Rotary Handle Padlocking1 padlock 4-6 mm
Rotary Handle Mounting Styledirect
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Height74 mm
Intermittent Duty Class30
[Ith] Conventional Free Air Thermal Current32 A
Network TypeAC || DC
Handle Front Plate Colouryellow
Fixing Modeby clips switch || by screws switch
[Ithe] Conventional Enclosed Thermal Current25 A
Handle Colourred
Marking0 - 1
Base Dimension45 x 45 mm
Net Weight0.25 kg
Performance Levelhigh performance
[Uimp] Rated Impulse Withstand Voltage8 kV
Making Capacity320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A
Control Typerotary handle
Connections - Terminalspower circuit screw clamp terminals 10-10 mm? solid || power circuit screw clamp terminals 6-6 mm? flexible - with cable end
Contacts Type And Composition3 NO
[Icm] Rated Short-Circuit Making Capacity1 kA 400 V at Ipeak
Electrical Durability100000 cycles AC-21 || 30000 cycles DC-1...5
Suitability For Isolationyes
[Ie] Rated Operational Current : 21 8 A AC-23 Ue400 V
Mounting Supportswitch symmetrical rail || switch plate
Mechanical Durability100000 cycles
Poles Description3P
Width55 mm
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals
Depth106 mm
Device Compositionhandle || switch
Breaking Capacity250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)
Rated Conditional Short-Circuit Current10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG
[Icw] Rated Short-Time Withstand Current384 A 400 V 1 s
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP110227EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free product
Product CertificationsCSA || GL || UL || UKCA
Ambient Air Temperature For Operation-20-50 ?C
StandardsIEC 60947-3
Ip Degree Of ProtectionIP65 || IP65 conforming to IEC 60529
Protective TreatmentTC
Compatibility Codemain switch disconnector
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Fire Resistance960 ?C IEC 60695-2-1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDVVE1111 @ $158.46
