IXTF02N450 IXYS | Discrete Semiconductor Products | DigiKey
IXYS IXTF02N450 | Transistor: N-MOSFET; unipolar; 4.5kV; 0.2A; 78W; 1.6u

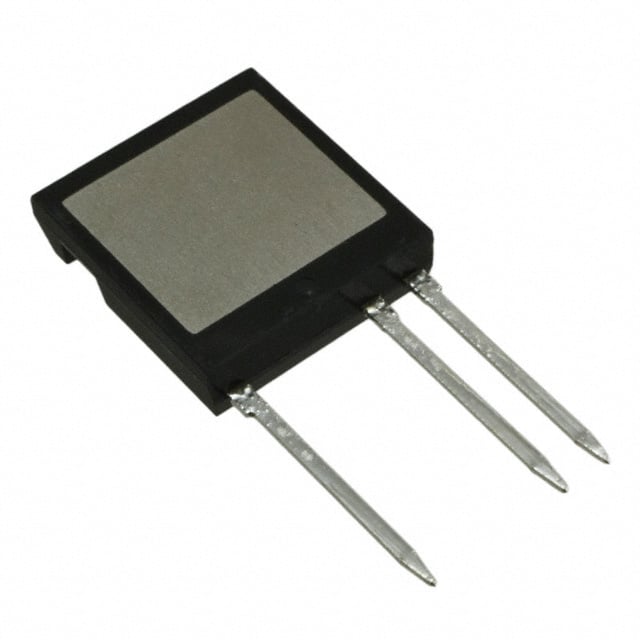

Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXTF02N450 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| MPN | IXTF02N450 |
| qtyInStock | 102 |
| SKU | IXTF02N450-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierMinQty6 | 1,000 |
| tierMinQty7 | 2,500 |
| tierMinQty8 | 5,000 |
| tierPrice1 | 31.27000 |
| tierPrice2 | 28.83600 |
| tierPrice3 | 27.54000 |
| tierPrice4 | 24.30000 |
| tierPrice5 | 20.73600 |
| tierPrice6 | 20.41200 |
| tierPrice7 | 19.92600 |
| tierPrice8 | 19.44000 |
| Category | Discrete Semiconductor Products |
| Series, FET Feature | - |
| Package | Tube |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 200mA (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 750Ohm @ 10mA, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 250?A |
| Vgs (Max) | ?20V |
| Power Dissipation (Max) | 78W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | ISOPLUS i4-PAC? |
| Package / Case | i4-Pac?-5 (3 Leads) |
| Drain to Source Voltage (Vdss) | 4500 V |
| Gate Charge (Qg) (Max) @ Vgs | 10.4 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 256 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| IXTF02N450-ND | 1 | 102 | 1 | 1 @ $31.27, 10 @ $28.84, 25 @ $27.54, 100 @ $24.30, 500 @ $20.74, 1000 @ $20.41, 2500 @ $19.93, 5000 @ $19.44 | |
 swatee.com | IXTF02N450 | 1 | 59 | 1 | 1 @ $56.99 |
| IXTF02N450 | 1 | 1 | 1 @ $51.65, 3 @ $46.47, 10 @ $41.09, 25 @ $36.97 | ||
| Digi-Key | 3737625 | 100 | 215 | 100 | 1 @ $44.39, 10 @ $41.41, 100 @ $35.95 |
