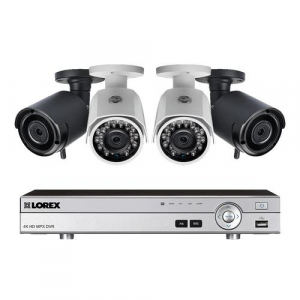

Lorex . LW422W

Lorex . LW422W

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLorex
moq, multiple, tierMinQty11
MPN, SKULW422W
qtyInStockContact Us
tierPrice1493.50
Operating SystemLinux (embedded)
PentaplexSimultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels8 Channels
Video IN8 x 1Vp-p, CVBS, 75ohms, BNC
Video OUTNo
VGA OUT, HDMI, Covert Video, Audio PlayYes
Audio IN, Audio OUT1 line IN (RCA)
USB Port1 at the back, 1 at the Iront
Alarm IN, Alarm OUT, DDNSNone
Video Output ResolutionHDMI: 3840x2160; 2560x1440; 1920x1200; 1600x1200; 1680x1050; 1920x1080; 1440x900; 1280x1024; 1280x720; 1024x768
PTZ ControlRS-485 Pelco D & P Protocol
Live Display1, 4, 8
Live Display Speed240 NTSC, 200 PAL
OSDON/OFF
System NavigationUSB Mouse, IR Remote Controller, Front Panel
Motion Area SettingFixed Grid 396 pixels (22x18) NTSC/PAL
Sensitivity Levels100
Firmware UpgradeAutomatic over the Internet & via USB device and Network
User AuthorityBy user group
Time SynchronizationAuto time sync by NTP server
Video CompressionH.264+
Audio CompressionG.711
Recording Resolution4K/8MP (3840x2160), 2K/4MP (2688x1520), 3MP (2304x1296), 1080p (1920x1080), 720p (1280x720), 960x480, 704x480, 352x480, 704x240, 352x240, 176x120
Recording Frame Rate4K at 7fps (per ch), 4MP at 15fps (per ch), 3MP/1080p/720p/960H: 30fps (NTSC)
Recording Resolution SettingPer camera for different resolutions
Recording Quality Control6 Levels
Recording ScheduleBy hour, by day, by recording mode, by motion, by channel
Pre RecordingMax. 30 seconds
Post RecordingMax. 5 minutes
ReliabilityWatch-Dog, Auto-recovery after power failure
Playback Channel1/ 4/ 8
Playback Speed VariableVariable Max 4x
Playback PlayersBackup Player
SearchBy Time/Date & Motion Event
Log SearchUp to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage
StorageUp to 1 HDD (SATA)
Maximum CapacityUp to 1 x 8TB
Backup MediaUSB Flash Drive & HDD
Backup File FormatDAV or ASF file
Cloud ConnectionLorex Cloud Connectivity
Supported Operating SystemsWindows , Mac OSX
Remote SoftwareClient Software (PC) & Safari (Mac)
Email NotificationText with snapshot
Instant SmartphoneiPad , iPhone , Android apps
System ConfigurationFull setup configuration over network
PortsProgrammable by User
Network ProtocolHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
Network Interface10/100-Base-TX, RJ-45
Network Bit RateMax 64Mbps
Power ConsumptionApprox. 10 watts (no HDD included)
Supply Voltage100VAC-240VAC, 12VDC, 2A, 50/60Hz
Unit Dimensions (W x D x H)12.8 x 10.0 x 2.2" / 325 x 255 x 55mm
Unit Weight (lb / kg)3.3lb / 1.5kg (without hard drive)
Operating Temperature °F / °C)14°F ~ 130°F / -10°C ~ 55°C
Humidity10 ~ 90% RH
Transmission Frequency2.4 GHz (2412MHz~2462MHz)
Transmission Power17dBm
Unobstructed Wireless Range600ft (183m) outdoor / 165ft (50m) indoor
Transmission TypeDSSS
ModulationOFDM and CCK
Operating Humidity< 90%
Image Sensor1/2.7" Color CMOS
Supported Resolution1080p
Effective PixelsH: 1932 V: 1092
Minimum Illumination0 Lux with IR Illumination
AGCOn
AES Speed1/60 ~ 1/62,500 Sec.
IR LEDs18 pieces
Night Vision Range115ft (35m) / 75ft (23m)
Environmental RatingIP66 (Indoor / Outdoor)
Lens2.8mm F2.0
Field of View118° (D) 85° (H)
Power Supply12Vdc +/- 10%
Operating Temperature-4° ~ 122°F / -20° ~ 50°C
Dimensions (W x D x H)3.2 x 6.1 x 5.6" / 82 x 155 x 143mm (with sunshade and antenna)
Weight0.34 kg / 0.7 lbs
Video FormatNTSC / PAL
Resolution1080p at 30FPS / 25FPS
Scan SystemProgressive
Sync SystemInternal
S/N Ratio53dB (AGC Off)
IrisAES
AES Shutter Speed1/60 (1/50) ~ 1/100,000 sec.
Min Illumination0.2 Lux withourt IR LED 0 Lux with IR LED
Video OutputMPX
Lens / Lens Type3.6mm F2.1 / Fixed
Field of view (Horizontal)90°
TerminationBNC Type
IR LED Qty / Type24 pieces / 850nm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotLW422W1Contact Us11 @ $493.50
