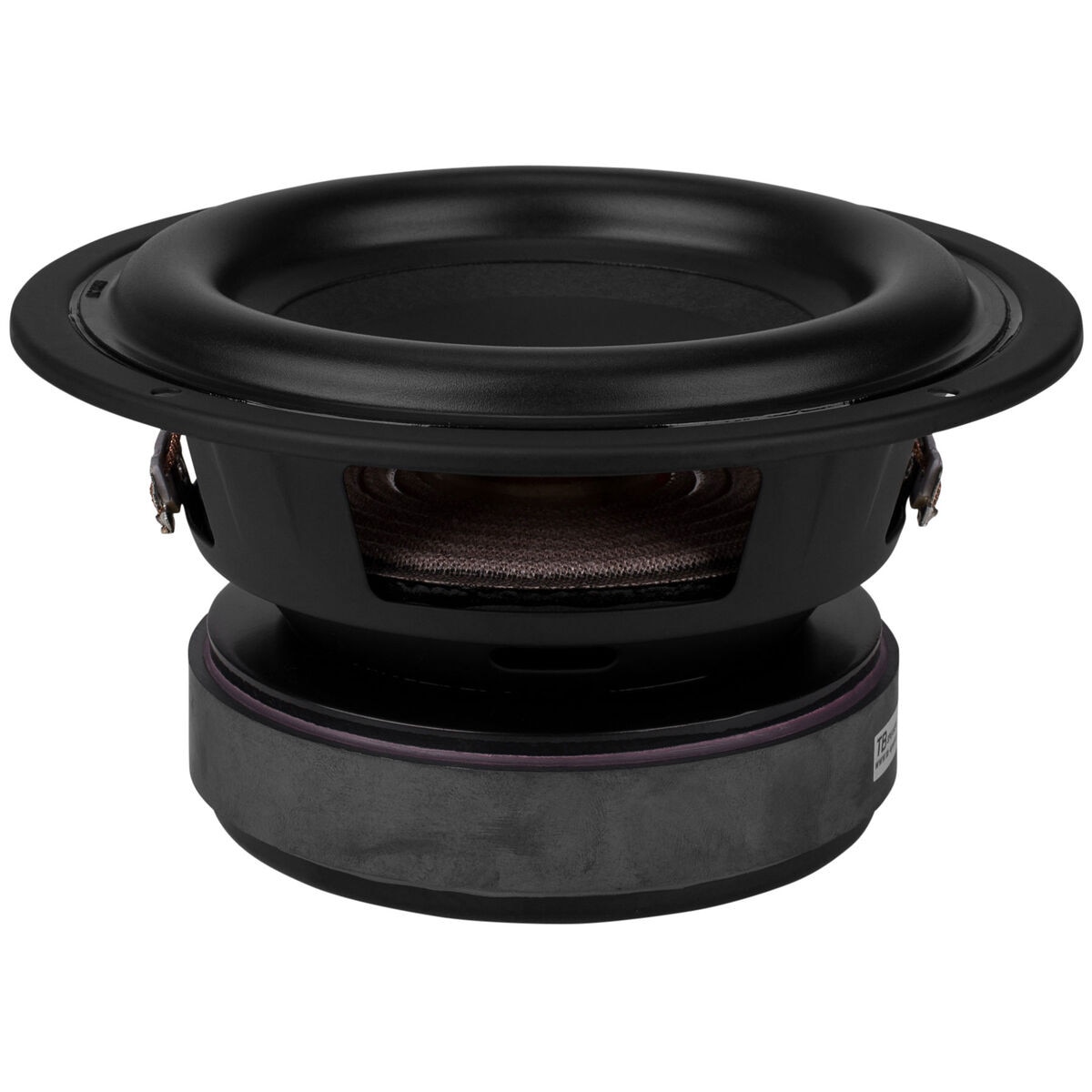

Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker

Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker. Part Number: 264-919 by Tang Band.

Tang Band . W6-1139SIF

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
UPC844632092879
Weight5.95
WeightUnitlbs
depth, length4.33
diameter, height, width6.95
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelW6-1139SIF
qtyInStock-2
qtySourceFieldMap
SKU, Part Number264-919
snippetTang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker. Part Number: 264-919 by Tang Band.
tierMinQty2, # Mounting Holes4
tierMinQty310
tierPrice1102.98
tierPrice297.83
tierPrice394.74
Unit of MeasureEach
Nominal Diameter6-1/2"
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance4?
Frequency Response35 to 800Hz
Sensitivity83dB 2.83V/1m
Voice Coil Diameter1.52"
Resonant Frequency (Fs), Vented F335Hz
DC Resistance (Re)3.6?
Voice Coil Inductance (Le)0.47mH
Mechanical Q (Qms)2.65
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)0.42ft?
Mechanical Compliance of Suspension (Cms)0.6mm/N
BL Product (BL)8.47T?m
Diaphragm Mass Inc Airload (Mms)39.91g
Maximum Linear Excursion (Xmax)11.5mm
Surface Area of Cone (Sd)140cm?
Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter6.95"
Baffle Cutout Diameter5.57"
Depth4.33"
Sealed Volume0.2ft?
Sealed F369.4Hz
Vented Volume0.4ft?
