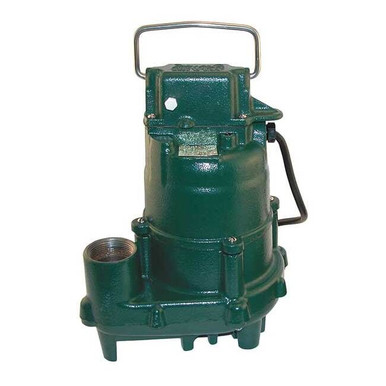

Submersible Effluent Pump,1/2hp,10.5A
Submersible Effluent Pump 1/2hp 10.5a | 5CZG3 | Worldwide Delivery | +44 203 287 5224 | [email protected]
Gallery
Attributes
| Brand name, Manufacturer name, Brand | Zoeller |
|---|---|
| Manufacturer | Zoeller ZOELLER |
| CategoryId | 6120 |
| DimensionUnit | inch |
| GraingerSku | 5CZG3 |
| Extra Product Name | Submersible Effluent Pump,1/2hp,10.5A |
| UPC | 053514264574 |
| UnitOfMeasure | EA |
| Weight | 38.7 0.000625 2.41 39.0 39.00 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible | False |
| countryOfOrigin | US |
| height | 13.8 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 11.2 |
| moq, multiple, tierMinQty1, Phase - Pumps, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Model | N153 |
| qtyInStock | 35 |
| qtyInStockOverride | -2 |
| SKU | G0283026 |
| tierPrice1 | 677.32 |
| url | https://www.zoro.com/zoeller-submersible-effluent-pump-12hp-105a-n153/i/G0283026/ |
| width | 8.4 |
| Max Diameter Solids | 3/4 in |
| Cord Length | 20 ft |
| Width | 7-3/4" 308 400 51 67 75 8.4 8.40 |
| Height | 12-1/8" 13.8 13.80 400 450 75 |
| Manufacturers Warranty Length | 3 yr |
| Cord Length - Pumps | 20 ft. |
| Diameter | 10-3/32" |
| Length | 10-1/16" 11.2 11.20 |
| Max Dia Solids | 3/4" |
| Min Sump Pit Dia, Minimum Water Depth | 18 in |
| Overall Height | 12 1/8 in |
| Width at Widest Point | 7 3/4 in |
| Body Dia | 10 3/32 in |
| Discharge Dia | 1 1/2 in |
| HP | 1/2 |
| Switch Actuation | No Switch Included |
| Body Material, Base Material | Cast Iron |
| Max Head | 44.0 ft |
| Impeller Material | Thermoplastic |
| Voltage - Pumps | 120VAC |
| Discharge NPT | 1-1/2" |
| ASIN, Asin | B0078RYYKA B079M6M1NL B07CQTMFD4 |
| Amount | 1023.99 482.99 788.55 793.99 |
| Bullet_point | GPM of Water @ 5 Ft. of Head: 77 GPM of Water @ 10 Ft. of Head: 70 GPM of Water @ 20 Ft. of Head: 52 GPM of Water @ 15 Ft. of Head: 61 GPM of Water @ 25 Ft. of Head: 42 GPM of Water @ 30 Ft. of Head: 33 Phase: 1 Thermal Protection: Thermal Protection Duty: Continuous Bearing Type: Lower Ball, Upper Sleeve Manufacturers Warranty Length: 3 Year Length: 10-1/16" Includes: 1-1/2" x 2" PVC Adapter Fitting Price For: Each Shaft Seal: Carbon/Ceramic Base Material: Cast Iron Hz: 60 Switch Type: None Handle: Yes Max. Liquid Temp.: 130 Degrees F Top Material: Cast Iron Housing Material: Cast Iron Item: Submersible Effluent Pump Motor Type: Oil Filled Item: Submersible Effluent Pump HP: 1/2 Impeller Material: Polypropylene Voltage: 115V Amps: 10.5 Pump RPM: 3450 Height: 12-1/8" Max. Head: 44 ft. Discharge NPT: 1-1/2" GPM of Water @ 35 Ft. of Head: 22 Min. Sump Pit Dia.: 18" Cord Length: 20 ft. Max. Dia. Solids: 3/4" Width: 7-3/4" Diameter: 10-3/32" Agency Compliance: UL, CSA Motor RPM: 3450 Country of Origin (subject to change): United States |
| ClassificationId | 10304191 680335011 |
| Color | Stainless Steel |
| Currency, CurrencyCode | USD |
| DisplayName | Categories Sump Pumps |
| Identifier | 0053514264574 0094713302865 053514264574 094713302865 7430988914311 |
| IdentifierType | EAN UPC |
| IsBrandQuery | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Submersible Effluent Pump, 1/2hp, 10.5A ZOELLER Submersible Effluent Pump 1/2hp 10.5A Zoeller 153-0002 Model N153 Dose Mate High Head Effluent Pump w/ 20' Cord |
| Item_package_weight | 39.0 |
| Item_type_keyword | sump-pumps |
| Item_weight | 2.41 39.0 |
| Keyword | 30-0243 | 5CZG3 |
| Label, Publisher, Studio | ZOELLER Zoeller |
| Link | https://m.media-amazon.com/images/I/419yubnw8qL._SL75_.jpg https://m.media-amazon.com/images/I/419yubnw8qL.jpg https://m.media-amazon.com/images/I/41Vbj76Z-pL._SL75_.jpg https://m.media-amazon.com/images/I/41Vbj76Z-pL.jpg https://www.amazon.com/gp/bestsellers/hi https://www.amazon.com/gp/bestsellers/hi/680335011 |
| List_price | 793.99 |
| Marking_type | epa_registration_number |
| Material | Cast Iron Polypropylene |
| MaterialType | Cast Iron HAWA Polypropylene |
| Maximum_flow_rate | 52.0 |
| Mpns, PartNumber, Part_number, StrippedMpns | 5CZG3 N153 |
| Power_source_type | Ac/dc |
| ProductCategoryId | 680335011 home_improvement_display_on_website |
| ProductGroup, WebsiteDisplayGroupName | Home Improvement |
| ProductType, ProductTypeName | WATER_PUMP |
| Product_description | 'Submersible Effluent Pump, Manual Operation Type, 1/2 HP, None, Base Material Cast Iron, Housing Cast Iron, Top Material Cast Iron, Carbon/Ceramic, Impeller Material Polypropylene, 115V, 10.5 Amps, Height 12-1/8 In., 10-3/32 In. Diameter, Cord Length 20 ft., Discharge NPT 1-1/2 In., Shaft Seal Carbon/Ceramic, Max. Dia. Solids 3/4 In., GPM of Water @ 10 Ft. of Head 70, Max. Head 44 ft., Max. Temp. 130 Degrees F, 1 Phase, Bearing Type Lower Ball, Upper Sleeve' Zoeller "Dose-Mate" High Head Effluent Pump This high head submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps are ideal for use in septic systems, low pressure pipe (LPP), and enhanced flow STEP system applications. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance. |
| Product_site_launch_date | 2012-02-13T20:55:46.861Z 2018-03-01T13:14:11.599Z 2019-11-23T01:53:05.850Z |
| Rank | 1009 1069491 1115100 1259240 1381 1586224 1766 1962 2462391 2544768 633 781147 787 833 837 849 860433 902664 |
| Registration_status | fifra_not_considered_pesticide not_capable_emitting_rf_energy |
| Sku | ZOELLER 1073-0001 ZOELLER 153-0002 |
| Style | Submersible |
| Title | Submersible Effluent Pump, 1/2hp, 10.5A Sump Pumps Tools & Home Improvement ZOELLER Submersible Effluent Pump 1/2hp 10.5A Zoeller 153-0002 Model N153 Dose Mate High Head Effluent Pump w/ 20' Cord |
| Type | Count ean upc |
| URL | https://m.media-amazon.com/images/I/31+6bBQdIGL._SL75_.jpg https://m.media-amazon.com/images/I/419yubnw8qL._SL75_.jpg https://m.media-amazon.com/images/I/41Vbj76Z-pL._SL75_.jpg https://m.media-amazon.com/images/I/510rlvLsVUL._SL75_.jpg |
| Unit | gallons_per_minute inches pounds |
| Unit_count | 1.0 |
| Units | inches pixels pounds |
| Variant | MAIN PT01 |
| WebsiteDisplayGroup | home_improvement_display_on_website |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G0283026 | 1 | 35 | 1 | 1 @ $677.32 |
| Grainger | 5CZG3 | 1 | 1 | ||
| AE3FHC | 1 | 1 | 1 @ $815.93 | ||
 AmazonTP | B0078RYYKA | 1 | 1 | 1 @ $564.96 | |
| sustainablesupply.com | C1744972 | 1 | -2 | 1 | 1 @ $599.06 |
| N153 | 1 | 1 | |||
 simsupply.com | ZO-G0283026 | 1 | 33 | 1 | 1 @ $785.74 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Submersible Effluent Pump, 1/2hp, 10.5A
Brand: Zoeller
'Submersible Effluent Pump, Manual Operation Type, 1/2 HP, None, Base Material Cast Iron, Housing Cast Iron, Top Material Cast Iron, Carbon/Ceramic, Impeller Material Polypropylene, 115V, 10.5 Amps, Height 12-1/8 In., 10-3/32 In. Diameter, Cord Length 20 ft., Discharge NPT 1-1/2 In., Shaft Seal Carbon/Ceramic, Max. Dia. Solids 3/4 In., GPM of Water @ 10 Ft. of Head 70, Max. Head 44 ft., Max. Temp. 130 Degrees F, 1 Phase, Bearing Type Lower Ball, Upper Sleeve'
Details
- Price For: Each Shaft Seal: Carbon/Ceramic Base Material: Cast Iron Hz: 60 Switch Type: None Handle: Yes Max. Liquid Temp.: 130 Degrees F Top Material: Cast Iron Housing Material: Cast Iron Item: Submersible Effluent Pump Motor Type: Oil Filled Item: Submersible Effluent Pump HP: 1/2 Impeller Material: Polypropylene Voltage: 115V Amps: 10.5
- GPM of Water @ 5 Ft. of Head: 77 GPM of Water @ 10 Ft. of Head: 70 GPM of Water @ 20 Ft. of Head: 52 GPM of Water @ 15 Ft. of Head: 61 GPM of Water @ 25 Ft. of Head: 42 GPM of Water @ 30 Ft. of Head: 33 Phase: 1 Thermal Protection: Thermal Protection Duty: Continuous Bearing Type: Lower Ball, Upper Sleeve Manufacturers Warranty Length: 3 Year Length: 10-1/16" Includes: 1-1/2" x 2" PVC Adapter Fitting
- Pump RPM: 3450 Height: 12-1/8" Max. Head: 44 ft. Discharge NPT: 1-1/2" GPM of Water @ 35 Ft. of Head: 22 Min. Sump Pit Dia.: 18" Cord Length: 20 ft. Max. Dia. Solids: 3/4" Width: 7-3/4" Diameter: 10-3/32" Agency Compliance: UL, CSA Motor RPM: 3450 Country of Origin (subject to change): United States
Listing
| Product group | Home Improvement |
|---|---|
| Product type | WATER_PUMP |
| Part number | N153 |
| Items per pack | 1 |
| Label | ZOELLER |
| Manufacturer | ZOELLER |
Zoeller 153-0002 Model N153 Dose Mate High Head Effluent Pump w/ 20' Cord
Brand: Zoeller
Zoeller "Dose-Mate" High Head Effluent Pump This high head submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps are ideal for use in septic systems, low pressure pipe (LPP), and enhanced flow STEP system applications. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance.
Listing
| Product group | Home Improvement |
|---|---|
| Product type | WATER_PUMP |
| Model | N153 |
| Part number | N153 |
| Label | ZOELLER |
| Manufacturer | ZOELLER |
ZOELLER Submersible Effluent Pump 1/2hp 10.5A
Brand: Zoeller
Listing
| Product group | Home Improvement |
|---|---|
| Product type | WATER_PUMP |
| Part number | 5CZG3 |
| Label | ZOELLER |
| Manufacturer | ZOELLER |
