Buy Transtector I2R-T125-4P230, AC Surge Protector, 3-Phase Wye, L-N, N-PE - Prime Buy

Transtector AC Surge Protector, 3-Phase Wye, L-N, N-PE I2R-T125-4P230. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ 1-855-969-9322 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

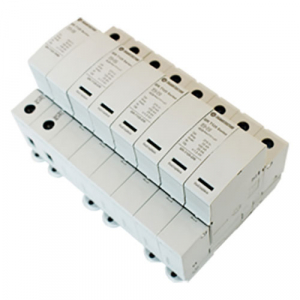

Transtector . I2R-T125-4P230

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTranstector
ConditionNEWCONDITION
Extra Product NameBuy Transtector I2R-T125-4P230, AC Surge Protector, 3-Phase Wye, L-N, N-PE - Prime Buy
moq, multiple, tierMinQty11
MPN, SKUI2R-T125-4P230
qtyInStock-2
qtySourceFieldMap
snippetTranstector AC Surge Protector, 3-Phase Wye, L-N, N-PE I2R-T125-4P230. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ 1-855-969-9322 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice1849.00
Indoor/OutdoorIndoor
Service Voltages230 Vac
Service Type3-Phase Wye
Maximum Continuous Operating Voltage (MCOV)L-N: 275 Vac
Backup Fuse315 A gL/gG
Surge Protection TechnologyMOV
Protection ModesL-N, N-PE
8/20µs Surge Current100 kA
10/350µs Surge Current25 kA
VPR 8/20µsL-N: 1,500 Vpk
Response Time25 ns
SCCR (Short Circuit Current Rating)25 kAIC
Housing Material and PlatingPA66 CT1; V-0
Temperature Range (Operational), Temperature Range (Storage)-40 to +80 deg C
Environmental Protection RatingIP 20
Humidity95% non-condensing
Mount TypeDIN Rail
Service Wiring TerminalCompression Lug: #1 to #9 AWG
Status Indication Terminal3-Position Screw Terminal: #16 to #22 AWG
RoHS Compliant, CE CompliantYes
CertificationsIEC 61643-11 Class I+II

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.comI2R-T125-4P2301-211 @ $849.00
