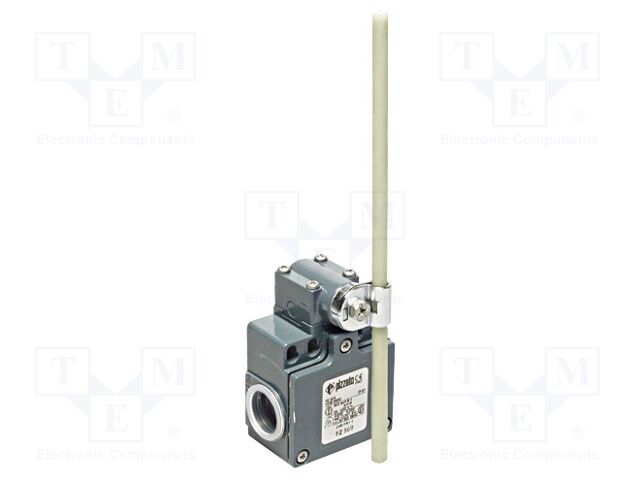

PIZZATO ELETTRICA FZ 569 | Limit switch; adjustable fiber glass rod, R 19- 189mm; NO + NC
PIZZATO ELETTRICA FZ 569 | Limit switch; adjustable fiber glass rod, R 19- 189mm; NO + N
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PIZZATO ELETTRICA |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Limit Switches |
| Extra Product Name | PIZZATO ELETTRICA FZ 569 | Limit switch; adjustable fiber glass rod, R 19- 189mm; NO + NC |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 1096554b16b78d44ccf9559a3432baa3. |
| jsonUrlData2 | 00aa7687d47334a3815a |
| keywords | PIZZATO ELETTRICA, FZ 569, FZ569 |
| MPN | FZ 569 |
| qtyInStock | 0 |
| SKU | FZ569 |
| snippet | PIZZATO ELETTRICA FZ 569 | Limit switch; adjustable fiber glass rod, R 19- 189mm; NO + N |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierPrice1 | 16.66 |
| tierPrice2 | 15.54 |
| tierPrice3 | 14.43 |
| Type of sensor | limit switch |
| Kind of actuator | adjustable fiber glass rod, R 19- 189mm |
| Output configuration | NO + NC |
| Contact current max | 10A |
| Switched voltage | max. 250V DC, |
| Connection | PG13,5 |
| IP rating | IP67 |
| Body dimensions | 44.5x50x31.5mm |
| Number of mounting holes | 4 |
| Operating temperature | -25...80?C |
| Body material | metal |
| AC contacts rating @R | 6A / 250V AC |
| DC contacts rating @R | 6A / 24V DC |
| Mechanical durability | 20000000 cycles |
| Mounting holes pitch | 20...22mm, |
| Switches features | snap action contacts |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| FZ569 | 1 | 1 | 1 @ $16.66, 5 @ $15.54, 10 @ $14.43 | ||
| FZ 569 | 1 | 1 | 1 @ $30.45 |
