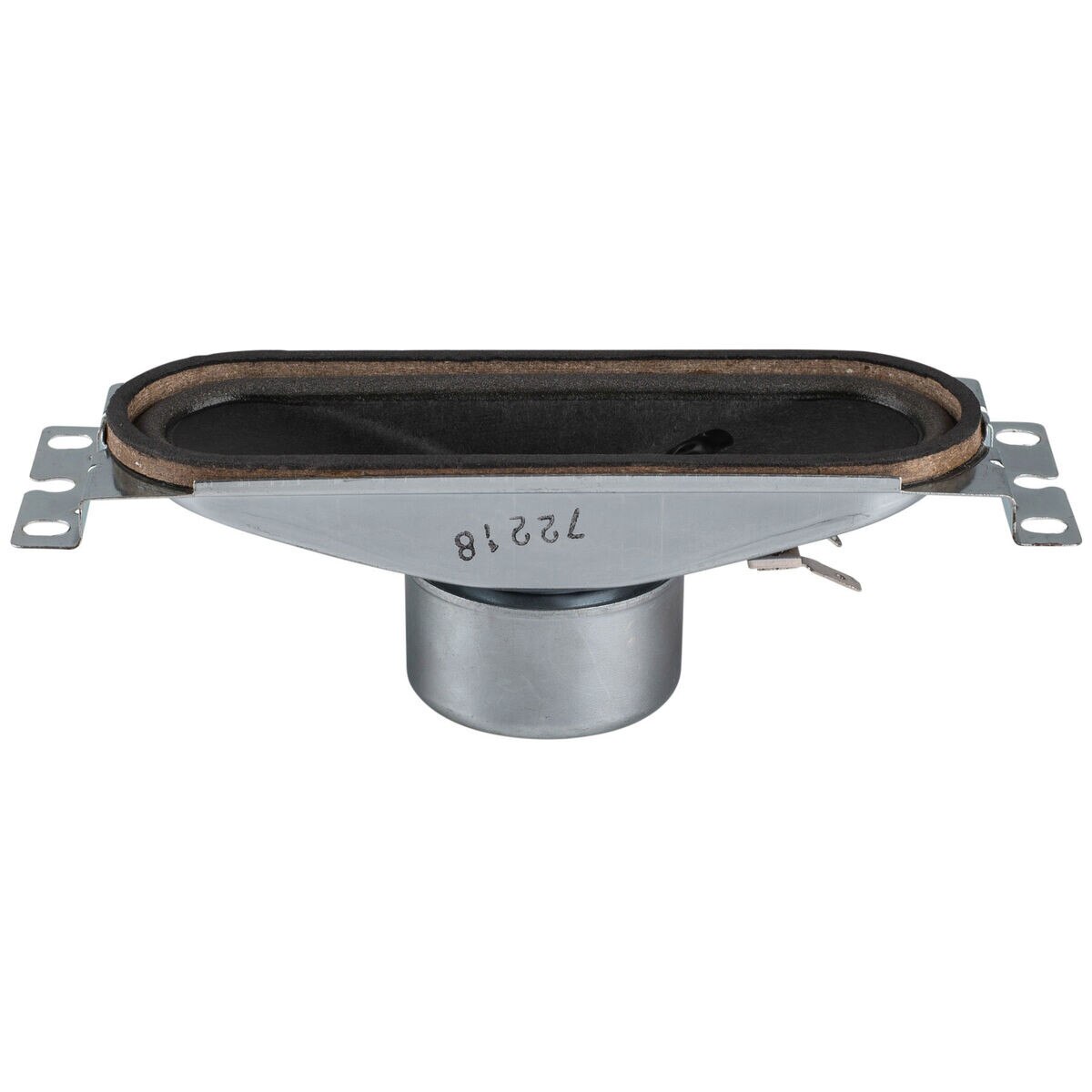

YDT513-8SX02 1-3/4" x 5" Paper Cone Full-Range Speaker

YDT513-8SX02 1-3/4" x 5" Paper Cone Full-Range Speaker. Part Number: 289-2232 by Factory Buyouts.

Factory Buyouts . YDT513-8SX02

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameYDT513-8SX02 1-3/4" x 5" Paper Cone Full-Range Speaker
UPC848864048383
Weight0.32
WeightUnitlbs
depth, length1.75
diameter, height, width6.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelYDT513-8SX02
qtyInStock0
SKU, Part Number289-2232
snippetYDT513-8SX02 1-3/4" x 5" Paper Cone Full-Range Speaker. Part Number: 289-2232 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 5"
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8?
Frequency Response150 to 10,000Hz
Sensitivity82.3dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)215Hz
DC Resistance (Re)7.5?
Voice Coil Inductance (Le)0.17mH
Mechanical Q (Qms)5.16
Electromagnetic Q (Qes)5.44
Total Q (Qts)2.65
Compliance Equivalent Volume (Vas)0.019ft?
Mechanical Compliance of Suspension (Cms)0.37mm/N
BL Product (BL)1.65T?m
Diaphragm Mass Inc Airload (Mms)1.45g
Surface Area of Cone (Sd)32.57cm?
Cone Material, Voice Coil FormerPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter6" x 1.75"
Baffle Cutout Diameter4.875" x 1.5"
Depth1.75"
# Mounting Holes4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com289-223211
