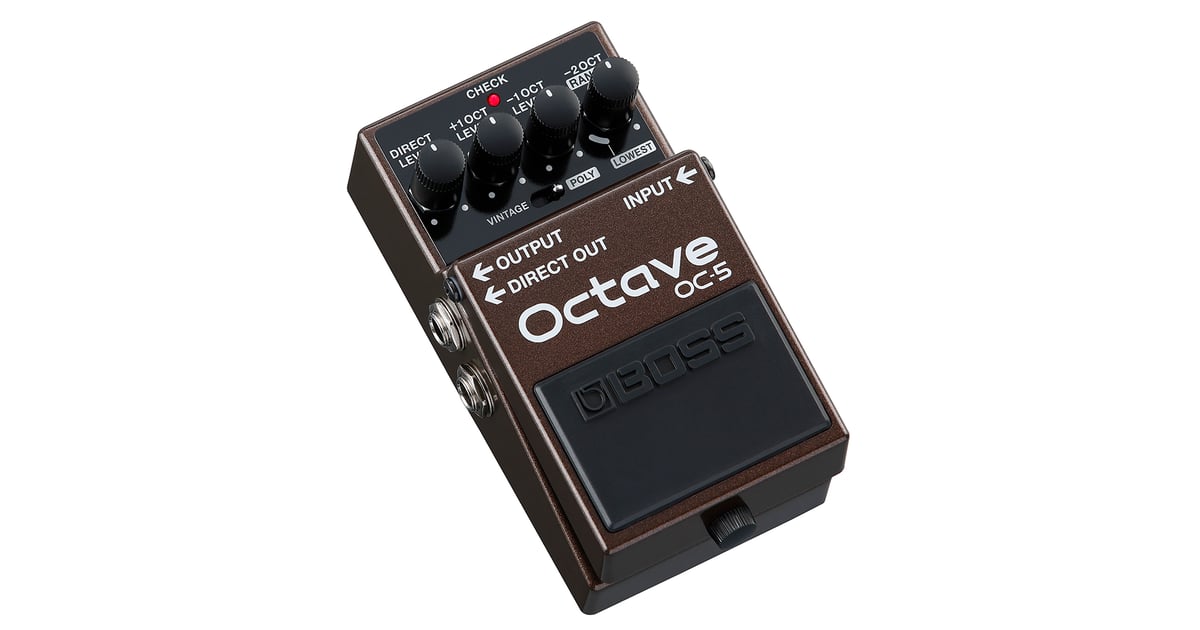

Boss . OC-5

BOSS OC-5 Octave Pedal for Guitar or Bass The New Standard in Octave Pedals Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date. BOSS OC-5 Octave Pedal for Guitar or Bass General Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Bypass Buffered bypass Controls Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob Indicator CHECK indicator (Serves also as battery check indicator) Connectors INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DIRECT OUT jack: 1/4-inch phone type DC IN jack Power Supply Alkaline battery (9 V, 6LR61 or 6LF22) AC adaptor (PSA series: sold separately) Current Draw 55 mA Expected battery life under continuous use Alkaline: Approx. 7 hours *These figures will vary depending on the actual conditions of use. Accessories
