G125-FV11005F3P Harwin Inc. | Connectors, Interconnects | DigiKey

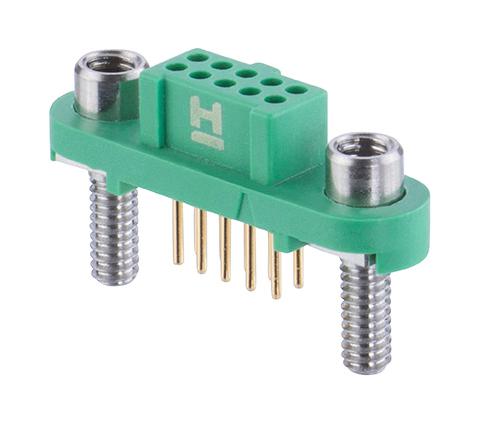

10 Position Receptacle Connector 0.049\

Harwin Inc. . G125-FV11005F3P

Attributes

Brand name, Manufacturer name, Manufacturer, MfrHarwin Inc.
DimensionUnitinch
Extra Product NameG125-FV11005F3P Harwin Inc. | Connectors, Interconnects | DigiKey
atoms, moq, multiple, tierMinQty11
extraShipping0
height0.2854330708661417
height_AttribMated Stacking Heights
length0.118
length_AttribContact Length - Post
MPNG125-FV11005F3P
packaging, PackageStrip
qtyInStock, Number of Rows2
SKU9739379
snippet10 Position Receptacle Connector 0.049\
tierMinQty2, Number of Positions10
tierMinQty3100
tierMinQty4500
tierPrice124.37000
tierPrice221.33900
tierPrice319.09980
tierPrice417.56300
CategoryConnectors, Interconnects
SeriesGecko SL
Product StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions LoadedAll
Pitch - Mating, Row Spacing - Mating0.049" (1.25mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeScrew Lock
Contact Finish - Mating, Contact Finish - PostGold
Contact Finish Thickness - Mating, Contact Finish Thickness - Post8.00?in (0.203?m)
Insulation ColorGreen
Insulation Height0.207" (5.25mm)
Contact Length - Post0.118" (3.00mm)
Operating Temperature-65?C ~ 150?C
Material Flammability RatingUL94 V-0
Mated Stacking Heights7.25mm, 7.33mm
Ingress Protection, Applications-
FeaturesJackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)2A
Voltage Rating450V
Insulation MaterialPolyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Contact ShapeCircular
Contact MaterialCopper Alloy
Base Product NumberG125-FV1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key97393791211 @ $24.37, 10 @ $21.34, 100 @ $19.10, 500 @ $17.56
Newark84AC1620111 @ $23.68, 10 @ $21.92, 50 @ $19.16, 100 @ $16.85, 250 @ $15.75, 500 @ $15.42, 1000 @ $14.65
