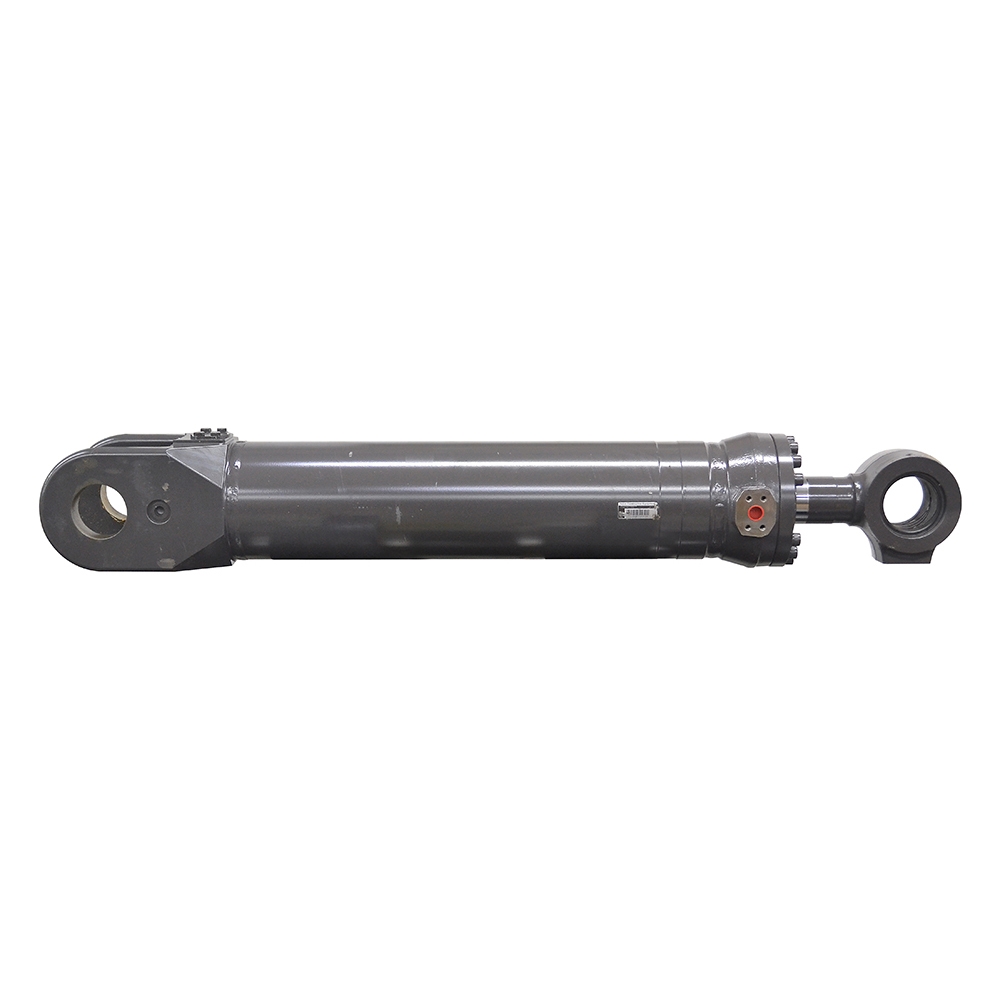

7.48(190mm)x31.69(805mm)x3.54(90mm) Double-Acting Hydraulic Cylinder Volvo 11088625 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

7.48(190mm)x31.69(805mm)x3.54(90mm) Double-Acting Hydraulic Cylinder Volvo 11088625, Double Acting Hydraulic Cylinders, 7.48 (190mm) x 31.69 (805mm)Volvo,11088625,

Volvo . 11088625

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerVolvo
DimensionUnitinch
Extra Product Name7.48(190mm)x31.69(805mm)x3.54(90mm) Double-Acting Hydraulic Cylinder Volvo 11088625 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com
Weight672
WeightUnitlbs
diameter, height3.54
height_AttribRod Dia.
length58.5
length_AttribRetracted Length
moq, multiple, tierMinQty11
MPN11088625
qtyInStock2
SKU9-20499
snippet7.48(190mm)x31.69(805mm)x3.54(90mm) Double-Acting Hydraulic Cylinder Volvo 11088625, Double Acting Hydraulic Cylinders, 7.48 (190mm) x 31.69 (805mm)Volvo,11088625,
tierPrice1699.95
width5.26
width_AttribWidth
Bore x Stroke7.48"(190mm) x 31.69"(805mm)
Barrel Thickness0.629"
Gland RetainerBolt on
Pressure3000 PSI
Rod Dia3.54"(90mm)
Extend Port4 bolt 1-1/4" code 61 flange size 20
Retracted Length58.5"
Gland Face to Rod Pin Center8.5"
Shpg672 lbs.
Rod EndTang
Width5.26"
Pin-Center-To-Tang-End3.8"
Pin Hole3.94"(100mm)
Base EndClevis

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-204991211 @ $699.95
