X34-100LSF/U | Mayer Electric

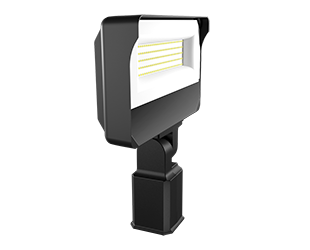

Mayer Electric Supply . X34-100LSF/U

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameX34-100LSF/U | Mayer Electric
UPC019813509761
Weight7.6
WeightUnitlbs
Weight_AttribWeight
jsonUrlData/Product/RAB-LIGHTING-FLOOD-87W-10000LM-5000K-SF-UNIV-DIM-BZ-019813509761
jsonUrlData296693eed-c5c9-4bfd-b8b5-abb200c9b63c
moq, multiple, tierMinQty1, EPA1
MPNX34-100LSF/U
qtyInStock0
SKURABX34100LSFU
tierPrice1214.57
UL ListedSuitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 TestingRAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Watts87W
Color Temp5000K (Cool)
Lumens11,905 lm
Efficacy134 lm/W
Color Accuracy82 CRI
TypeConstant Current
120V0.74A
208V0.42A
240V0.37A
277V, Driver : Constant Current, 120-277V, 50/60 Hz, 120V: 0 74A, 208V: 0 42A, 240V: 0 37A, 277V0.34A
Input Watts88W
LEDsLong-life, high-efficacy, surface-mount LEDs
Color UniformityRAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
IP RatingIngress protection rating of IP65 for dust and water
Cold Weather StartingThe minimum starting temperature is -40?C (-40?F)
Maximum Ambient TemperatureSuitable for use in up to 40?C (104?F)
HousingPrecision die-cast aluminum
MountingSlipfitter with tilt angle in 10? increments
LensTempered glass
FinishFormulated for high durability and long-lasting color
Green TechnologyMercury and UV free. RoHS-compliant components.
Tilt IncrementRotates in 6 degree increments
Dimming DriverDriver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD3.36% at 120V, 4.56% at 277V
Power Factor99.7% at 120V, 99.8% at 277V
NoteAll values are typical (tolerance +/- 10%)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comRABX34100LSFU111 @ $214.57
