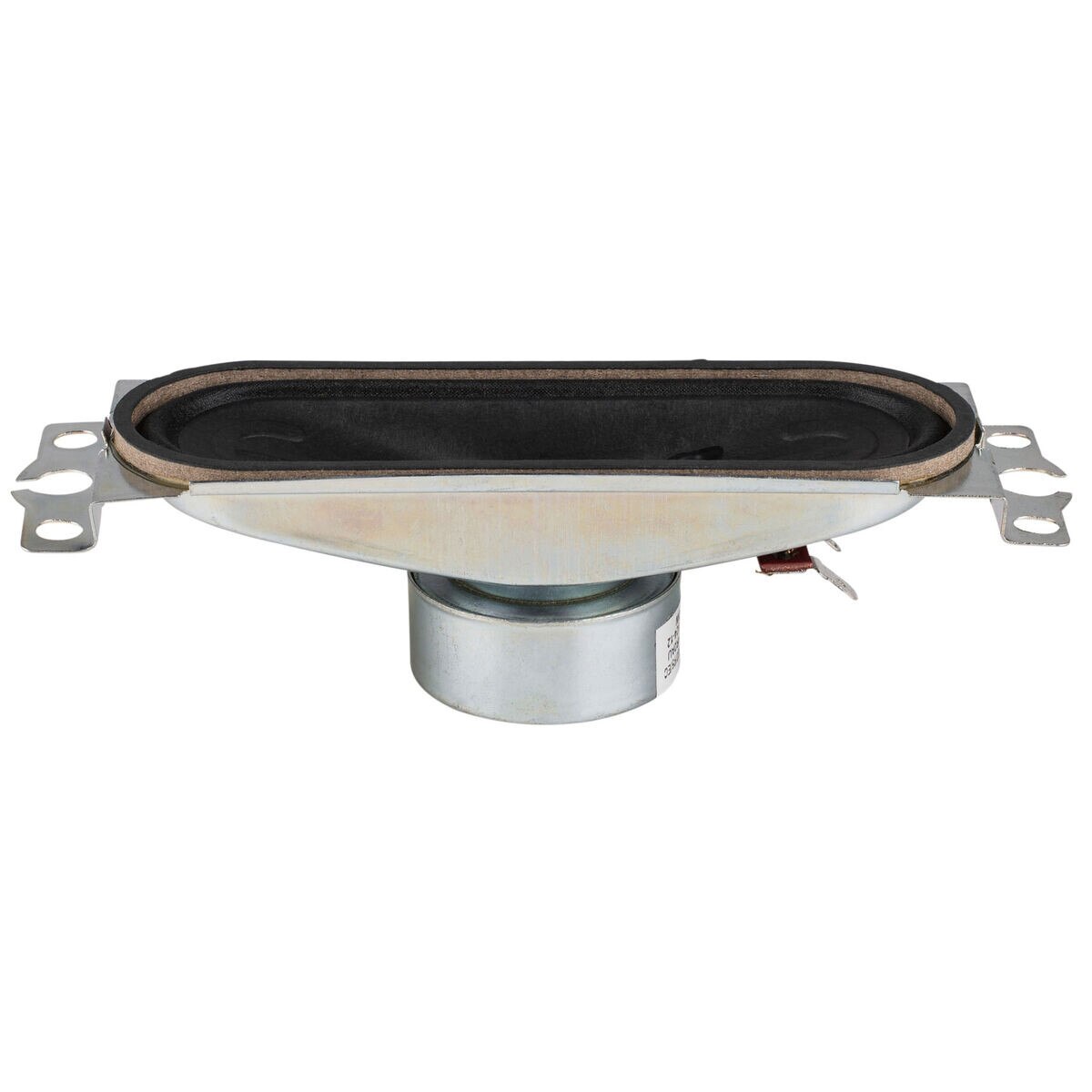

YDT0415-R2AU 1-3/4" x 5" Paper Cone Full-Range Speaker

YDT0415-R2AU 1-3/4" x 5" Paper Cone Full-Range Speaker. Part Number: 289-2230 by Factory Buyouts.

Factory Buyouts . YDT0415-R2AU

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameYDT0415-R2AU 1-3/4" x 5" Paper Cone Full-Range Speaker
UPC848864048376
Weight0.3
WeightUnitlbs
depth, length1.624
diameter, height, width6.25
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelYDT0415-R2AU
qtyInStock0
SKU, Part Number289-2230
snippetYDT0415-R2AU 1-3/4" x 5" Paper Cone Full-Range Speaker. Part Number: 289-2230 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 5"
Power Handling (RMS)12 Watts
Power Handling (MAX)24 Watts
Impedance8?
Frequency Response150 to 12,000Hz
Sensitivity80.5dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)215Hz
DC Resistance (Re)7.5?
Voice Coil Inductance (Le)0.47mH
Mechanical Q (Qms)4.26
Electromagnetic Q (Qes)7.14
Total Q (Qts)2.67
Compliance Equivalent Volume (Vas)0.018ft?
Mechanical Compliance of Suspension (Cms)0.32mm/N
BL Product (BL)1.56T?m
Diaphragm Mass Inc Airload (Mms)1.7g
Surface Area of Cone (Sd)34.2cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter(With mounting tabs: 6.25") 5.125" x 1.75"
Baffle Cutout Diameter4.875" x 1.5"
Depth1.624"
# Mounting Holes4
