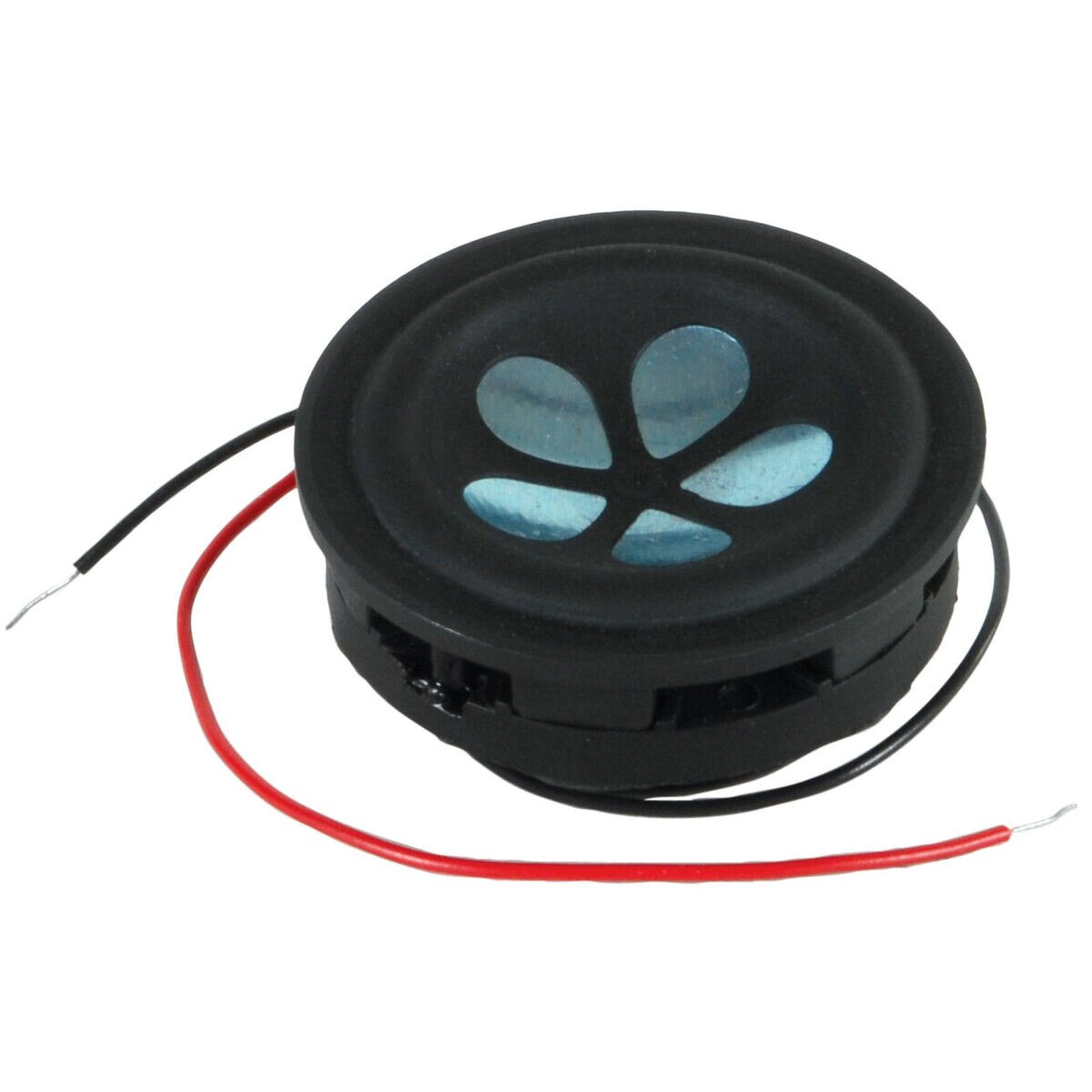

Tang Band W1-1828SA 1" Neodymium Full Range Driver

Tang Band W1-1828SA 1" Neodymium Full Range Driver. Part Number: 264-883 by Tang Band.

Tang Band . W1-1828S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-1828SA 1" Neodymium Full Range Driver
UPC844632078934
Weight0.2
WeightUnitlbs
depth, length0.8
diameter, height, width1.69
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW1-1828S
qtyInStock8
SKU, Part Number264-883
snippetTang Band W1-1828SA 1" Neodymium Full Range Driver. Part Number: 264-883 by Tang Band.
Unit of MeasureEach
Nominal Diameter1"
Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance4?
Frequency Response120 to 20,000Hz
Sensitivity80dB 2.83V/1m
Voice Coil Diameter1.125"
Resonant Frequency (Fs)120Hz
DC Resistance (Re)3.5?
Voice Coil Inductance (Le)0.05mH
Mechanical Q (Qms)1.82
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)0.006ft?
Mechanical Compliance of Suspension (Cms)1.49mm/N
BL Product (BL)2.71T?m
Maximum Linear Excursion (Xmax)1.25mm
Surface Area of Cone (Sd)75cm?
Cone MaterialAluminum
Surround MaterialSantoprene?
Magnet MaterialNeodymium
Overall Outside Diameter1.69"
Baffle Cutout Diameter1.58"
Depth0.8"
Sealed Volume0.005ft?
Sealed F3304Hz
Vented Volume0.01ft?
Vented F3108.9Hz
