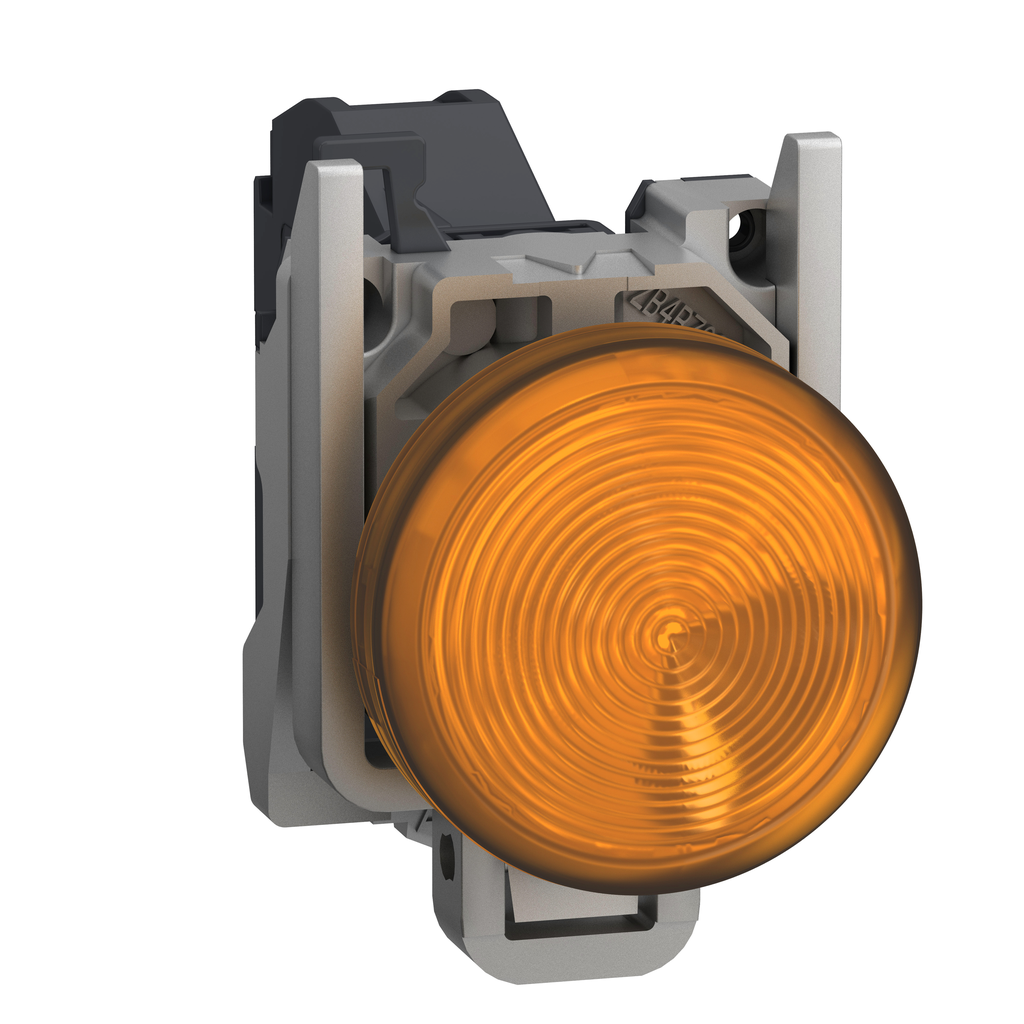

Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...240V | Mayer Electric

SQUARE D . SQDXB4BVBM5GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameComplete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...240V | Mayer Electric
UPC, MPN, SKUSQDXB4BVBM5GEX
Weight0.083
WeightUnitkg
Weight_AttribNet Weight
depth, length69.0
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Complete-pilot-light-Harmony-XB4-ATEX-D-orange-integral-LED-24-240V-SQDXB4BVBM5GEX
jsonUrlData2279a75ab-c364-4a7d-abea-aeea00580607
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
qtyInStock0
tierPrice1114.0
width46.2
width_AttribWidth
Gas Zonezone 1 - 2
Operator Additional Informationwith plain lens
Range Of ProductHarmony XB4
Bezel Materialchromium plated metal
Dust Zonezone 21 - 22
Mounting Diameter22 mm
Product Or Component Typecomplete pilot light
Device Short NameXB4
Fixing Collar Materialzamak
[Us] Rated Supply Voltage24...254 V AC/DC
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
Height30 mm
Service Life100000 h
Signalling Typesteady
Embedding Depth58 mm
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Light Source Colourwhite
Light Sourceintegral LED
Shape Of Signaling Unit Headround
MarkingEx tb IIIC Db || II 2 GD || Ex eb mb IIC Gb
Width46.2 mm
Cap/Operator Or Lens Colourorange
Depth69 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Net Weight0.083 kg
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationsINERIS 04ATEX9003U
Ambient Air Temperature For Operation-20-75 ?C
Ambient Air Temperature For Storage-40-70 ?C
Overvoltage CategoryI IEC 60536
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-18:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-18 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Protective TreatmentTH
Ip Degree Of ProtectionIP65 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXB4BVBM5GEX111 @ $114.00
