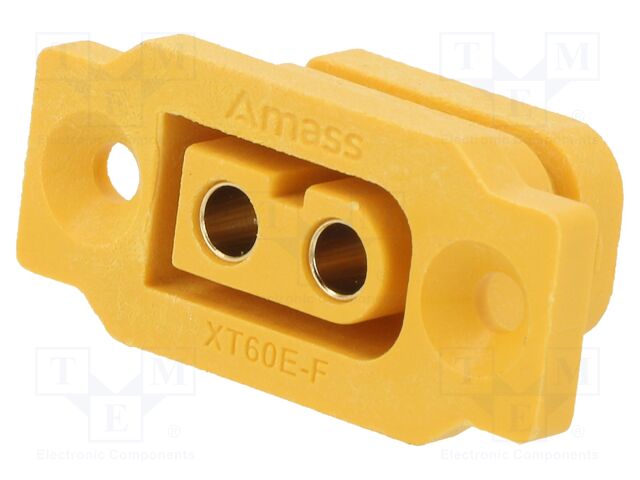

AMASS XT60E-F | Socket; DC supply; XT60; female; PIN: 2; soldering; yellow; 30A; 500V
AMASS XT60E-F | Socket; DC supply; XT60; female; PIN: 2; soldering; yellow; 30A; 500
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | AMASS |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | DC power connectors |
| Extra Product Name | AMASS XT60E-F | Socket; DC supply; XT60; female; PIN: 2; soldering; yellow; 30A; 500V |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 659ec72513f975f151beeb0bfe21d892. |
| jsonUrlData2 | adc0d217ab0093891d7b |
| keywords | AMASS, XT60E-F, Connectors, Power connectors, DC power connectors |
| MPN, SKU | XT60E-F |
| qtyInStock | 0 |
| snippet | AMASS XT60E-F | Socket; DC supply; XT60; female; PIN: 2; soldering; yellow; 30A; 500 |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierPrice1 | 0.98 |
| tierPrice2 | 0.88 |
| tierPrice3 | 0.78 |
| tierPrice4 | 0.69 |
| Connector | socket |
| Type of connector | DC supply |
| Connector series | XT60 |
| Kind of connector | female |
| Number of pins | 2 |
| Mechanical mounting | flange (2 holes), |
| Electrical mounting | soldering |
| Contact plating | gold flash |
| Colour | yellow |
| Current rating | 30A |
| Flammability rating | UL94V-0 |
| Operating temperature | -20...120?C |
| Rated voltage | 500V |
| Spatial orientation | straight |
| Wire size | 12AWG |
| Contact material | brass |
| Mechanical durability | 1000 cycles |
| Body material | polyamide |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| XT60E-F | 1 | 1 | 1 @ $0.98, 5 @ $0.88, 20 @ $0.78, 100 @ $0.69 |
