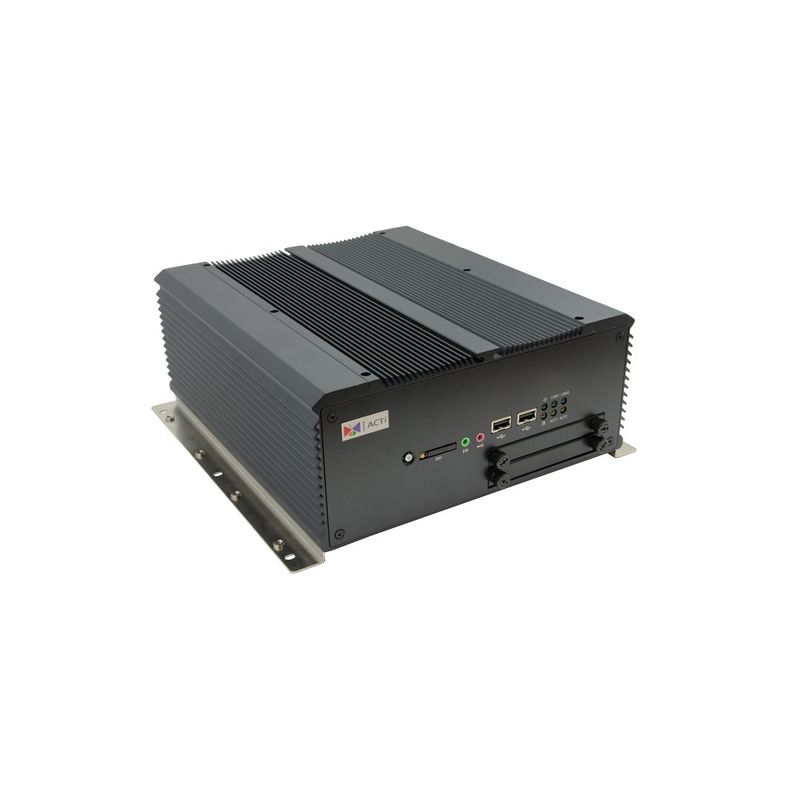

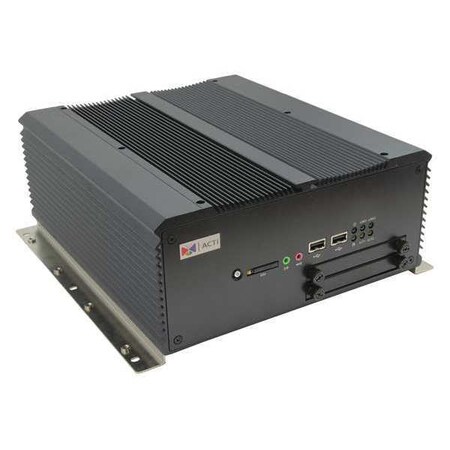

ACTi . MNR-320P
Network Video Recorder, Number of IP Camera Inputs 16, Resolution 1920 x 1080P @50Hz, 1920 x 1080P @60Hz, Recording Time Variable, Depends on Camera Used, Height 2 23/32 in, Width 10 13/32 in, Depth 5 15/64 in, Max. Frames per Second 30 fps, Maximum Number of Hard Drives 1, Power Required 12V DC, Video Export Function USB Flash Drive, Network Interface 10/100/1000 Base-TX Ethernet, Dwell Time Settings 5 to 60 sec, Recording Modes Alarm, Continuous, Motion
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| bhphotovideo.com | ACMNR320P | 1 | 1 | 1 @ $4799.00 | |
| Grainger | 49Z487 | 1 | 1 | ||
 Zoro | G5079369 | 1 | 1 | 1 @ $5300.99 | |
 AmazonTP | B01EAXZK7A | 1 | 1 | 1 @ $5212.24 | |
 AmazonTP | B07RC8PT91 | 1 | 1 | 1 @ $5265.39 | |
| AmazonSC | B01EAXZK7A | 1 | 1 | 1 @ $4992.57 | |
| MNR-320P | 1 | -2 | 1 | 1 @ $4912.00 | |
| MNR-320P | 1 | -2 | 1 | 1 @ $4879.00 | |
 networkcamerastore.com | ACI-MNR-320P | 1 | -2 | 1 | 1 @ $6039.30 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

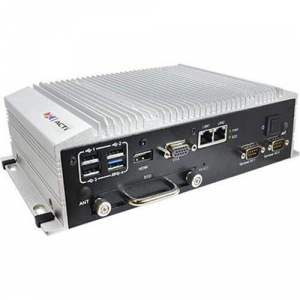

ACTi MNR-320P 16-Channel 1-Bay GPS Transportation Standalone NVR with 4-Port PoE Connectors, with Recording Throughput 192 Mbps, HDMI and VGA Port, e-Map, Audio, DI/DO, DC 9-36V, e-Mark
Brand: ACTi
ACTi MNR-320P 16-Channel 1-Bay GPS Transportation Standalone NVR with 4-port PoE Connectors, with Recording Throughput 192 Mbps, HDMI and VGA Port, e-Map, Audio, DI/DO, DC 9-36V, e-Mark Key Features 16-Channel Synchronized Playback 16-channel free license (16 channels for ACTi and 1 channel for third-party video device) Shock Detection with built-in G-sensor Event trigger, response and notification Workstation, Web Client, Mobile Client Location-based management with e-Map Remote Access, Video Export, Instant Playback Specifications Max. Resolution: Support all ACTi cameras in all resolutions Max. Number of Clients: 1 Local, 3 Remote CPU: Intel Atom E3845 RAM: 4GB Fisheye Dewarping: Yes Digital Zoom: Yes Instant Playback: Instant Playback in live view window PTZ Mode: Mouse PTZ mode to control e-Map video streams PTZ Control: PTZ Control, Speed Control, 32 preset points Joystick: USB based joystick supported Compression: H.265, H.264, MPEG-4, MJPEG Audio Type: 2-way, Mic-in, Line-in, Line-out Ethernet Port: Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector (LAN)/PoE: 4 port(s), Ethernet (10/100 Base-T), RJ-45 connector Synchronized Playback: 4 channels (Local), 16 channels (Remote) Video Export: RAW, AVI, EXE Redundancy Service: Yes, N+1 Server Operating System: Windows 7 Embedded USB: 4-Port USB 2.0 System Drive: mSATA SSD, 64GB Wireless: Built-in GPS, mini-PCIe slot x4 for optional Wireless modules such as Wi-Fi (IEEE 802.11b/g/n), 4G External Storage Interface: USB Local Access: USB joystick, keyboard & mouse Local Display Interface: HDMI x1, VGA x1 EAN: 4710751961999 UPC: 888034008328 Weight: 5.61lb
Details
- Event Status: Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full
- Event Trigger: [NVR]: Disk full, Disk not found, Disk is available, Schedule service start and stop, Video Push start and stop, CPU limit exceeded, [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss, Video Recovery, Network loss and recovery, [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status, Car park status
- Event Response: Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification
- Mobile Client Program: Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Event/time based search and playback, Supported device(s) iPhone, Android device
- Unified Solution: Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
Listing
| Binding | Electronics |
|---|---|
| Product group | Photography |
| Product type | DIGITAL_VIDEO_RECORDER |
| Model | MNR-320P |
| Part number | MNR-320P |
| Items per pack | 1 |
| Label | ACTi |
| Manufacturer | ACTi |
