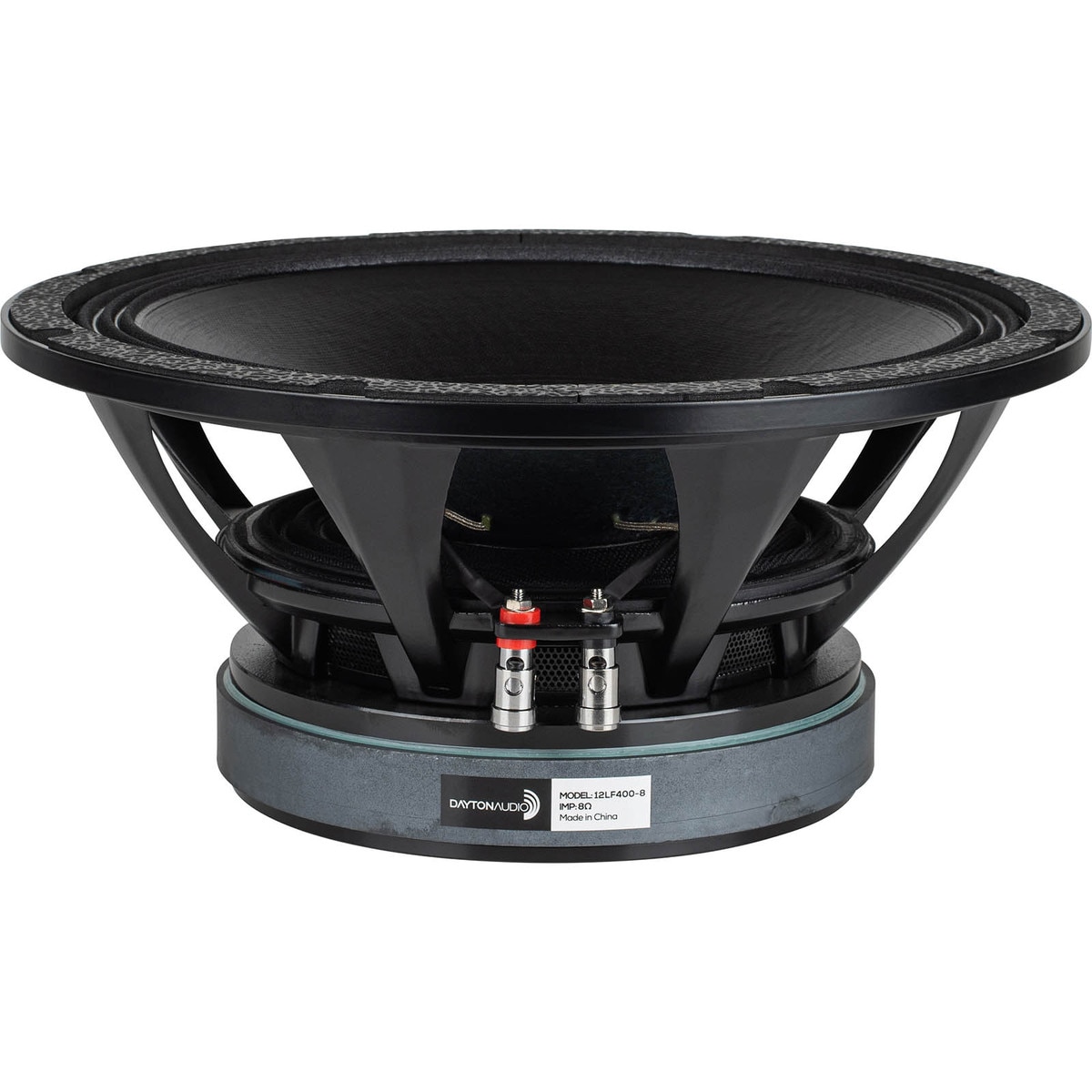

Dayton Audio Pro 12" 8 Ohm Subwoofer Odeum 12LF

Dayton Audio . 12LF400-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio Pro 12" 8 Ohm Subwoofer Odeum 12LF
UPC848791009709
Weight21.75
WeightUnitlbs
depth, length6.0
diameter, height, width12.6
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, Model12LF400-8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-646
tierMinQty24
tierPrice1159.98
tierPrice2149.98
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter12
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8?
Frequency Response30 to 1,500Hz
Sensitivity94.5dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)28Hz
DC Resistance (Re)6.7?
Voice Coil Inductance (Le)1.47mH
Mechanical Q (Qms)5.19
Electromagnetic Q (Qes)0.22
Total Q (Qts)0.21
Compliance Equivalent Volume (Vas)5.22ft?
Mechanical Compliance of Suspension (Cms)0.37mm/N
BL Product (BL)21.8T?m
Diaphragm Mass Inc Airload (Mms)88.3g
Maximum Linear Excursion (Xmax)9.25mm
Surface Area of Cone (Sd)533cm?
Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.6"
Baffle Cutout Diameter11.5"
Depth6"
# Mounting Holes8
Sealed Volume0.9ft?
Sealed F3110Hz
Vented Volume2.5ft?
Vented F341Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-6461-211 @ $159.98, 4 @ $149.98
